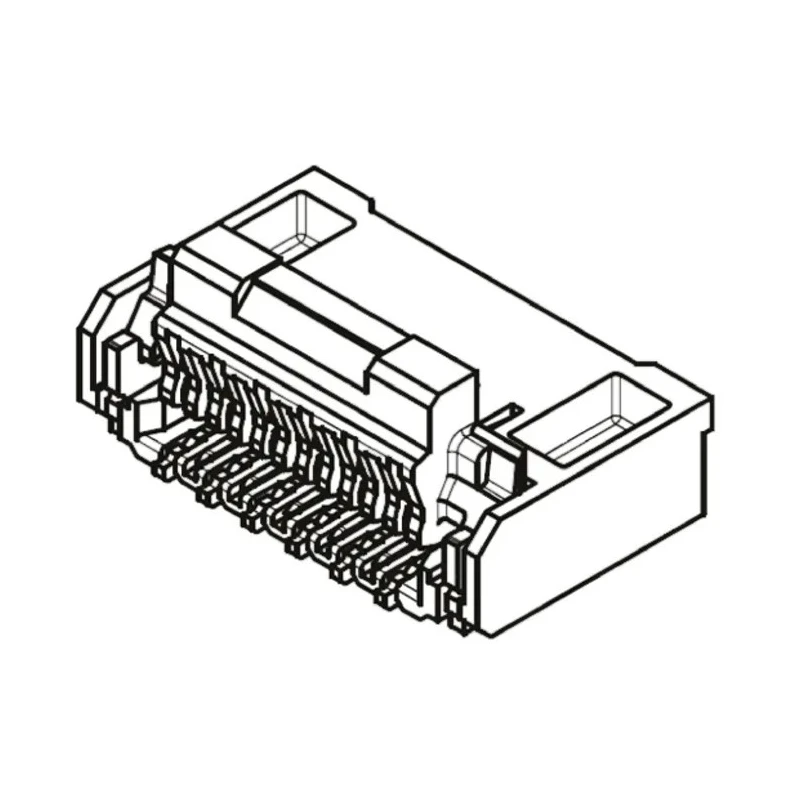

Molex Easy-On 0.25 mm Pitch 41 Way Right Angle Female FPC Connector Solder 503300-4110

Molex 503300-4110 Easy-On 0.25 mm Pitch 41 Way Right Angle Female FPC Connector is designed for precise and robust electrical connections in electronic assemblies. This connector belongs to the Easy-On series, featuring a spring-terminal design that enhances contact reliability, especially under conditions of shock and vibration.

With a very compact 0.25 mm pitch and 41 contacts arranged in a single row, it is ideal for high-density PCB layouts where space saving is critical. The right angle orientation allows the flexible printed circuit (FPC) cable to be routed efficiently beneath the board, facilitating compact device packaging.

The connector’s top contact position, combined with the ZIF (Zero Insertion Force) design, enables easy insertion of standard 0.20 mm thick FPC cables. Its gold over nickel plating provides excellent conductivity and corrosion resistance, while the phosphor bronze contact material ensures stable electrical performance.

The housing is crafted from liquid crystal polymer, offering durability and performance over a wide operating temperature range of -40°C to 80°C. Designed for surface mount applications, it helps reduce assembly time and cost. The locking mechanism provides secure cable retention, preventing accidental disconnections.

These features make the Molex Easy-On 503300-4110 FPC Connector well-suited for various industrial applications including telecommunications equipment, consumer electronics, and other electronic devices requiring reliable, compact interconnections.

This connector features 41 contacts for stable signals. It has a 0.25 mm pitch suitable for compact designs. The right angle orientation optimizes board layout. The Easy-On series includes a front-flip actuator for ease of connection.

Gold over nickel plating ensures excellent corrosion resistance and conductivity. Phosphor bronze contact material enhances electrical performance. The housing is made from durable liquid crystal polymer. The connector supports a current of 200 mA and voltage of 50 V AC.

Operating temperature ranges from -40°C to 80°C for diverse environments. The surface mount design improves assembly efficiency. Locking mechanism ensures secure cable retention. Explore our range of electronic components and connectors on EnvMart to find compatible products for your industrial and electronic design requirements.
