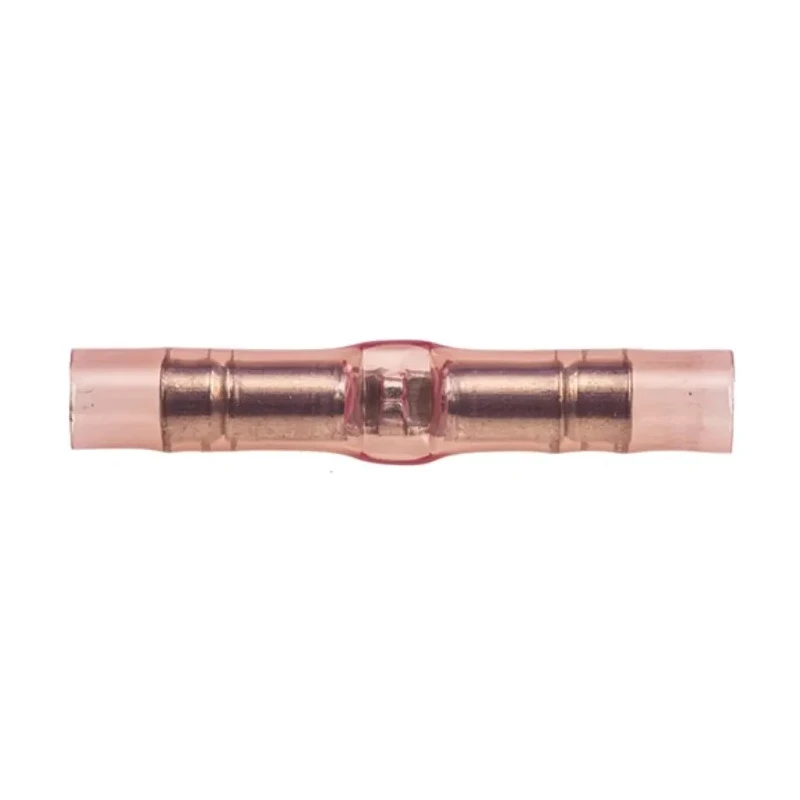

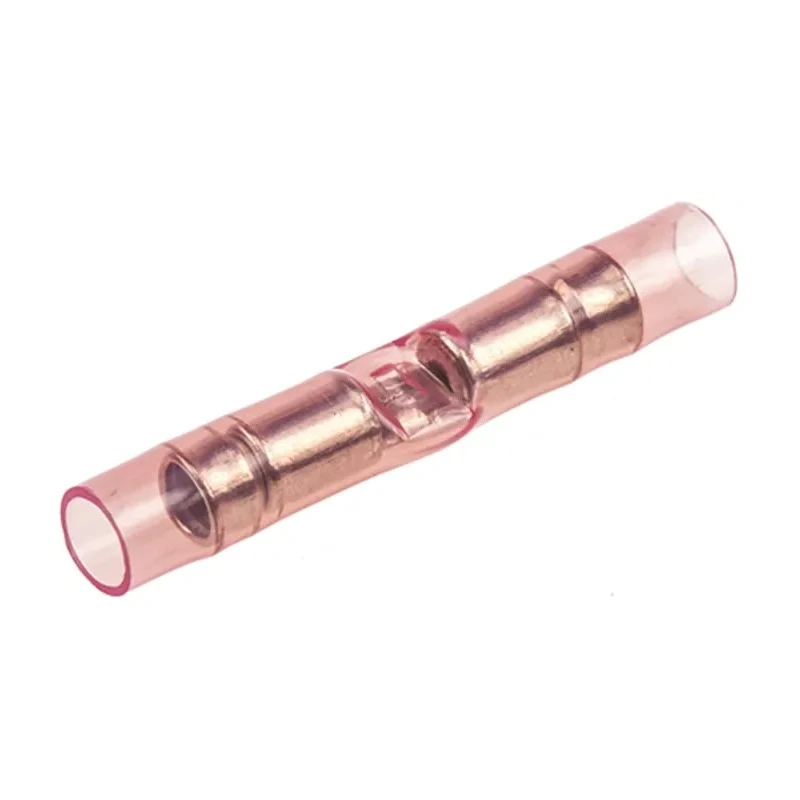

TE Connectivity PIDG Butt Splice Connector, Red Insulated Nylon Sleeve, Copper Tin Plated Contact, 16 AWG 320559
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 3.18mm |
| Brand | TE Connectivity |
| Colour | Red |
| Model | 320559 |
| Insulation | Insulated |
| Overall Length | 32.13mm |
| Contact Material | Copper |
| Series | PIDG |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Splice Type | Butt |
Key Features
- Constructed with high conductivity copper body for optimal electrical performance.
- Copper sleeve enhances wire insulation support and durability after crimping.
- Serrations inside the barrel provide maximum tensile strength and contact reliability.
- Color-coded nylon sleeve allows easy wire size identification and tool selection.
- Meets RoHS compliance ensuring environmental safety and quality standards.
- Suitable for versatile industrial applications including instrumentation, lighting, and aerospace.
- Designed to provide a uniform, reliable crimp for dependable wire connections.
- Overall length of 32.13 mm and diameter of 3.18 mm for precise fitting.
Product Description
TE Connectivity 320559 PIDG Butt Splice Connector is a high-quality, red insulated splice connector featuring a nylon insulation sleeve and tin-plated copper contact designed for wire sizes 16 AWG to 22 AWG. This splice terminal uses PIDG (Pre-Insulated Diamond Grip) technology to ensure uniform reliability in challenging circuit environments through a precision-formed high conductivity copper body and barrel.
The connector's wire barrel includes serrations that enhance mechanical bonding and electrical conductivity, providing maximum contact and tensile strength after crimping. The copper sleeve surrounding the barrel improves wire insulation support, allowing the wire to bend without fraying the insulation or conductor breakage. The red color-coded nylon sleeve offers easy identification of wire size and compatible tooling.
This splice connector meets RoHS standards and is suitable for a wide range of industrial applications such as instrumentation, lighting, power supplies, panel boxes, transportation equipment, motors, aerospace, and appliances. The design allows a uniform crimp pressure to be transmitted evenly for highly reliable and consistent connections in critical wiring systems.
Constructed with high conductivity copper body for optimal electrical performance. Copper sleeve enhances wire insulation support and durability after crimping. Serrations inside the barrel provide maximum tensile strength and contact reliability.
Color-coded nylon sleeve allows easy wire size identification and tool selection. Meets RoHS compliance ensuring environmental safety and quality standards. Suitable for versatile industrial applications including instrumentation, lighting, and aerospace.
Designed to provide a uniform, reliable crimp for dependable wire connections. Overall length of 32.13 mm and diameter of 3.18 mm for precise fitting. Compatible with wire sizes ranging from 22 AWG to 16 AWG. Manufactured in the United States, ensuring premium quality and consistency.
This PIDG butt splice connector is essential for industrial, electrical manufacturing, HVAC installations, laboratory electronics prototyping, and commercial wiring systems requiring durable, reliable wire splicing solutions.
Explore more electrical connectors and Splice Connectors at EnvMart for reliable industrial and commercial wiring component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 16 AWG.
The connector features a copper body with a tin-plated contact and a nylon insulation sleeve.
The overall length of this unit is 32.13 mm, and the diameter is 3.18 mm.
Yes, it meets RoHS compliance, ensuring it adheres to environmental safety and quality standards.
This connector is designed as a butt splice type for reliable wire connections.
It is suitable for various industrial applications including instrumentation, lighting, aerospace, and power supplies.
The precision-formed copper body and serrated barrel provide maximum contact reliability and tensile strength after crimping.
The nylon sleeve is red, allowing for easy identification of wire size and compatible tooling.
This model is manufactured in the United States.
The connector uses nylon for insulation, which enhances wire insulation support after crimping.
The contact material is copper, which is tin plated for enhanced conductivity.
Features such as serrations inside the barrel and a copper sleeve enhance mechanical bonding and electrical conductivity, ensuring reliable connections.
