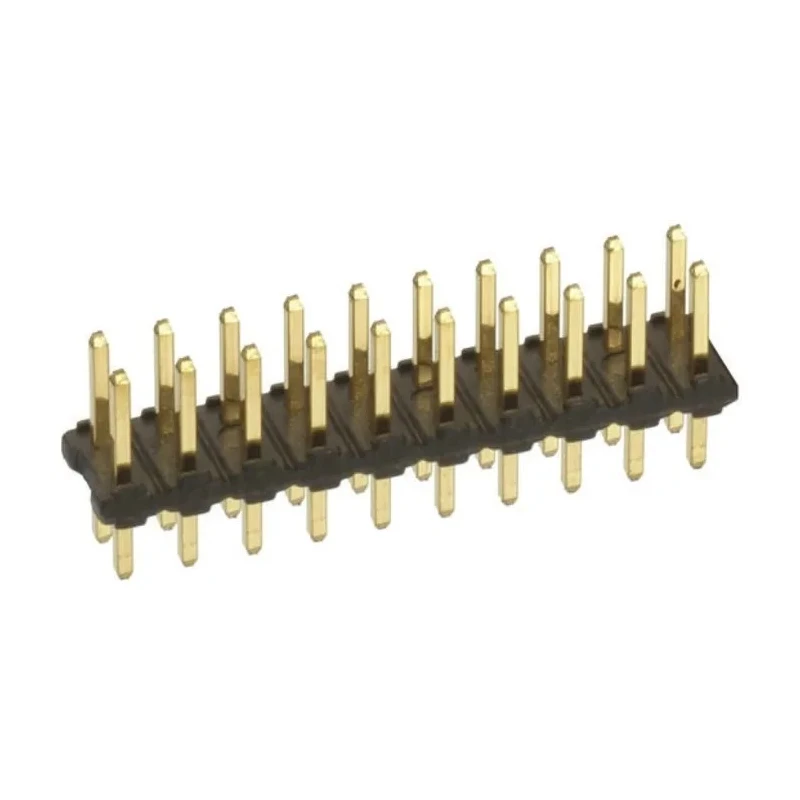

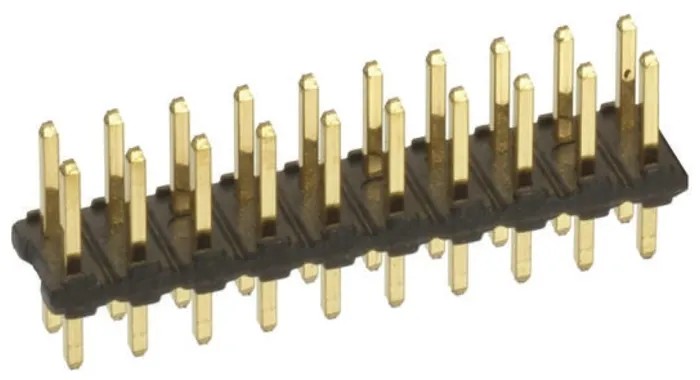

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 10 Contact(s), 2.54 mm 77313-118-10LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 77313-118-10LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.05mm |
| Mating Pin Length | 5.84mm |
Key Features
- The pin header has a 2.54 mm pitch spacing between contacts.
- Housing is made of UL 94 V-0 rated high temperature thermoplastic.
- Contacts are phosphor bronze with gold plating for durability.
- Supports 3A current and 1500V voltage ratings.
- Through hole mount with straight orientation and unshrouded design.
- Operating temperature range from -65°C to 125°C.
- Suitable for board-to-board and wire-to-board connector systems.
- Tail pin length of 3.05 mm and mating pin length of 5.84 mm.
Product Description
Amphenol Communications Solutions presents the Bergstik Series Straight Through Hole Pin Header model 77313-118-10LF, engineered for versatile PCB connector applications. Featuring 10 male contacts arranged in 2 rows, this pin header offers a precise 2.54 mm pitch for reliable electrical connections between boards and wire harnesses.
The housing is constructed from high temperature, UL 94 V-0 rated thermoplastic, capable of withstanding reflow soldering temperatures while providing excellent electrical insulation and mechanical support. The unshrouded design facilitates easy inspection and accessibility.
Contacts are made from phosphor bronze with cost-effective gold plating, ensuring low contact resistance, excellent corrosion resistance, and durability in demanding environments. The component supports a continuous current rating of 3A and a maximum voltage of 1500V, suitable for numerous industrial and commercial electronic applications.
The pin header mounts through hole with straight orientation, featuring a tail pin length of 3.05 mm and mating pin length of 5.84 mm, which guarantees secure mechanical retention and accurate mating with various female connectors such as the Dubox series receptacles, Quickie IDC, and PV series crimp housings.
Operating temperature ranges from -65°C to 125°C, supporting robust performance under extreme temperature conditions. Stand-offs integrated into the housing design aid in solder contamination removal during manufacturing, contributing to assembly reliability.
The 77313-118-10LF pin header can be cut to length, allowing customization for different application requirements. It is ideal for board-to-board and wire-to-board electrical connections in communications, industrial control, and electronic instrumentation sectors.
Manufactured in France, the product meets stringent quality and reliability standards without specific third-party certifications.
Explore more PCB connectors and headers from Amphenol Communications Solutions at EnvMart for your industrial and commercial electronic hardware needs. This Bergstik Series pin header combines performance with economical value for effective circuit board integration.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch spacing between contacts for this pin header is 2.54 mm.
It supports a maximum voltage rating of 1500V.
This pin header has a continuous current rating of 3A.
The housing is made from high temperature thermoplastic, and the contacts are phosphor bronze with gold plating.
The operating temperature range is from -65°C to 125°C.
It features 10 male contacts arranged in 2 rows.
This model uses a through hole mounting type.
The tail pin length is 3.05 mm, and the mating pin length is 5.84 mm.
It is suitable for board-to-board and wire-to-board connector systems.
This model features an unshrouded design, which allows for easy inspection and accessibility.
It is manufactured in France.
The termination type for this model is solder.
