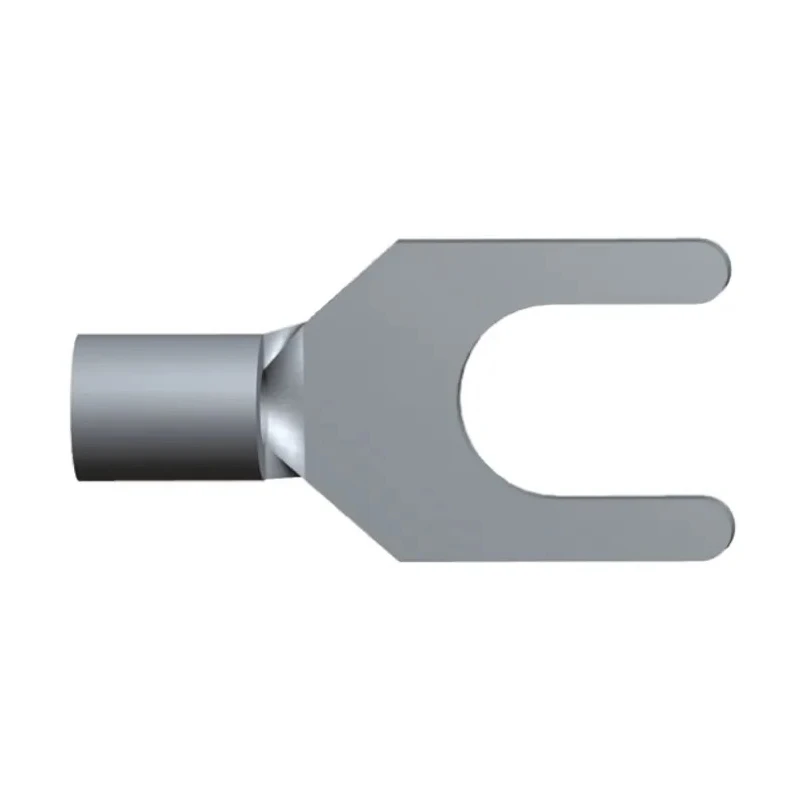

TE Connectivity Uninsulated Crimp Spade Connector 22 AWG to 16 AWG M4 Stud Size 130519

TE Connectivity 130519 Uninsulated Crimp Spade Connector is engineered to provide secure and efficient wire terminations for electronic and electrical applications. This crimp spade connector supports wire sizes ranging from 22 AWG to 16 AWG and features an M4 stud size suitable for various industrial power and control connections.

Manufactured from fine grade copper with a tin plating finish, the connector ensures excellent conductivity and corrosion resistance, enhancing long-term reliability in demanding environments. The closed barrel design with brazed seams offers uniform metal strength around the barrel, minimizing mechanical failure risks.

The bell-shaped barrel entrance augments ease of wire insertion, reducing installation time and improving consistency. The inner barrel surface incorporates dimpled or serrated textures that maximize tensile strength and electrical contact area once crimped, ensuring strong and stable connections.This uninsulated connector is optimal for applications where insulation is not required and is widely used in industrial, laboratory, manufacturing, and electrical maintenance sectors.

The overall length of 15 mm and width of 7.1 mm makes it suitable for compact assemblies without compromising connection strength. The thickness of 0.79 mm contributes to the mechanical robustness, while the tin-plated copper contact material guarantees effective electrical conduction.

Fine grade high conductivity copper construction for superior electrical performance. Tinned plating for enhanced corrosion resistance and durability. Closed barrel with brazed seams for strong, uniform metal strength. Bell-shaped barrel entrance eases wire insertion during installation.

Dimpled or serrated inner barrel surface increases tensile strength and electrical contact area. Designed for solid and stranded wire terminations between 22 AWG and 16 AWG. Uninsulated design suitable for direct-contact electrical connections.

Compact size with an overall length of 15 mm and width of 7.1 mm. Package contains the crimp spade connector supplied in a bag ready for efficient insertion into machinery or assembly lines.

This product is ideal for professional use across electronics manufacturing, power connectors in industrial machinery, and electrical component assembly processes. Explore additional TE Connectivity products and Spade Connectors in EnvMart’s comprehensive electronics components category.
