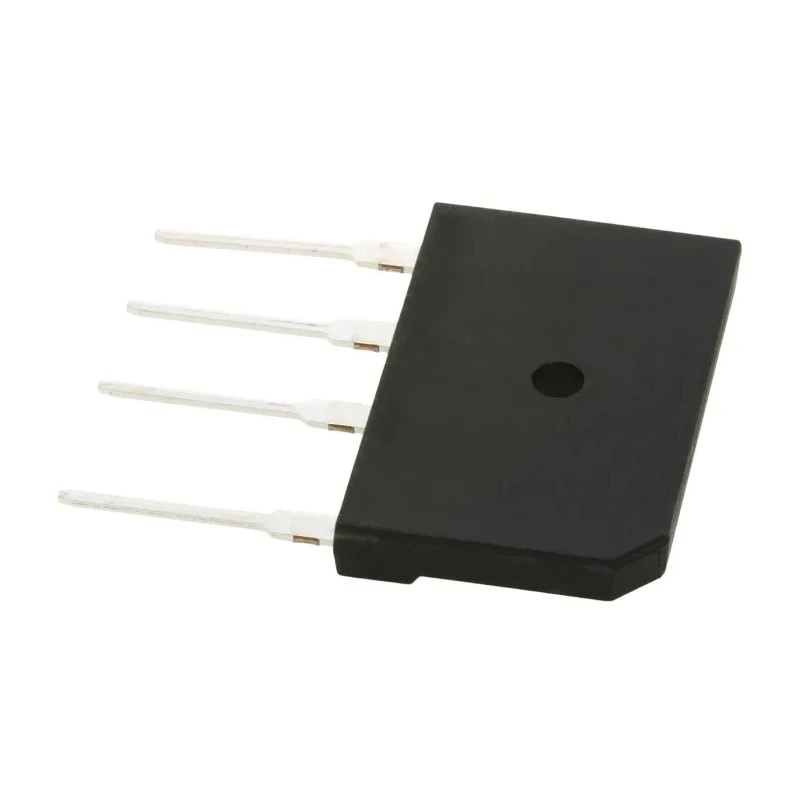

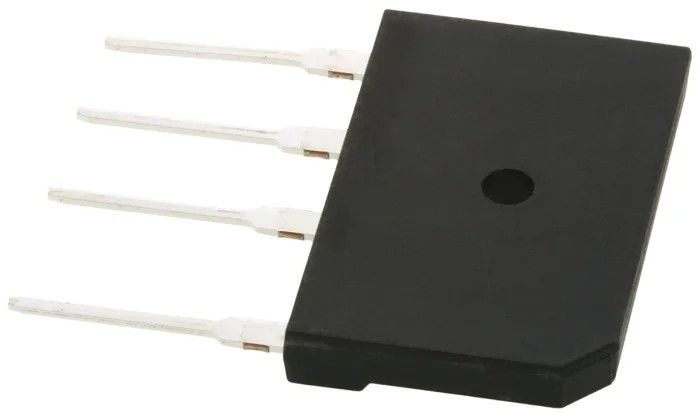

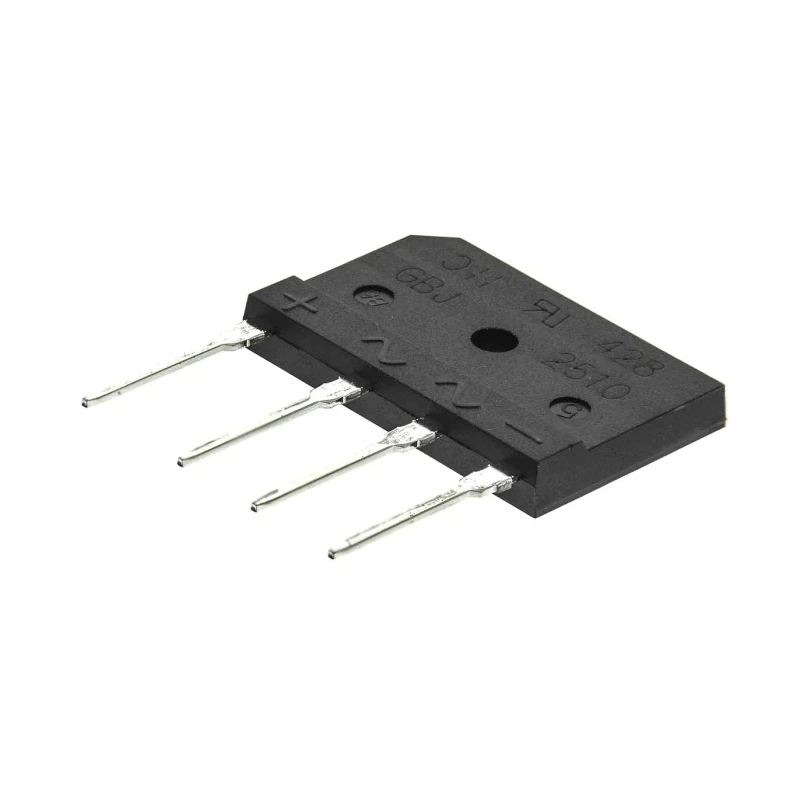

DiodesZetex Bridge Rectifier 1000 V 350 A 4-Pin Single GBJ2510-F

DiodesZetex GBJ2510-F bridge rectifier is a high-performance single-phase semiconductor device designed for industrial and electronic applications. This bridge rectifier is rated for a peak reverse repetitive voltage of 1000 V and can handle high surge currents up to 350 A, making it suitable for power conversion tasks in various manufacturing, power supply, and electronic equipment scenarios.

The device features a through hole mount in a GBJ package with 4 pins, providing secure PCB installation and effective thermal management. Its glass passivated die construction ensures low reverse leakage current and enhanced reliability during operation.

Operating temperature range is from -65°C to 150°C, allowing functionality in diverse environmental conditions typically found in industrial electronic assemblies, HVAC controls, and laboratory equipment power modules.

The compact physical dimensions with a length of 30.3 mm, width of 4.8 mm, and height of 20.3 mm facilitate ease of integration in space-constrained applications. The device offers a peak forward voltage of 1.05 V, optimizing energy efficiency by reducing power loss during rectification.

This bridge rectifier is ideally used to convert alternating current (AC) into direct current (DC) by providing a fixed polarity output regardless of the input polarity, crucial for power supplies and signal processing.

No specific automotive standards apply to this model, and it is manufactured in China, ensuring global manufacturing quality compliance for electronics components. Operates with a continuous forward current of 25 A ensuring stable power delivery.

Glass passivated die construction minimizes leakage current and enhances durability. High dielectric strength withstands voltage surges up to 2500 VRMS for robust performance. Compact size enables flexible design in constrained electronic assemblies.

Reliable through hole mounting supports secure PCB installation in industrial devices. High surge current capacity addresses transient electrical demands typical in power electronics. Wide operating temperature range guarantees function in harsh environments.

This product is a suitable choice for industrial electronics, power supplies, laboratory instrumentation, and HVAC equipment that require dependable AC to DC conversion components.
