| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAV70W-7-F |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAV70W |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 75V |
| Diode Configuration | Common Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 4ns |
| Diodes Inc 30V 300mA, Dual Schottky Diode, 3-Pin SOT-323 SBR0330CW-7Brand | DiodesZetex |

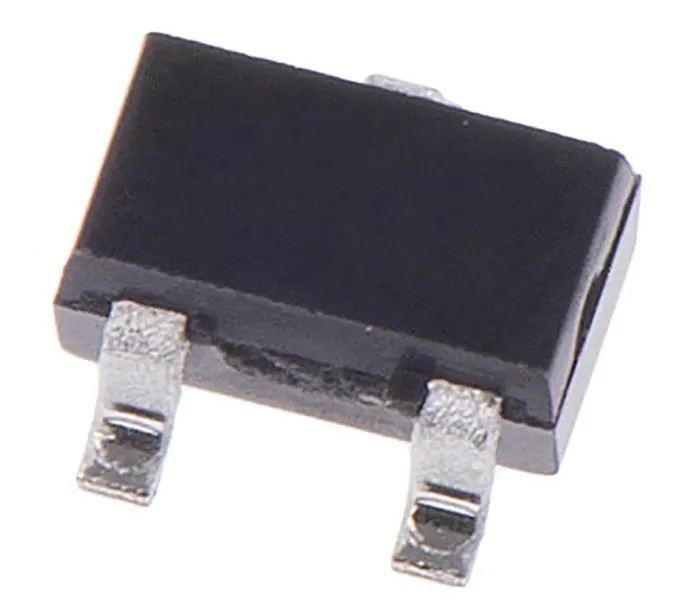

DiodesZetex BAV70W-7-F is a 75 V, 300 mA general purpose diode designed for efficient and reliable small signal switching applications. It features a 3-pin SC-70 surface mount package optimized for compact electronic designs in industrial, automotive, and consumer electronics.
This diode supports a maximum continuous forward current of 300 mA and a peak forward surge current of 1 A, making it suitable for power sensitive circuits. Its low maximum forward voltage of 1.25 V ensures minimal power loss and heat generation during operation.
The device operates effectively over a wide temperature range from -65°C up to 150°C, allowing use in harsh industrial and automotive environments. Its common cathode configuration and general purpose rectifier type support versatile circuit implementations including switching and protection functions.
Featuring a compact footprint with dimensions 2.2 mm length, 1.35 mm width, and 1 mm height, this diode fits well in high-density PCB layouts. With a peak reverse recovery time of just 4 ns, it delivers fast switching performance for high frequency applications.
The diode conforms to automotive standard AEC-Q101, assuring reliability and quality for automotive electronic systems. It is manufactured in China and supplied in tape packaging ready for efficient assembly.
Surface mount SC-70 package with 3 pins. Maximum continuous forward current: 300 mA. Peak reverse voltage: 75 V. Maximum forward voltage: 1.25 V. Operating temperature: -65°C to 150°C. Automotive qualified per AEC-Q101 standard.
Fast switching with 4 ns reverse recovery time.
This DiodesZetex BAV70W-7-F diode is ideal for use in industrial electronics, automotive circuits, consumer device power supplies, and general semiconductor applications requiring reliable small signal diodes.
Explore more high quality semiconductor components and diodes at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
