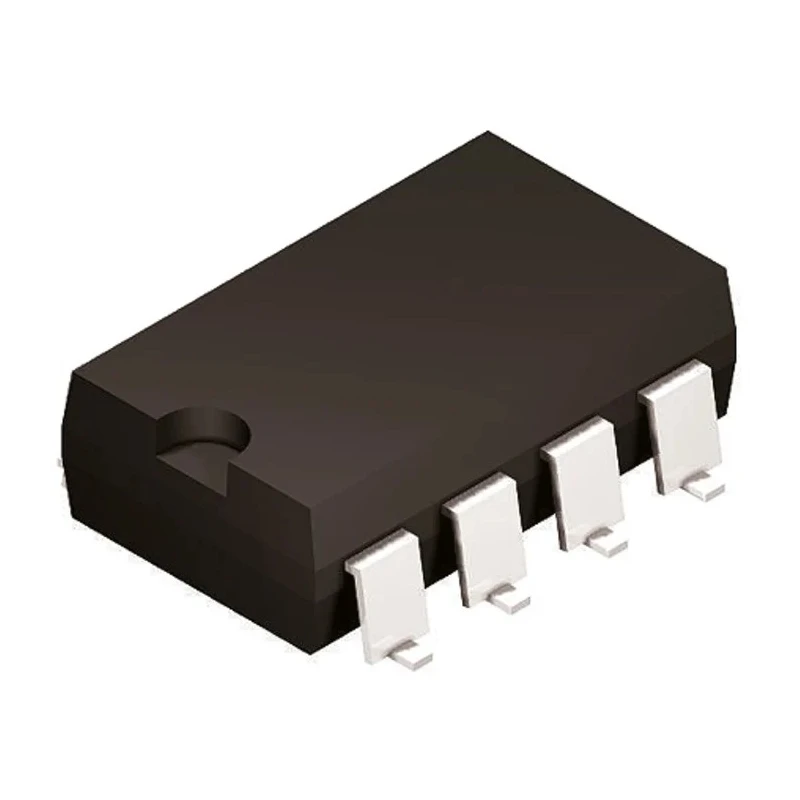

Broadcom DC Input Optocoupler Surface Mount 8-Pin DIP Package HCPL-2211-300E

Broadcom HCPL-2211-300E is a high-performance DC input optocoupler designed for surface mount applications in an 8-pin DIP package. It features a single channel with a low maximum forward voltage of 1.85 V, making it efficient for signal transfer and electrical isolation purposes. This optocoupler provides an isolation voltage rating of 3750 Vrms, ensuring reliable electrical separation between input and output circuitry crucial for industrial, communications, and power supply systems.

Its typical rise time of 30 ns and fall time of 7 ns allow for fast switching performance enabling high-speed data transmission in electronic devices. The device is rated for operation over a broad temperature range from -40°C to 85°C, making it suitable for demanding environments including industrial automation, automotive electronics (non-automotive grade), and instrumentation.

This product complies with recognized standards such as IEC/EN/DIN EN 60747-5-5, UL1577, and CSA, underscoring its safety and reliability in certified applications. Packaging via tape and reel supports efficient automated insertion in manufacturing lines, improving production efficiency and consistency.

The logic gate output makes the HCPL-2211-300E compatible with digital logic circuits, facilitating integration in systems requiring signal isolation, noise reduction, and protection against voltage spikes. Typical applications include industrial control, data acquisition systems, and communication equipment where isolation between control and power circuits is critical.

Features a single channel with DC input current operation. Maximum forward voltage of 1.85 V ensures low power dissipation. Isolation voltage rating of 3750 Vrms for robust signal isolation. Typical rise time of 30 ns and fall time of 7 ns support high-speed switching.

Operates reliably from -40°C to 85°C for wide temperature applications. Complies with IEC/EN/DIN EN 60747-5-5, UL1577, and CSA safety standards. Tape and reel packaging facilitates automated assembly processes. Logic gate output provides compatibility with digital circuits.

This Optocoupler is ideal for industrial electronics, telecommunications, power supply systems, and instrumentation where isolation and signal integrity are essential. Explore more electronic components from Broadcom at EnvMart for reliable and certified solutions.
