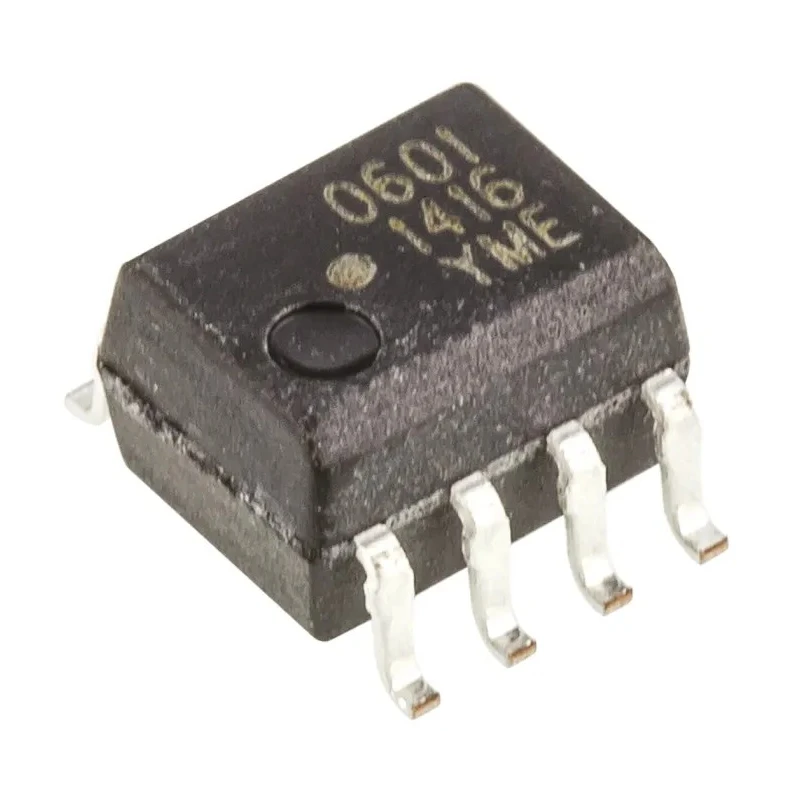

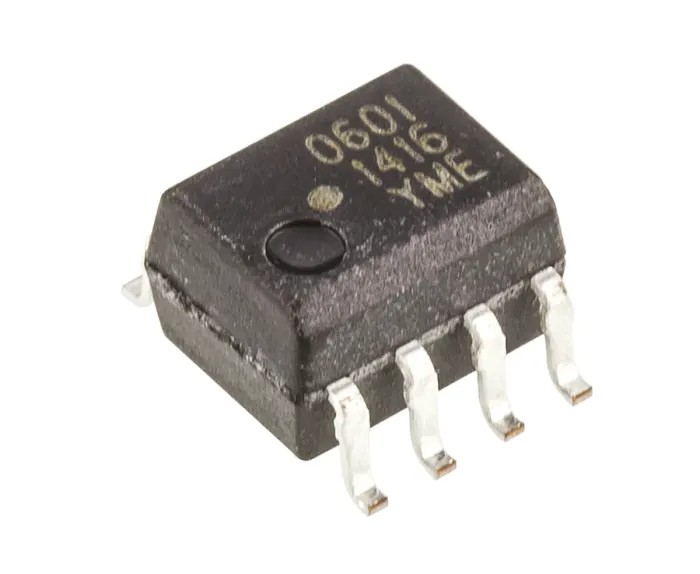

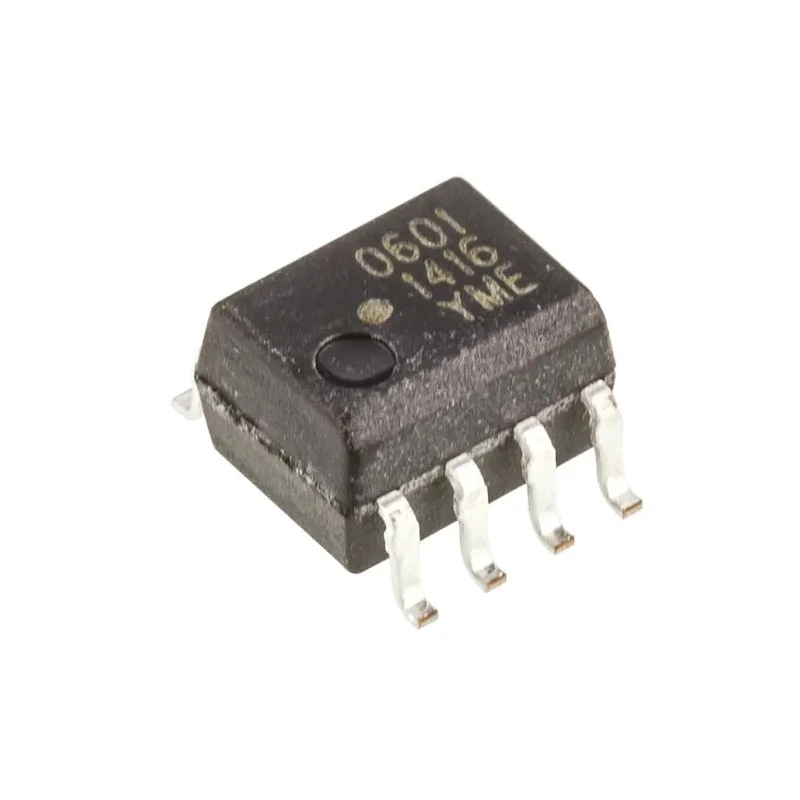

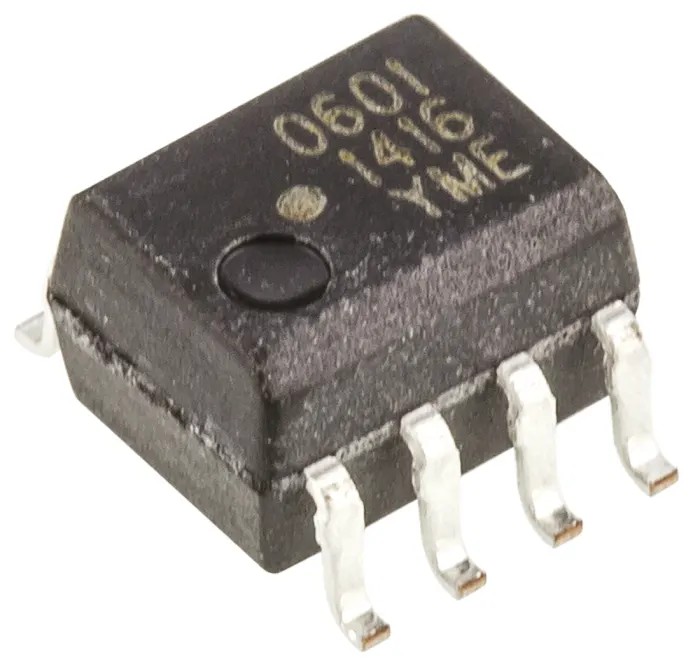

Broadcom DC Input Optocoupler Surface Mount 8-Pin SOIC Package HCPL-0601-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-0601-000E |
| Packaging | Tube |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 80°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -45°C |
| Maximum input current | 150mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, CSA |
| Maximum Forward Voltage | 1.75V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.024μs |
| Typical Fall Time | 0.01μs |
| Automotive Standard | AEC-Q100 |
Key Features
- This optocoupler provides isolation for logic gate communication interfaces.
- It features a maximum forward voltage of 1.75 volts ensuring efficient input signaling.
- The device supports a maximum input current up to 150 milliamps DC.
- Typical rise and fall times are fast at 0.024 microseconds and 0.01 microseconds respectively.
- Operates reliably over a temperature range from -45°C to 80°C.
- Offers robust isolation voltage of 3.75 kVrms for safe electrical separation.
- Complies with UL and CSA standards and meets AEC-Q100 automotive requirements.
- Packaged in a tube format suitable for automated assembly processes.
Product Description
Broadcom HCPL-0601-000E DC Input Optocoupler is a high-performance isolated communication component in an 8-pin SOIC surface mount package designed for industrial power systems, factory automation, and medical equipment.
This device features a maximum forward voltage of 1.75V and a maximum input current rating of 150mA DC. Its typical rise time is 0.024μs, and typical fall time is 0.01μs, enabling high-speed signal isolation with a data rate of 10 Mbit/s.
The optocoupler provides an isolation voltage of 3.75 kVrms, ensuring safe electrical isolation between input and output circuits. It operates reliably over a wide temperature range from -45°C to 80°C, making it suitable for harsh industrial environments.
Compliant with UL, CSA, and AEC-Q100 automotive standards, the HCPL-0601-000E offers robust electrical and environmental performance required in demanding applications. This device is packaged in a tube format, facilitating efficient insertion into automated production lines and improving manufacturing productivity.
Isolated communication logic interface in industrial power systems. High-speed operation with 10 Mbit/s data rate. DC input current with max 150mA rating. Wide operating temperature range from -45°C to 80°C. High isolation voltage of 3.75 kVrms.
Compliant with UL, CSA, and AEC-Q100 standards. Surface mount SOIC 8-pin package. Packaged in tubes for automated assembly. Ideal for industrial automation, power supply monitoring, medical instrumentation, and automotive electronics applications.
Explore the full range of Optocouplers and related electronic components at EnvMart to find solutions tailored to your industrial automation and signal isolation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 150 milliamps DC.
It operates reliably over a temperature range from -45°C to 80°C.
This optocoupler provides a robust isolation voltage of 3.75 kVrms.
The typical rise time is 0.024 microseconds and the typical fall time is 0.01 microseconds.
It complies with UL, CSA, and AEC-Q100 automotive standards.
It is packaged in an 8-pin SOIC surface mount format.
The maximum forward voltage is 1.75 volts.
It supports a high-speed data rate of 10 Mbit/s.
It is packaged in a tube format suitable for automated assembly processes.
It supports DC input current.
This optocoupler has one channel.
It belongs to the HCPL series.
