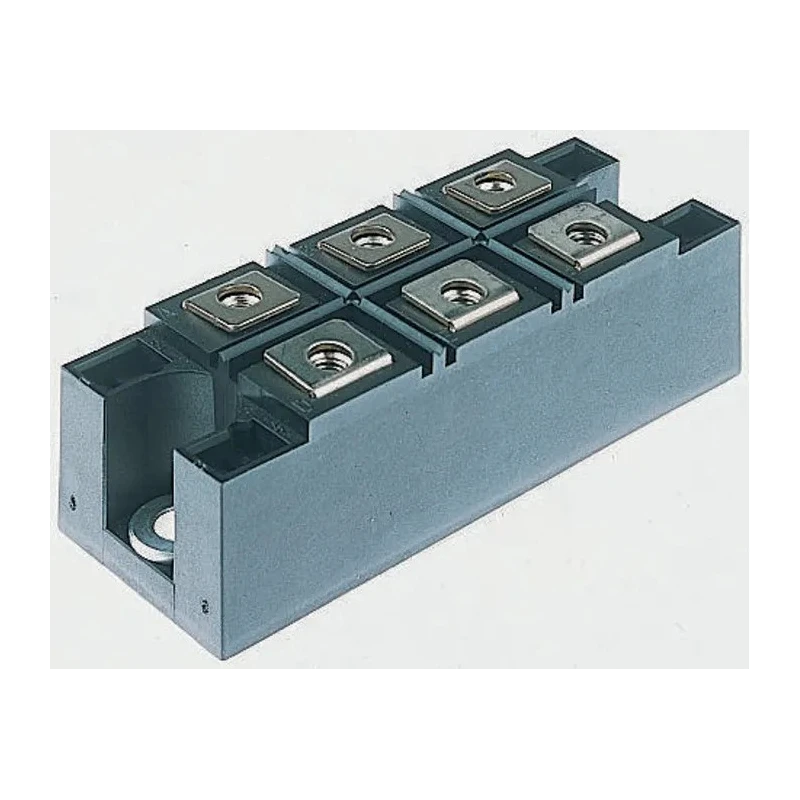

Vishay Bridge Rectifier Module 800 V 500 A 6-Pin Single VS-60MT80KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-60MT80KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-60MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 75A |
| Peak Forward Voltage Vf | 1.55V |
| Vishay Bridge Rectifier Module, 1200 V 440 A, 6-Pin SingleBrand | Vishay |
Key Features
- Rated for peak reverse repetitive voltage of 800 V for reliable performance.
- Maximum forward current rating of 75 A supports heavy power loads.
- Peak non-repetitive forward surge current is 500 A ensuring tolerance to high transient currents.
- Constructed in industry-standard INT-A-PAK package ensuring compatibility and ease of installation.
- Designed for panel mounting with excellent thermal conductivity and electrically insulated casing.
- Operating temperature range from -40°C to 150°C suitable for rugged industrial environments.
- Compact dimensions of 94 mm length, 35 mm width, and 30 mm height allow space-efficient integration.
- Includes six-pin configuration for three-phase bridge rectification applications.
Product Description
Vishay VS-60MT80KPBF Bridge Rectifier Module is a three-phase rectifier designed to convert alternating current (AC) into direct current (DC) with high efficiency and reliability. Rated for a peak reverse repetitive voltage of 800 V and a maximum forward current of 75 A, this module is well-suited for demanding industrial and power electronics applications requiring robust DC power supply.
The component utilizes an industry-standard INT-A-PAK package, providing a high thermal conductivity case that is electrically insulated for safety and reliability. Its compact size, measuring 94 mm in length, 35 mm in width, and 30 mm in height, facilitates easy mounting on panels or power modules, optimizing space without compromising performance.
The module's peak non-repetitive forward surge current rating of 500 A allows it to handle transient current spikes effectively, safeguarding connected systems. Operating temperature specifications range from -40°C to 150°C, permitting use in harsh environments commonly found in industrial, manufacturing, and automation sectors.
Featuring six pins configured for single bridge operation in three-phase systems, this rectifier ensures seamless conversion with low forward voltage drop (1.55 V) and minimal reverse current leakage (10 mA), contributing to energy-efficient power management.
Reliable full-wave rectification for three-phase systems. Robust design suited for industrial, HVAC, manufacturing, and power supply use cases. High surge current capacity with excellent thermal management. Compact and standard package for easy installation and replacement.
Wide temperature operating range ensures versatility and durability. Electrically insulated case enhances safety in high-voltage applications. Minimal electrical losses reduce operating costs and improve efficiency. Compatible with power modules and industrial automation setups.
Facilitates reliable DC power output for motors, drives, and power electronics. Explore the broad Vishay range on EnvMart for complementary semiconductors and power components tailored to industrial and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-60MT80KPBF is rated for a peak reverse repetitive voltage of 800 V, ensuring reliable performance in power applications.
This model has a maximum forward current rating of 75 A, making it suitable for heavy power loads.
The peak non-repetitive forward surge current rating is 500 A, allowing it to handle high transient currents effectively.
The dimensions of this module are 94 mm in length, 35 mm in width, and 30 mm in height, allowing for space-efficient integration.
It operates within a temperature range of -40°C to 150°C, suitable for rugged industrial environments.
This model features a six-pin configuration designed for three-phase bridge rectification applications.
It is designed for panel mounting, ensuring ease of installation in various setups.
The module is constructed in an industry-standard INT-A-PAK package, which provides high thermal conductivity and electrical insulation.
The peak forward voltage drop is rated at 1.55 V, contributing to its energy efficiency.
The peak reverse current is rated at 10 mA, indicating minimal reverse current leakage.
It is suitable for industrial, HVAC, manufacturing, and power supply applications requiring reliable DC power output.
The country of origin for this bridge rectifier module is India.
