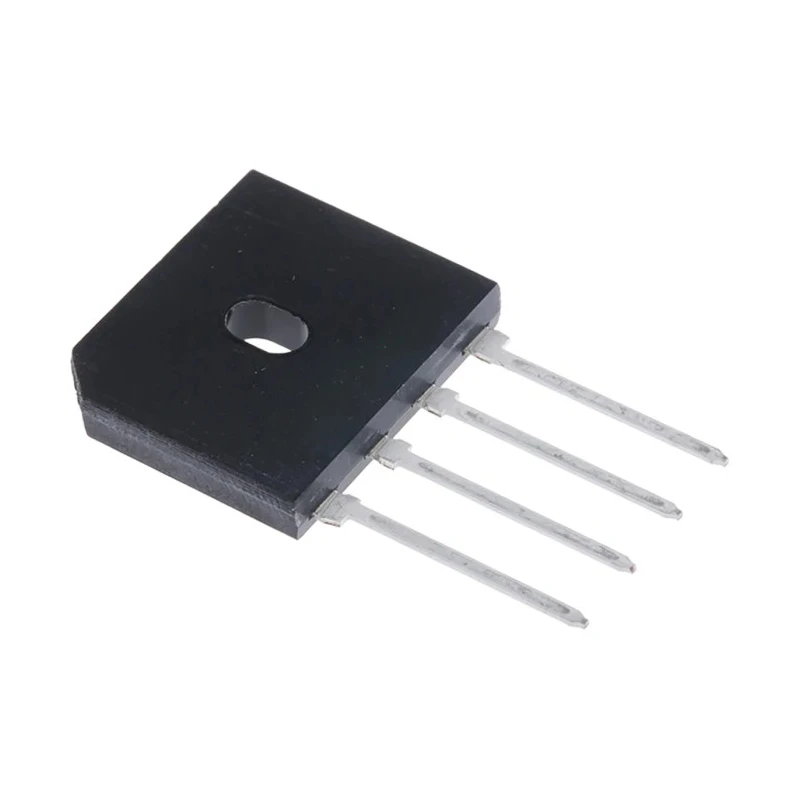

Vishay Bridge Rectifier 200 V 200 A 4-Pin Single GBU8D-E3/45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU8D-E3/45 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU8 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Forward Current If | 8A |
| Peak Forward Voltage Vf | 1V |
| HY Electronic Corp Bridge Rectifier, 6A, 600V, 4-PinBrand | HY Electronic Corp |
Key Features
- The bridge rectifier converts AC input to DC output for full-wave rectification applications.
- Rated for 200 V peak reverse repetitive voltage and 200 A peak forward surge current.
- Features glass passivated junction for high surge current capability and increased reliability.
- Designed for PCB through-hole mounting with soldering pins for secure installation.
- Operates within a temperature range of -55°C to 150°C ensuring durability in harsh environments.
- Compact dimensions of 22.3mm length, 18.8mm height, and 3.56mm width optimize space in electronic assemblies.
- Typical forward voltage drop is 1 V, with very low peak reverse current of 5 μA.
- Ideal for industrial, commercial, and laboratory electronic applications requiring efficient DC power conversion.
Product Description
Vishay GBU8D-E3/45 Bridge Rectifier 200 V 200 A 4-Pin Single is a high-performance semiconductor device designed for reliable full-wave rectification. This bridge rectifier features a glass passivated junction and a compact through-hole GBU package optimized for printed circuit board (PCB) mounting. Its 4-pin configuration and single-phase design allow easy integration into electronic circuits requiring AC to DC conversion with consistent polarity output regardless of input polarity.
Engineered to withstand a peak reverse repetitive voltage of 200 V and forward current of 8 A, this device also supports a peak non-repetitive forward surge current of 200 A, ensuring robustness under transient surge conditions. The operating temperature range from -55°C to 150°C makes it suitable for use in industrial and commercial equipment exposed to harsh environments.
The compact dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width enable space-saving designs in power supply modules and circuit protection systems. A typical forward voltage drop of 1 V minimizes power losses, contributing to overall energy efficiency in electronic assemblies. The device exhibits excellent electrical isolation and high dielectric strength up to 1500 Vrms for enhanced safety.
This bridge rectifier from Vishay is ideal for applications such as power supplies, motor control, HVAC systems, and laboratory instrumentation requiring efficient and reliable DC power conversion. Its through-hole mounting design with soldering pins ensures secure and durable installation, while the absence of automotive standards indicates primary targeting of general industrial use.
The bridge rectifier converts AC input to DC output for full-wave rectification applications. Compact 4-pin through-hole GBU package for easy PCB mounting. Excellent surge current capability and thermal performance for demanding industrial use.
Wide operating temperature range from -55°C to 150°C ensures reliability. Low forward voltage drop of 1 V reduces power loss. High dielectric strength of 1500 Vrms for electrical safety. Compact dimensions for flexible circuit design integration.
Glass passivated junction enhances device durability and stability. Explore more Vishay semiconductor components and Bridge Rectifiers on EnvMart for high-quality electronic solutions tailored to diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage rating of 200 V.
It can handle a peak non-repetitive forward surge current of 200 A.
The typical forward voltage drop is 1 V.
The dimensions are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
It operates within a temperature range of -55°C to 150°C.
This bridge rectifier features a 4-pin configuration.
It is designed for through-hole mounting.
The peak reverse current is 5 μA.
It is suitable for applications such as power supplies, motor control, HVAC systems, and laboratory instrumentation.
The package type is GBU.
It has a single-phase configuration.
The country of origin for this bridge rectifier is India.
