| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 2mm |
| Model | BAS385-TR |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | BAS385 |
| Maximum Operating Temperature | 125°C |
| Package Type | MicroMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2.3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 240mV |

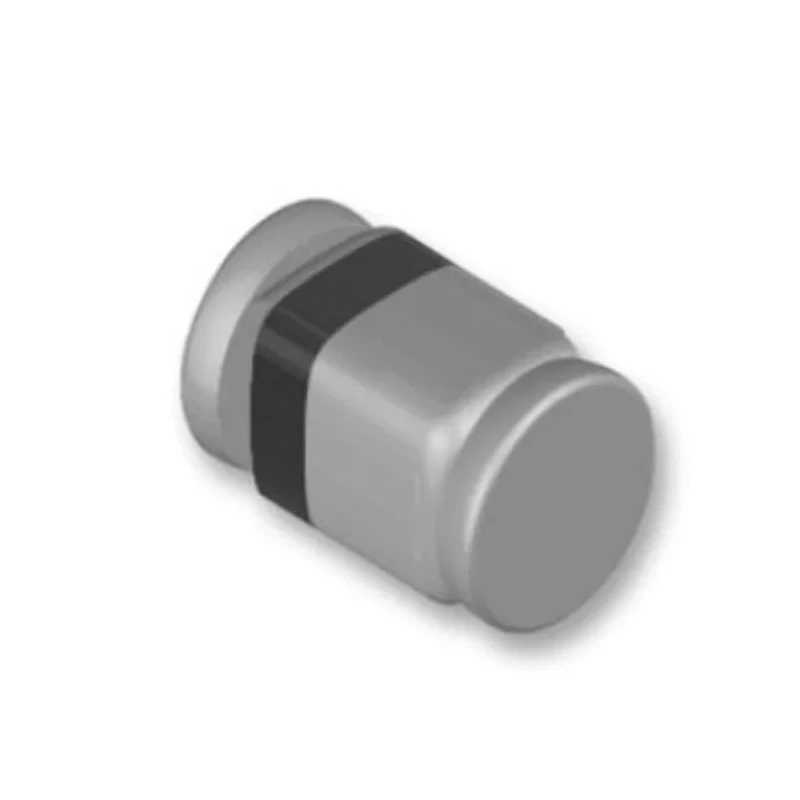

Vishay BAS385-TR is a reliable surface mount Schottky diode in a MicroMELF package rated for 30 V and 200 mA continuous forward current. It provides extremely low forward voltage drop and very fast switching capabilities, making it suitable for applications requiring efficient power handling and minimal switching losses.
This diode supports a peak reverse repetitive voltage of 30 V and a peak non-repetitive forward surge current of 5 A, suitable for transient conditions in industrial electronic circuits. The diode's compact 2 mm length by 1.2 mm width and height dimensions allow for high-density PCB layouts.
The device operates effectively between -65°C and +125°C, making it compliant with the automotive AEC-Q101 standard, thus suitable for automotive and harsh environment applications. Its small signal Schottky rectifier design ensures energy-efficient performance in power regulation, switching power supplies, and mobile electronics.
This Schottky diode finds industrial use in power rectification, automotive electronics, switching circuits, and signal demodulation circuits. Its fast switching speed and low forward voltage reduce power dissipation and heat generation in high-frequency circuits.
Features a MicroMELF package for surface mounting. Maximum continuous forward current of 200 mA. Peak reverse repetitive voltage rating of 30 V ensures reliable operation. Fast switching and low power loss for efficient performance.
Compact dimensions: length 2 mm, width 1.2 mm, height 1.2 mm. Operating temperature range from -65°C to +125°C. Compliant with automotive standard AEC-Q101. Low maximum forward voltage of 240 mV for energy-efficient circuits.
Peak non-repetitive forward surge current of 5 A. Ideal for industrial, automotive, and general electronic applications. Explore more Vishay Semiconductor products and efficient small signal diodes on EnvMart.
