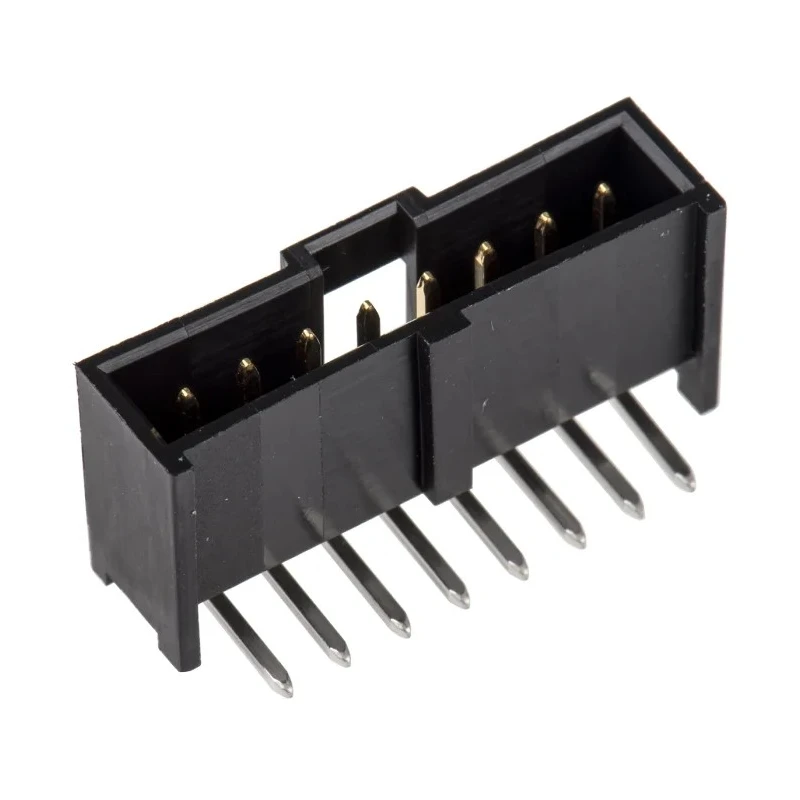

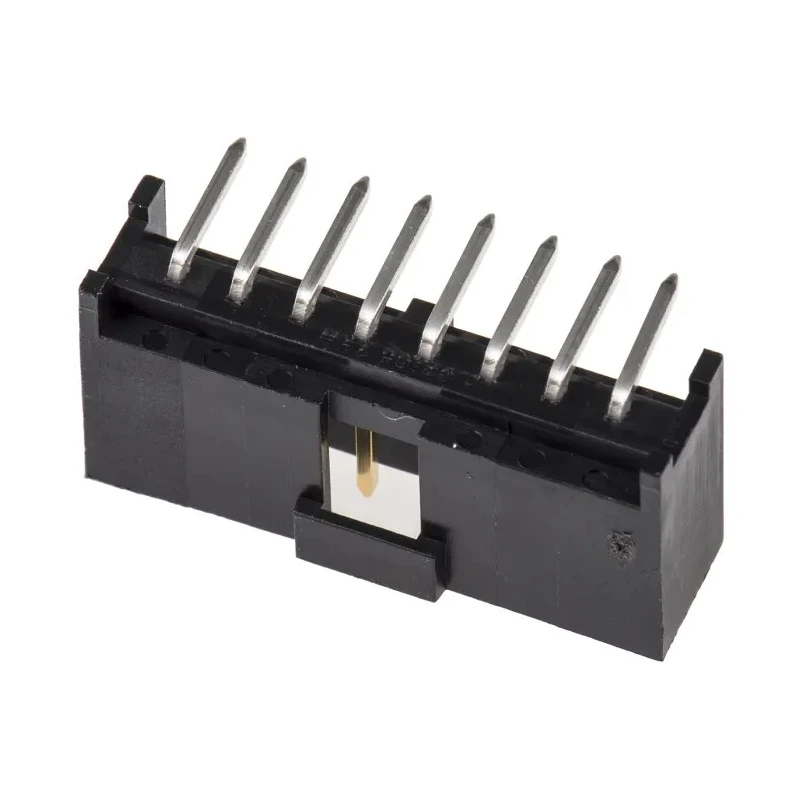

Molex C-Grid III Series Right Angle Through Hole PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded 90136-2208
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Provides 8 male contacts arranged in a single row with 2.54 mm pitch.
- Constructed with polyester housing and brass contacts with gold plating for reliability.
- Right angle orientation ensures secure and space-saving mounting on PCBs.
- Rated for 3A current and 350V voltage for general electronic circuit protection.
- Operating temperature range from -55°C to 125°C supports varied industrial conditions.
- Through hole mount type with 2.9 mm tail pin length and 6.75 mm mating pin length.
- Shrouded design offers additional mechanical and electrical protection.
- Termination type is solder compatible for robust installation.
Product Description
Molex 90136-2208 C-Grid III Series Right Angle Through Hole PCB Header is a high-quality electronic component designed for secure wire-to-board connections. This PCB header features 8 male contacts arranged in a single row with a precise 2.54 mm pitch, making it suitable for various circuit board applications.
The durable polyester housing provides robust protection, while the brass contact material with gold plating ensures excellent conductivity and corrosion resistance. Its right angle orientation facilitates compact PCB layouts and reliable locking with compatible housings.
Rated for a maximum current of 3A and voltage of 350V, this header is engineered to withstand operating temperatures from -55°C to 125°C, making it suitable for demanding industrial and electronic assembly environments. The through hole mount type with specific tail and mating pin lengths optimizes soldering and mechanical stability.
The shrouded design adds an extra layer of protection against accidental contact and mechanical damage, promoting long-term reliability. Its solder termination ensures strong, consistent connections for manufacturing efficiency.
This PCB header is widely used in electronics manufacturing, industrial control systems, and other professional applications requiring quality wire-to-board connection solutions. It supports manufacturing workflows by providing standardized and reliable interconnections.
Provides 8 male contacts arranged in a single row with 2.54 mm pitch. Constructed with polyester housing and brass contacts with gold plating for reliability. Right angle orientation ensures secure and space-saving mounting on PCBs.
Rated for 3A current and 350V voltage for general electronic circuit protection. Operating temperature range from -55°C to 125°C supports varied industrial conditions. Through hole mount type with 2.9 mm tail pin length and 6.75 mm mating pin length.
Shrouded design offers additional mechanical and electrical protection. Termination type is solder compatible for robust installation. Meets design needs for electronics manufacturing and assembly applications. Explore more electronics components and PCB Headers in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A.
It has a voltage rating of 350V.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of polyester, and the contacts are brass with gold plating.
It can operate within a temperature range of -55°C to 125°C.
This unit utilizes a through hole mount type.
The tail pin length is 2.9 mm, and the mating pin length is 6.75 mm.
The contacts are arranged in a right angle orientation.
This model features a shrouded design for additional protection.
It supports solder termination for robust installation.
It has a total of 8 male contacts arranged in a single row.
It is suitable for various circuit board applications, including electronics manufacturing and industrial control systems.
