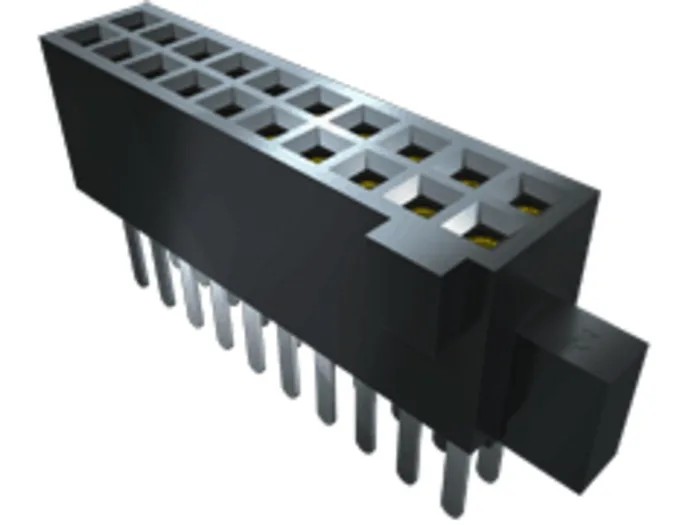

Samtec SFM Series Straight Surface PCB Socket 20-Contact 2 Row 1.27 mm Pitch 3.2A 250V SFM-110-02-S-D-LC

Samtec SFM-110-02-S-D-LC is a high-reliability straight surface PCB socket, part of the SFM Series, engineered for demanding electronics applications requiring a 20-contact, 2-row configuration with a 1.27 mm pitch.

Constructed from Liquid Crystal Polymer, the housing ensures excellent mechanical stability and resistance to environmental factors, while the bronze female contacts with gold or tin plating over nickel provide superior electrical conductivity and corrosion resistance.

The socket supports a current capacity of 3.2 amperes and a voltage rating of 250 volts, making it suitable for various industrial and commercial electronic devices. Its operating temperature range from -55°C to 125°C allows reliable performance under extreme conditions.

The connector features a 12 mm stacking height and supports cable and board-to-board connector systems. The Tiger Eye™ contact system contributes to extended product life and consistent contact reliability, ensuring optimal signal integrity.

Termination options include both through-hole and surface mount soldering techniques, augmented by special features such as screw down and solder nail variants to meet rugged usage environments. This makes the SFM-110-02-S-D-LC socket versatile for diverse PCB connector needs.

Common applications include industrial electronics, telecommunications, instrumentation, and other scenarios requiring robust and precise board-to-board interconnects. Supports a current rating of 3.2 amperes for reliable electrical performance.

Features a Liquid Crystal Polymer housing for enhanced durability and stability. Utilizes Tiger Eye™ contact system with bronze female contacts plated in gold or tin over nickel. Operates within a broad temperature range from -55°C to 125°C.

Designed with a stacking height of 12 mm and supports 250 volts voltage rating. Includes screw down and solder nail options for rugged terminations. Offers through-hole and surface mount termination types suitable for diverse PCB applications.

Ideal for polarized single and double row multi-finger connector systems up to 100 pins. Explore the Electronics Components category on EnvMart for additional PCB Sockets and connectors suitable for your industrial and laboratory requirements.
