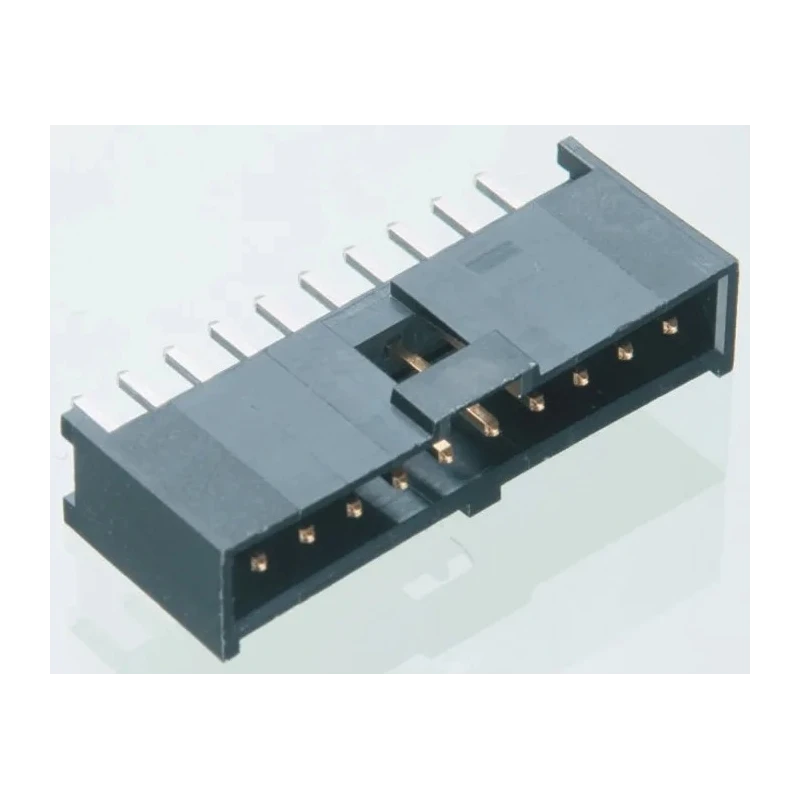

Molex C-Grid III Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-2304

Molex 90136-2304 C-Grid III Series Right Angle Through Hole PCB Header is engineered for robust printed circuit board connections with high reliability and easy integration. Featuring a 4-contact configuration on a 2.54 mm pitch with one row, this shrouded header ensures enhanced protection and safety against accidental shorting, making it ideal for sensitive electronic assemblies.

Constructed with polyester housing for mechanical strength and stability, the header incorporates brass contacts with gold plating to provide excellent electrical conductivity and resistance to corrosion over long operational lifetimes in various industrial environments.

The right-angle orientation allows for space-efficient PCB designs and easier routing of wiring or connectors in confined manufacturing settings. Its through-hole mount type facilitates secure solder connections, ensuring durability under mechanical stress and vibration typical in industrial electronic equipment.

Rated for 3A current and 350V voltage, the header supports a range of electronic applications including industrial controllers, instrumentation, power supplies, and communication devices. It functions reliably across a wide temperature range of -55°C to 125°C, suitable for both low-temperature and high-temperature operational demands.

The precise pin lengths - 2.9 mm tail pins and 6.75 mm mating pins - ensure proper mating with compatible connectors and sockets, maintaining signal integrity and mechanical alignment.

The 2.54 mm pitch ensures compatibility with standard PCB layouts. Right angle orientation provides efficient routing in tight spaces. Shrouded housing made of durable polyester prevents accidental contact. Gold-plated brass contacts offer excellent conductivity and corrosion resistance.

Supports current rating of 3A with a voltage rating up to 350V. Designed for through-hole mounting for secure mechanical and electrical connection. Solder termination type simplifies assembly and ensures reliable joints.

Operating temperature range from -55°C to 125°C suits diverse environments. Tail pins measure 2.9 mm and mating pins 6.75 mm for precise fit. Single row construction with 4 contacts supports modest circuit density.

This PCB Header is widely applicable in electronic manufacturing, industrial automation, telecommunications, and embedded systems, providing dependable wire-to-board connection solutions to enhance product performance.
