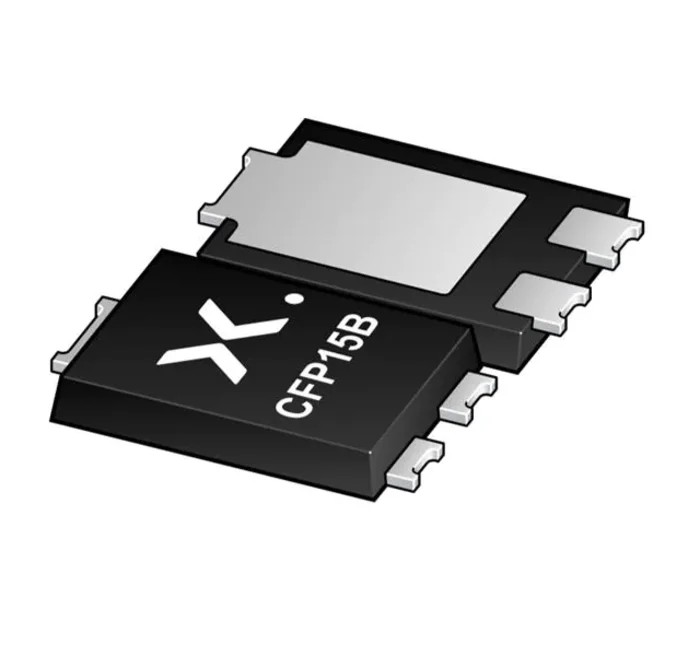

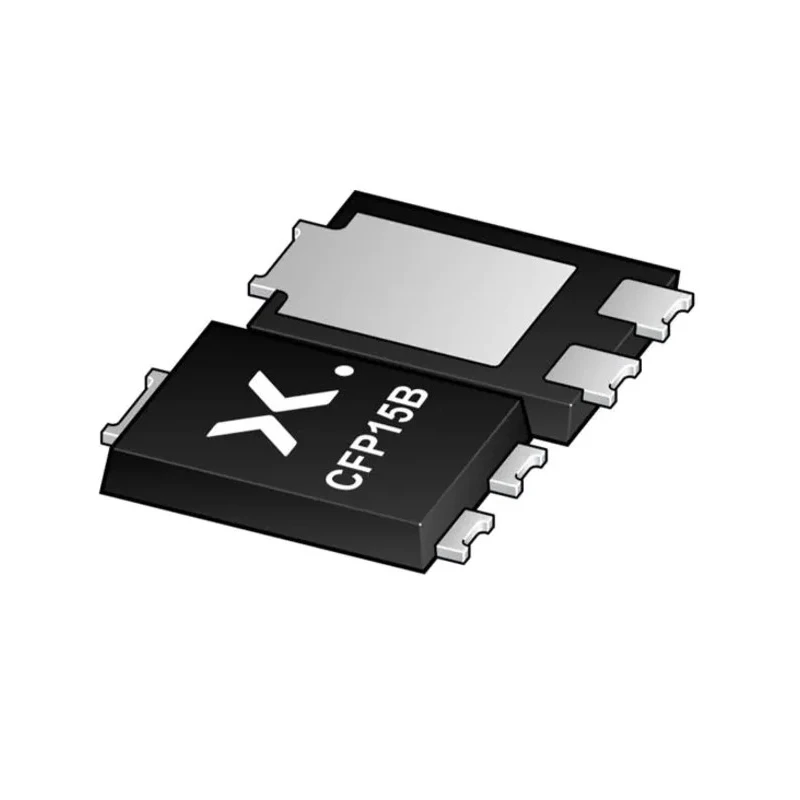

Nexperia 100 V 3 A Trench MEGA Schottky Barrier Rectifier 3-Pin CFP15B PMEG100T030ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T030ELPEZ |
| Mount Type | PCB |
| Series | PMEG |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 710mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- The rectifier has a maximum continuous forward current of 3 A for robust performance.
- It supports a peak reverse repetitive voltage of 100 V, ensuring reliable reverse voltage tolerance.
- Low forward voltage drop of 710 mV contributes to high efficiency in power conversion applications.
- Operates effectively within a temperature range from -55°C to 175°C for demanding environments.
- Features a peak non-repetitive forward surge current of 100 A for transient load protection.
- Employs clip-bonding technology enabling high power capability in a small surface-mount package.
- Designed with low leakage current and fast reverse recovery time of 12 ns for efficient switching performance.
- Complies with AEC-Q101 automotive standard, suitable for automotive electronic systems.
Product Description
Nexperia PMEG100T030ELPEZ is a 100 V, 3 A Schottky Barrier Rectifier that utilizes the trench MEGA technology enclosed in a CFP15B (SOT1289B) power plastic package. It is designed for surface mounting on printed circuit boards, offering a flat lead configuration for optimal footprint.
This device ensures low forward voltage and reduced leakage currents due to its advanced clip-bonding technology, enhancing the efficiency of DC-to-DC conversion and switching regulators. It exhibits a maximum continuous forward current of 3 A and can withstand a peak reverse repetitive voltage of 100 V, making it suitable for various power management applications.
The rectifier operates reliably in a wide temperature span from -55°C to 175°C, supporting demanding industrial, automotive, and consumer electronics environments. Its fast reverse recovery time of 12 ns and low peak reverse current of 3 mA improve switching speed and reduce losses.
Compliant with the AEC-Q101 automotive standard, it is well-suited for use in automotive LED lighting, freewheeling applications, reverse polarity protection, and OR-ing circuits. The compact CFP15B package aids designers in creating compact, high-efficiency power supply modules.
Maximum continuous forward current: 3 A. Peak reverse repetitive voltage: 100 V. Forward voltage drop: 710 mV. Operating temperature range: -55°C to 175°C. Peak non-repetitive forward surge current: 100 A. Reverse recovery time: 12 ns.
Low leakage current for high efficiency. AEC-Q101 compliant for automotive applications. Compact CFP15B surface-mount package.
This rectifier is ideal for electronic, automotive, industrial, and power supply uses where high efficiency, reliability, and compact design are required. Explore EnvMart's extensive selection of semiconductor components to complement your projects and industrial requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this rectifier is 3 A.
It has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop is 710 mV, contributing to its efficiency in power conversion applications.
This rectifier operates effectively within a temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current is 100 A, providing transient load protection.
It features a fast reverse recovery time of 12 ns, improving switching performance.
This model is enclosed in a CFP15B package, designed for surface mounting on printed circuit boards.
Yes, it complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The peak reverse current is 3 mA, which contributes to its efficiency.
The diode configuration is single, suitable for various power management applications.
It is suitable for automotive LED lighting, freewheeling applications, reverse polarity protection, and OR-ing circuits.
This rectifier utilizes trench MEGA technology, which enhances its performance in power conversion.
