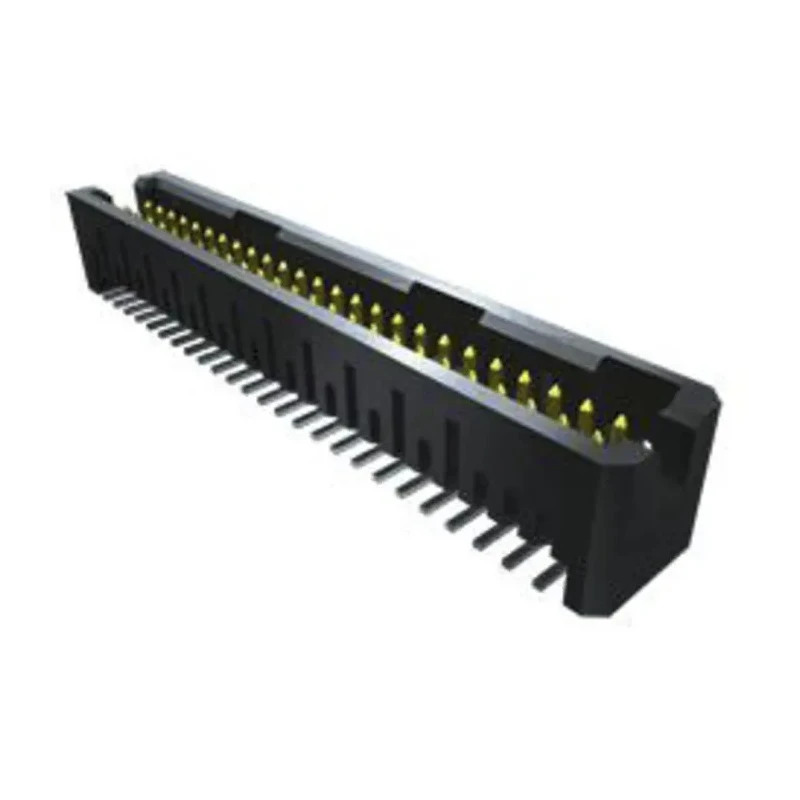

Samtec TFML Series Straight Through Hole PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFML-110-01-S-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | TFML-110-01-S-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFML |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Features phosphor bronze contacts plated with gold for excellent conductivity.
- Supports current rating of 3A and voltage of 250V.
- Shrouded design ensures reliable blind mating and protection.
- Operates reliably between -55°C to 125°C temperature range.
- Mount type is through hole providing secure PCB attachment.
- Male contact gender with solder termination for robust electrical connection.
- Complies with rigorous quality standards but has no special approval certifications.
Product Description
Samtec TFML-110-01-S-D is a premium PCB Header featuring a straight through hole mount type with 20 contacts arranged in 2 rows, each spaced at 1.27 mm pitch. This shrouded header provides excellent protection and ensures reliable blind mating for wire-to-board connections in demanding electronic applications.
The housing is made from liquid crystal polymer, offering excellent mechanical strength and thermal stability, suited for continuous operation from -55°C up to 125°C. The contact system uses phosphor bronze material plated with gold, optimizing for conductivity and corrosion resistance, supporting an operating current of 3 Amperes and voltage up to 250 Volts.
The male contact gender with solder termination ensures a firm electrical connection to printed circuit boards, making it ideal for industrial electronics, telecommunications, instrumentation, and manufacturing equipment.
Although this product does not carry special industry certifications, its robust design reflects Samtec's Extended Life Product (E.L.P.) and Tiger Eye™ high reliability contact systems, suitable for rigorous use. Multiple stack heights and vertical/horizontal row configurations support versatile assembly integration.
This header is manufactured in the United States, assuring strict quality control and adherence to high manufacturing standards. Liquid crystal polymer housing enhances durability and heat resistance. Gold plated phosphor bronze contacts provide superior conductivity.
Shrouded body prevents damage and enables blind mating. Through hole mount ensures reliable PCB attachment. Rated for 3A current and 250V voltage applications. Wide operating temperature range from -55°C to 125°C. Male contact with solder termination for secure connection.
Designed for wire-to-board connector systems in industrial electronics. Manufactured in the United States with high quality standards. Explore a broad range of PCB connectors and headers at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of 250V.
The contacts are spaced at a pitch of 1.27 mm.
The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal stability.
It features a solder termination type for secure electrical connections.
It operates reliably between -55°C to 125°C.
This header has a total of 20 contacts arranged in 2 rows.
This model is shrouded, which provides protection and ensures reliable blind mating.
The contact gender is male, which is suitable for solder termination.
It is manufactured in the United States, adhering to strict quality control standards.
It is designed for wire-to-board connector systems, making it suitable for various electronic applications.
The contacts are made from phosphor bronze and are plated with gold for improved conductivity and corrosion resistance.
This header is ideal for industrial electronics, telecommunications, instrumentation, and manufacturing equipment.
