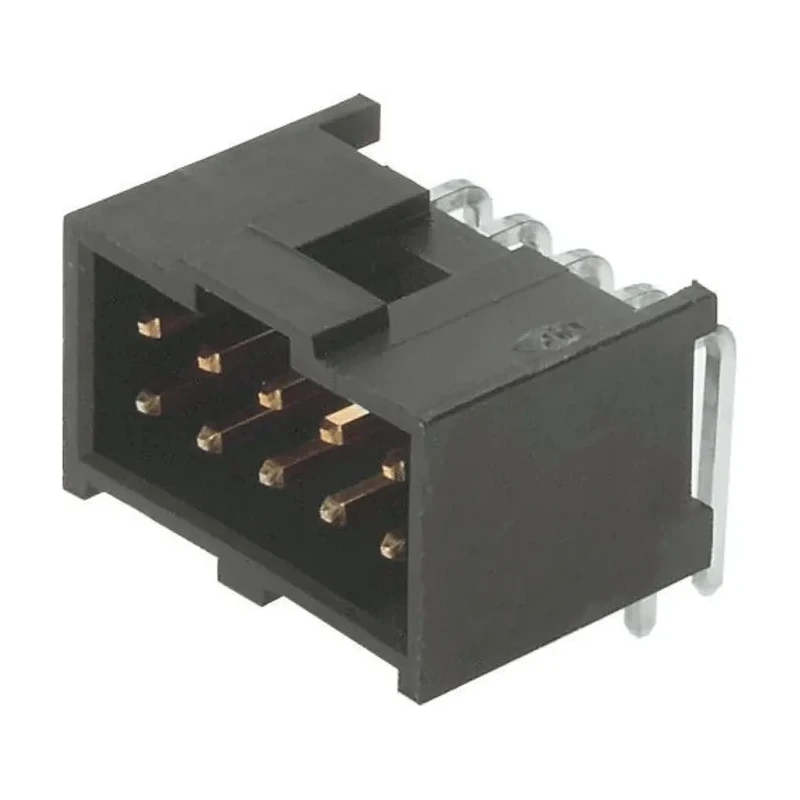

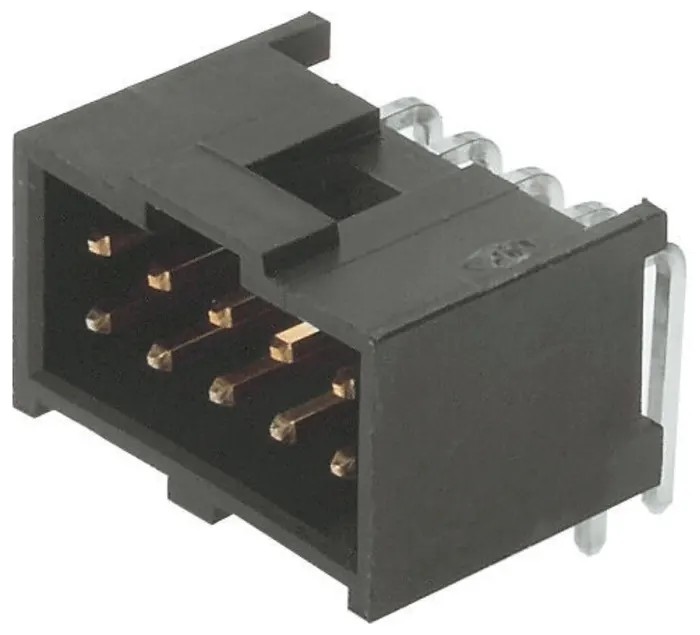

Molex C-Grid III Series Right Angle Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded 90130-3226
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Right angle orientation suitable for PCB mounting.
- Gold-plated brass contacts ensure reliable conductivity.
- Housing is made of durable polyester material.
- Rated for 3A current and up to 350V voltage.
- Through hole mount type for secure attachment.
- Designed for solder termination with male contact gender.
- Operating temperature ranges from -55°C to 125°C.
- Includes 2.9 mm tail pin length and 6.75 mm mating pin length.
Product Description
Molex 90130-3226 C-Grid III Series Right Angle Through Hole PCB Header is a new, shrouded PCB connector featuring 26 male contacts arranged in 2 rows at a 2.54 mm pitch. It is designed for through hole mounting applications, providing a robust wire-to-board connection system.
The housing is manufactured from durable polyester material, engineered to withstand harsh industrial environments. Its right angle orientation is ideal for PCB layouts requiring angular connections.
The connector carries a current rating of 3A and is rated for a maximum voltage of 350V. Contact material is brass with gold plating to ensure low resistance and reliable signal integrity. It operates effectively within a temperature range of -55°C to 125°C.
The termination type is solder, with a tail pin length of 2.9 mm and a mating pin length of 6.75 mm, optimized for secure and efficient electrical interfacing. The shrouded design offers additional protection and compatibility with locking housings, enhancing connection stability in industrial, electronic manufacturing, and laboratory instrumentation contexts.
This product is widely used in electronic component assembly, power and connector systems, industrial machinery interfaces, and automated equipment requiring durable PCB connectors.
Right angle orientation suitable for PCB mounting. Gold-plated brass contacts ensure reliable conductivity. Housing is made of durable polyester material. Rated for 3A current and up to 350V voltage. Through hole mount type for secure attachment.
Designed for solder termination with male contact gender. Operating temperature ranges from -55°C to 125°C. Includes 2.9 mm tail pin length and 6.75 mm mating pin length. Shrouded design offers protection and locking capability.
Compatible with locking housings in Molex C-Grid III range. Explore more PCB Headers and connectors from Molex and related product categories on EnvMart to support your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a maximum voltage of 350V.
It features a pitch of 2.54 mm and has 26 male contacts arranged in 2 rows.
The housing is made of durable polyester, while the contacts are brass with gold plating for reliable conductivity.
It operates effectively within a temperature range of -55°C to 125°C.
This unit is designed for solder termination with male contact gender.
The tail pin length is 2.9 mm, and the mating pin length is 6.75 mm.
It uses a through hole mount type for secure attachment to the PCB.
It has a shrouded design, which offers additional protection and compatibility with locking housings.
Yes, it is compatible with locking housings in the Molex C-Grid III range.
This model supports a wire-to-board connector system.
The country of origin for this PCB header is India.
It is widely used in electronic component assembly, power and connector systems, and industrial machinery interfaces.
