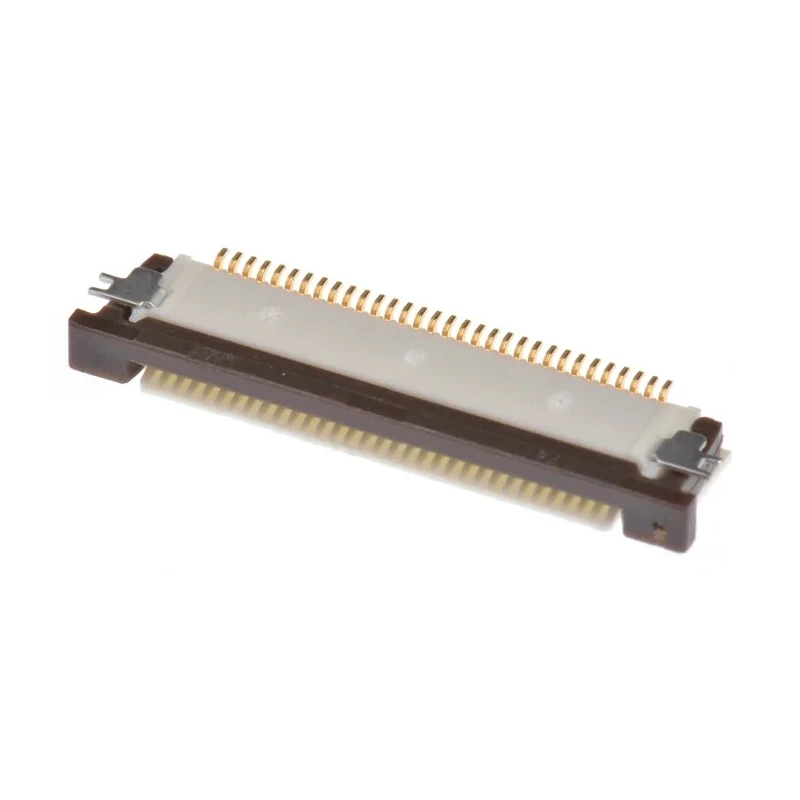

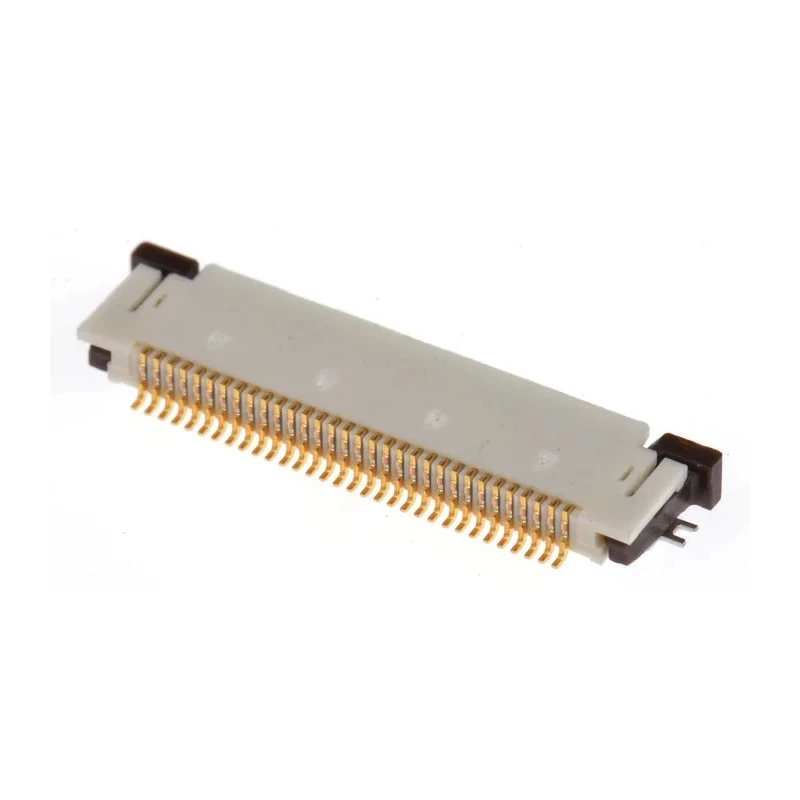

Molex 0.5 mm Pitch 32 Way Right Angle Female Easy-On FFC/FPC Connector, Solder Termination 54104-3231

Molex 54104-3231 is a 32 way right angle female Easy-On FFC/FPC connector with a 0.5 mm pitch, designed to provide secure solder termination in compact PCB applications. Its space-saving construction and Zero Insertion Force (ZIF) design make it suitable for use in tightly packed electronic devices.

The phosphor bronze contact material plated with gold over nickel ensures excellent electrical performance and corrosion resistance. Operating at currents up to 500mA and voltages of 50V, it is robust enough for various signal and data transmission applications.

This connector features a slide type actuator mechanism for easy insertion and secure connection that withstands repeated cycles with minimal wear. Its right-angle orientation with top-positioned contacts facilitates wiring in confined spaces, while solder tabs on the base offer enhanced PCB retention and strain relief to maintain solder joint integrity over time.

Constructed with nylon housing, this connector supports temperatures ranging from -20°C to 85°C, suitable for automotive, consumer electronics, medical, datacommunications, and mobile phone industries. Typical applications include automotive navigation systems, digital cameras, home security devices, patient monitoring equipment, GPS systems, smartphones, and tablets.

0.5 mm pitch enables high-density PCB layouts. Gold over nickel plating provides reliable contact performance. Slide type actuator allows ZIF functionality for repeat cycling. Solder tabs secure PCB mounting and offer strain relief.

Durable nylon housing suited for variable temperature conditions. Right angle design facilitates compact electronic assemblies. Explore the Electronics Components category on EnvMart for more Molex connectors and related FPC Connector solutions that meet industrial and commercial application demands.
