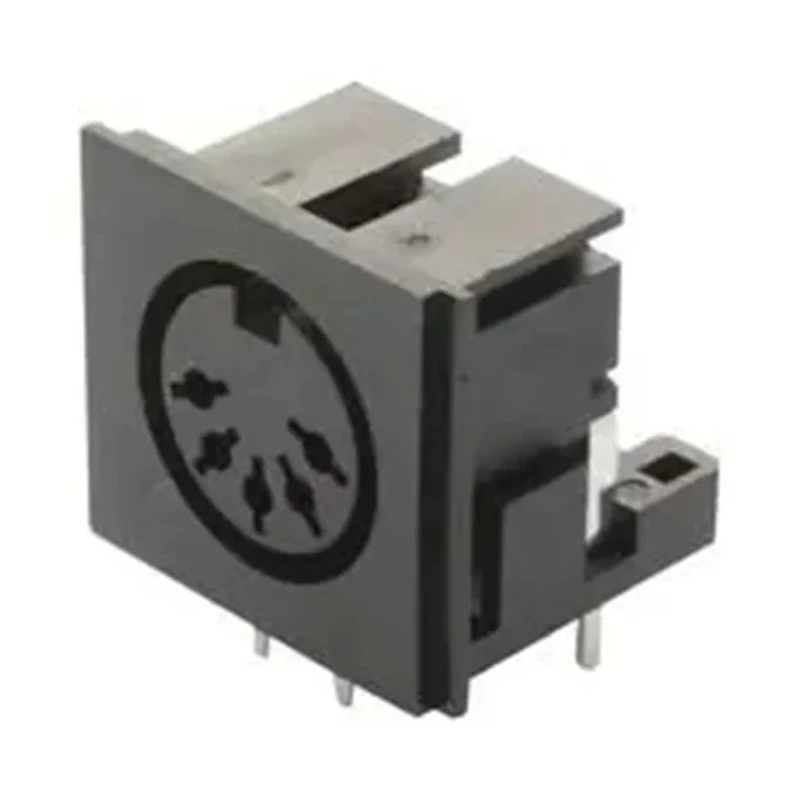

Lumberg 5 Pole Right Angle Standard DIN Socket, PCB Mount, 24V AC, 4A, Plug-In, Female Contact, DIN 41524 0105 05

Lumberg 0105 05 5 Pole Right Angle Standard DIN Socket is a high-quality PCB-mounted circular connector designed for electronic and electrical applications requiring secure plug-in connections at 24V AC and 4A current rating. This female DIN socket complies with DIN 41524 specifications and supports right angle mounting, making it ideal for compact PCB assembly where space optimization is essential.

The housing is made of durable Polybutylene Terephthalate, providing excellent mechanical strength and electrical insulation. Contacts are forged from brass and plated with tin to ensure low contact resistance and corrosion protection, enhancing longevity and reliability even in demanding industrial environments.

Engineered to withstand a minimum operating temperature of -20°C and a maximum of 70°C, the connector is suitable for various industrial, laboratory, manufacturing, and electronic equipment use cases. Termination is by solder ensuring a firm and stable connection to circuit boards.

This DIN socket supports up to 5000 mating cycles and is designed specifically for plug-in mating with female contact configuration, ensuring versatile compatibility with standard DIN plugs. It has undergone rigorous testing including a test voltage capability of 500 V AC and contact resistance greater than 100 MΩ, contributing to reliable electrical performance.

Manufactured in Taiwan, Province Of China, this connector meets high-quality standards for applications in automotive, industrial automation, instrumentation, and electric component assembly.

This DIN Socket supports 5 contacts for reliable circuit connections. Right angle orientation ensures seamless PCB mounting and space efficiency. Constructed with Polybutylene Terephthalate housing providing durability and insulation.

Brass contact material with tin plating enhances conductivity and corrosion resistance. Designed according to DIN 41524 standards for consistent quality and compatibility. Operates reliably between temperatures of -20°C to 70°C for versatile industrial environments.

Suitable for applications requiring plug-in mating type with female connector gender. Offers a test voltage of 500 V AC and is rated for 5000 mating cycles for long-term use. Termination type is solder, designed for secure PCB attachment.

Manufactured in Taiwan, Province Of China with new product condition. Explore the full range of Lumberg DIN connectors and PCB components at EnvMart for comprehensive industrial and electronics assembly solutions.
