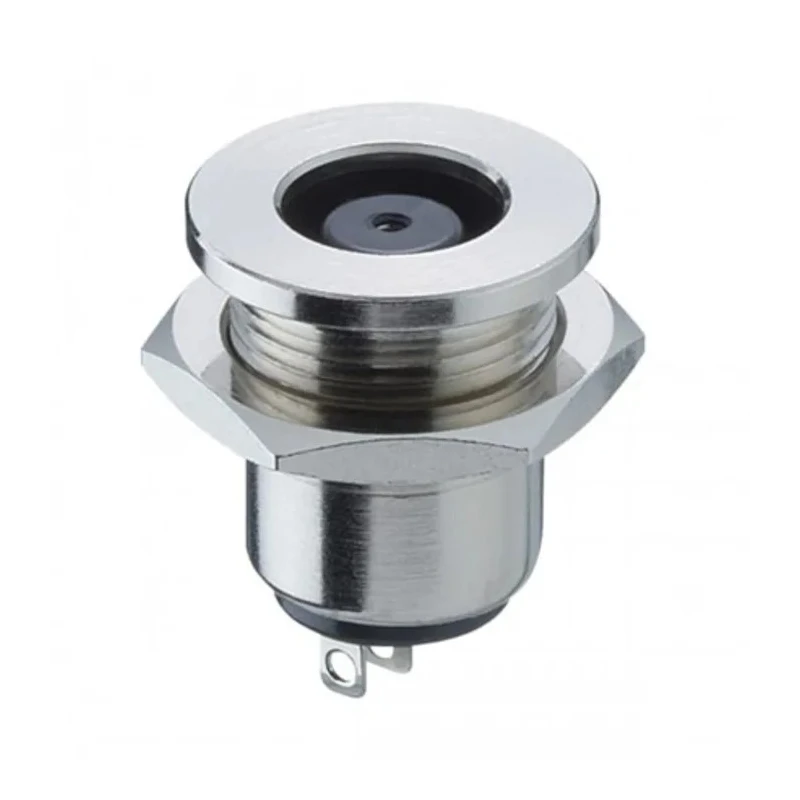

Lumberg 1614 Straight DC Socket 10A 24V Snap-in, Length 16.5 mm, Nickel Plated 1614 21
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 24V |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 10A |
| Length | 16.5mm |
| Model | 1614 21 |
| Width | 9mm |
| Mount Type | Snap-in |
| Contact Material | Copper Tin |
| Series | 1614 |
| Termination Type | Solder |
| Inside Diameter | 8mm |
| Pin Diameter | 2.5mm |
| Contact Plating | Nickel |
| Maximum Cable Diameter | 5.4mm |
| Contact Gender | Female |
| Connector Gender | Female |
| Lumberg, 1614 Straight DC Socket 10A, 24V, Snap-in, length 16.5 mm, NickelBrand | Lumberg |
Key Features
- Rated for a current of 10 amperes at 24 volts DC.
- Snap-in mount type allows front-side chassis installation.
- Constructed with nickel-plated contacts for reliable connectivity.
- Designed with solder termination for secure electrical connections.
- Compatible with mating DC plugs and supports up to 3000 mating cycles.
- Contact resistance is less than 30 milliohms for efficient conductivity.
- Suitable for industrial and electronic equipment requiring DC power connections.
Product Description
Lumberg 1614 21 Straight DC Socket is a high-quality DC power connector designed for reliable 10A, 24V electrical connections in industrial and electronic applications. Featuring a straight orientation and snap-in mount type, it fits easily into front-side chassis installations ensuring secure mounting and convenience during assembly.
This DC socket has a length of 16.5 mm and a width of 9 mm, making it compact and ideal for space-constrained designs. The female connector with an 8 mm inside diameter and 2.5 mm pin diameter matches compatibility standards for many DC power plugs.
The contacts are made of copper tin material and plated with nickel, providing excellent corrosion resistance and durability. Termination is via solder eyes, enabling quick and secure wiring to cables with a maximum diameter of 5.4 mm. The connector is designed for a service life of approximately 3000 mating cycles with a contact resistance below 30 milliohms, ensuring consistent electrical performance.
Tested to withstand a test voltage of 500 V AC, this component is suitable for multiple electronic and industrial settings including power supplies, control units, and other equipment requiring stable DC power input. Its build quality and compliance with the Lumberg 1614 series specifications ensure robustness and reliability.
Rated current of 10A at 24V DC. Straight orientation with snap-in mount type. Nickel-plated copper tin contacts for durability. Solder termination for reliable connections. Length 16.5 mm, width 9 mm, inside diameter 8 mm.
Supports up to 3000 mating cycles with low contact resistance. Maximum cable diameter of 5.4 mm accommodated. Test voltage rated at 500 V AC. Ideal for industrial and electronic DC power connections.
Explore the comprehensive range of DC Power Connectors and electronic components in the EnvMart catalog for applications in industrial automation, manufacturing, laboratory equipment, and power distribution systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 10 amperes at 24 volts DC.
The socket has a length of 16.5 mm and a width of 9 mm.
It features a snap-in mount type, allowing for front-side chassis installation.
The contacts are made of copper tin and are nickel-plated for corrosion resistance.
This socket can accommodate cables with a maximum diameter of 5.4 mm.
It is designed to support up to 3000 mating cycles, ensuring longevity in use.
The inside diameter of the female connector is 8 mm.
This model uses solder termination for secure electrical connections.
The contact resistance is less than 30 milliohms, providing efficient conductivity.
It is tested to withstand a test voltage of 500 V AC.
It is suitable for industrial and electronic equipment requiring stable DC power connections.
The Lumberg 1614 Straight DC Socket has a straight orientation.
