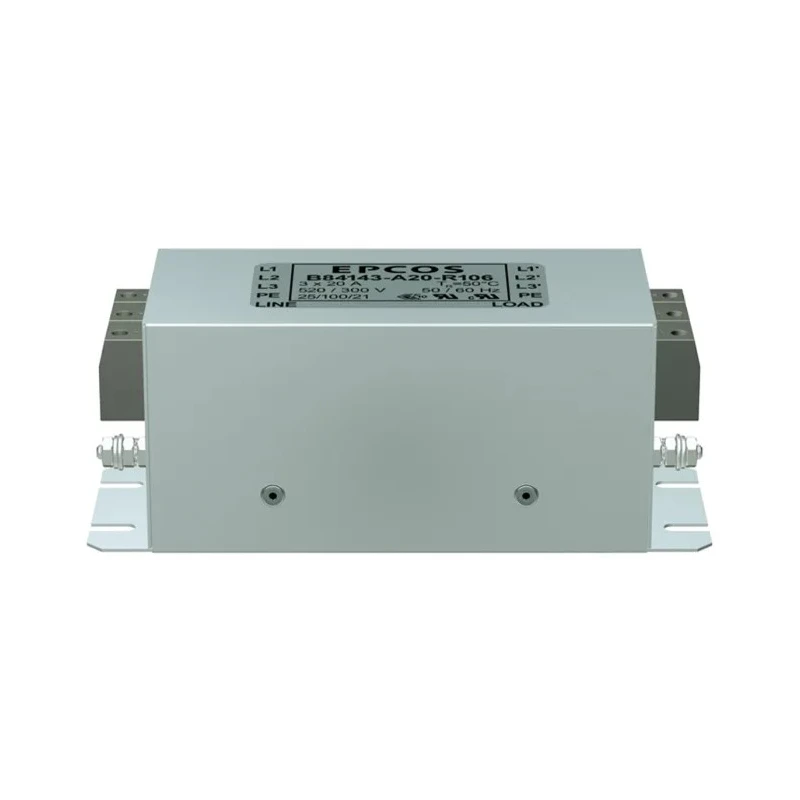

TDK Flange EMC Filter 65A 520V AC 50Hz 60Hz Screw Termination 3 Phase B84143A0065R106

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 65A 520V AC 50Hz 60Hz Screw Termination 3 Phase B84143A0065R106



Category EMI Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	80mm
Length	217mm
Model	B84143A0065R106
Depth	84.5mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84143A*R106
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	940Ω
Minimum Operating Temperature	-25°C
Maximum Current	65A
Number of Phases	3
Leakage Current	3.4mA
Maximum Voltage	520V ac
Standards/Approvals	UL 1283
Termination Style	Screw
Applications include	Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine - tools

Key Features

Rated maximum current of 65 amperes ensuring robust operation.
Maximum voltage rating of 520 volts AC suitable for industrial power lines.
Operates efficiently at frequencies of 50 and 60 hertz.
Features flange mounting with screw termination for secure installation.
Constructed with one stage for effective EMI filtering.
Compact metal case measuring 217mm length, 84.5mm depth and 80mm height.
Optimal for use with frequency converters, motor drives, and HVAC systems.
Leakage current rated at 3.4 milliamperes, suitable for sensitive electronics.

Product Description

TDK B84143A0065R106 Flange EMC Filter is a high-performance electromagnetic compatibility filter designed for industrial AC power applications. It supports a maximum current of 65 amperes and a voltage of up to 520 volts AC, operating across both 50 and 60 hertz frequencies. This filter features a flange mount design with screw terminations for secure installation in three-phase power systems.

The filter is constructed with a compact metal case measuring 217mm in length, 84.5mm in depth, and 80mm in height, making it suitable for installation in diverse industrial equipment. It provides excellent insertion loss and maintains a low leakage current of 3.4 milliamperes, which is crucial for protecting sensitive electronics from electromagnetic interference.

Operational temperature ranges from -25°C to 100°C, making it adaptable to a variety of industrial environments. The B84143A0065R106 series is optimized for use in frequency converters for motor drives such as elevators, pumps, conveyor systems, and HVAC applications. Additional use cases include power supplies, textile machinery, packaging machinery, and machine tools.

This EMC filter complies with stringent international standards including IEC 60939, UL 1283, and CSA 22.2 No.8, assuring users of its safety and performance reliability. The product is IP 20 rated, suitable for indoor use where some protection against contact with live parts is required.

Rated maximum current of 65 amperes ensuring robust operation. Maximum voltage rating of 520 volts AC suitable for industrial power lines. Operates efficiently at frequencies of 50 and 60 hertz. Features flange mounting with screw termination for secure installation.

Compact and durable metal case construction. Optimized for frequency converters in industrial motor drives. Low leakage current of 3.4mA prevents interference. Wide operating temperature range from -25°C to 100°C. Compliant with IEC 60939, UL 1283 and CSA 22.2 No.8 standards.

Applications include elevators, pumps, conveyors, HVAC, textile and packaging machinery.

This TDK EMC filter represents a dependable solution for managing electromagnetic interference in industrial electrical installations. Explore more EMC and power line filters with similar specifications on EnvMart for enhanced system protection and compliance.
