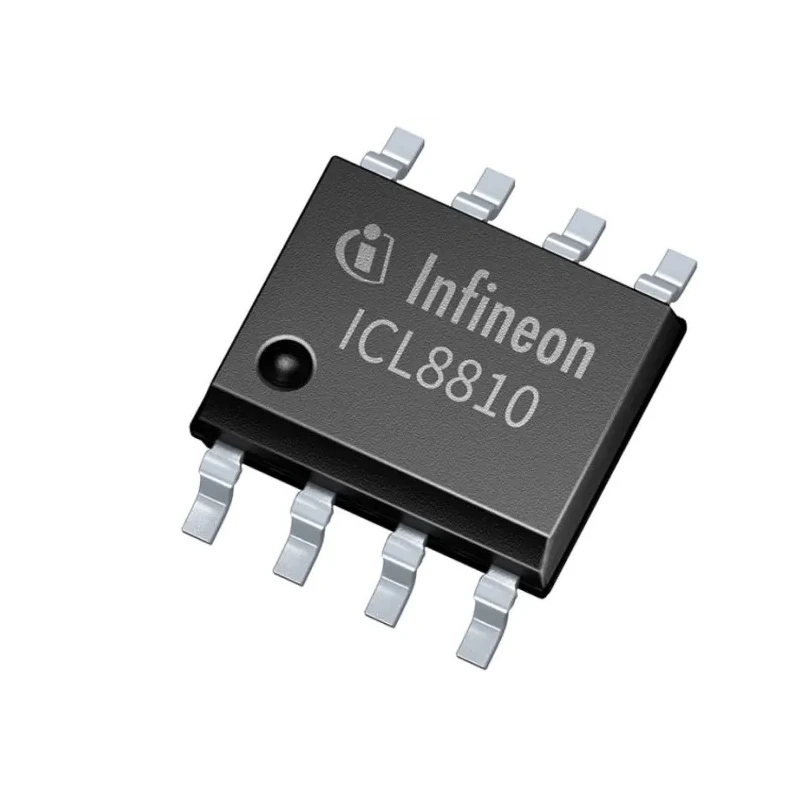

Infineon LED Driver IC, 24 V Input, 8 V Output, 2 mA Output Current, 125 W Max Power, 8-Pin PG-DSO-8 Package ICL8810XUMA1

Infineon ICL8810XUMA1 is a voltage mode controller LED Driver IC specifically engineered for flyback topologies operating in quasiresonant and valley switching Discontinuous Conduction Mode (DCM). It is optimized for LED drivers requiring high power factor and energy efficiency, supporting both low and high power lumen applications.

This IC handles input voltages of 24 V and 8 V, delivering a precise output current of 2 mA with a maximum power capacity of 125 W, making it suitable for a wide range of LED lighting systems. The integrated PWM dimming operation allows flexible brightness control suited for commercial and industrial lighting setups.

The ICL8810XUMA1 is packaged in an 8-Pin PG-DSO-8 through-hole mount, facilitating straightforward PCB assembly and integration. Its operating temperature range spans from -40°C to 150°C, ensuring performance stability under harsh industrial and environmental conditions.

Advanced features such as soft-start reduce stress on components during power-up, while external start-up circuit control aids efficient operation under light load conditions. Reduced gate driver output voltage during startup and burst mode functionality minimizes power consumption, making the IC ideal for energy-conscious applications.

This LED driver supports SSR-CV and PSR-CV topologies designed for dual-stage power factor correction setups. Protecting LEDs and related components, it includes comprehensive protections such as power limitation and ensures long-term reliability.

The component complies with RoHS standards, emphasizing its suitability for environmentally responsible manufacturing and deployment in a variety of industrial, commercial, and lighting control applications.

Supports input voltage of 24 V and 8 V for versatile design applications. Output current of 2 mA with a maximum output power capability of 125 W. 8-Pin PG-DSO-8 through-hole package for reliable mounting. Wide operating temperature range from -40°C to 150°C.

Soft-start and reduced gate driver voltage features enhance reliability. PWM dimming operation for customizable lighting intensity. Designed for flyback topologies with SSR-CV and PSR-CV support. Burst mode reduces standby power consumption during light loads.

RoHS compliant ensuring environmental safety.

This Infineon LED Driver IC is widely applicable in industrial LED lighting, commercial luminaires, HVAC lighting controls, and various power-efficient lighting system designs. It offers a robust solution for manufacturers requiring efficient, high-performance LED drivers with comprehensive protective features.
