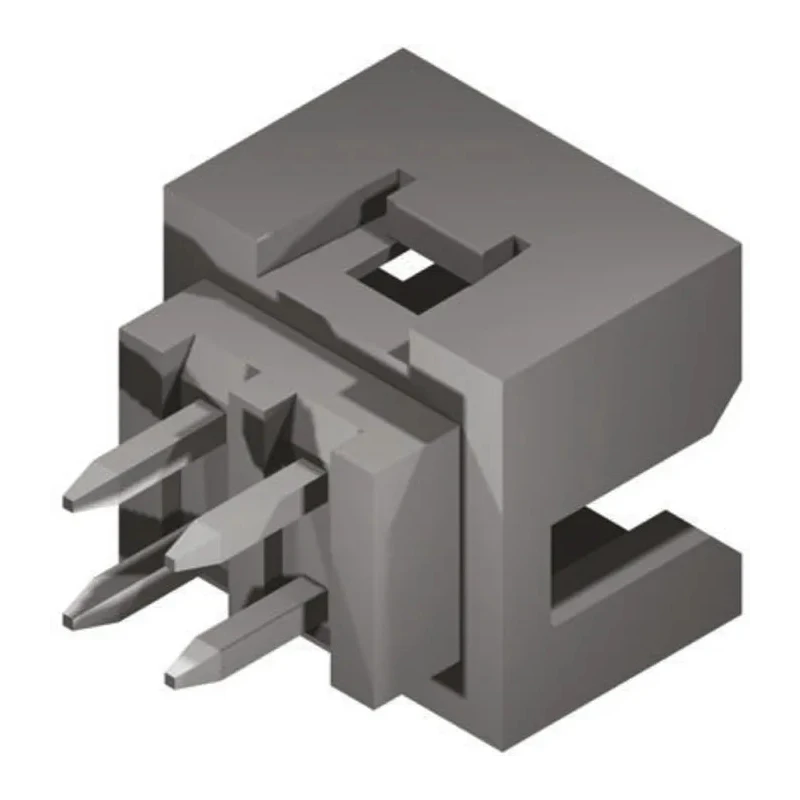

Molex Milli-Grid Series Straight Through Hole PCB Header 6 Contacts 2 mm Pitch 2 Row Shrouded 87831-0641

Molex 87831-0641 Milli-Grid Series Straight Through Hole PCB Header is designed for high-density electronic interconnections featuring 6 contacts arranged in 2 rows with a 2 mm pitch. The shrouded housing protects sensitive contacts and includes a centre polarization slot preventing mismating during assembly.

This PCB header utilizes brass contacts with gold plating, ensuring excellent conductivity and corrosion resistance. The housing is made from robust nylon, offering electrical insulation and mechanical durability for demanding industrial and commercial electronics applications.

The through-hole mount and straight orientation make this header compatible with standard PCB designs, while kinked solder tails guarantee secure solder retention and assembly stability. It has a wide operating temperature range from -55°C to 105°C, suitable for various environments including industrial automation, automotive electronics, and communications equipment.

The Milli-Grid connector system supports reliable wire-to-board signal connections for devices such as printers, fax machines, servers, routers, automotive audio and GPS systems, security alarms, and digital media players. The centre or side locking windows ensure secure mating connections, enhancing assembly integrity.

Additional features include locating pegs to facilitate automated insertion processes, supporting efficient manufacturing scale-up. High-density 2.00 x 2.00 mm grid design suitable for compact PCB layouts. Shrouded design protects contacts against damage and prevents mismating.

Centre polarization slot ensures accurate mating with corresponding receptacles. Kinked solder tails enable secure retention to the PCB during the soldering process. Constructed with nickel-plated brass contacts and gold plating for reliable conductivity.

Housing made from durable nylon material providing electrical insulation and mechanical protection. Suitable for through-hole mounting with straight orientation. Operates reliably in temperature range from -55°C to 105°C.

Ideal for signal connectivity in printers, automotive audio, security systems, and network devices.

This Molex PCB Header 87831-0641 is a proven component for electronic manufacturing, powering applications in industrial, automotive, commercial, and communications sectors. Discover more PCB interconnection solutions in the EnvMart Electronics & Electricals section.
