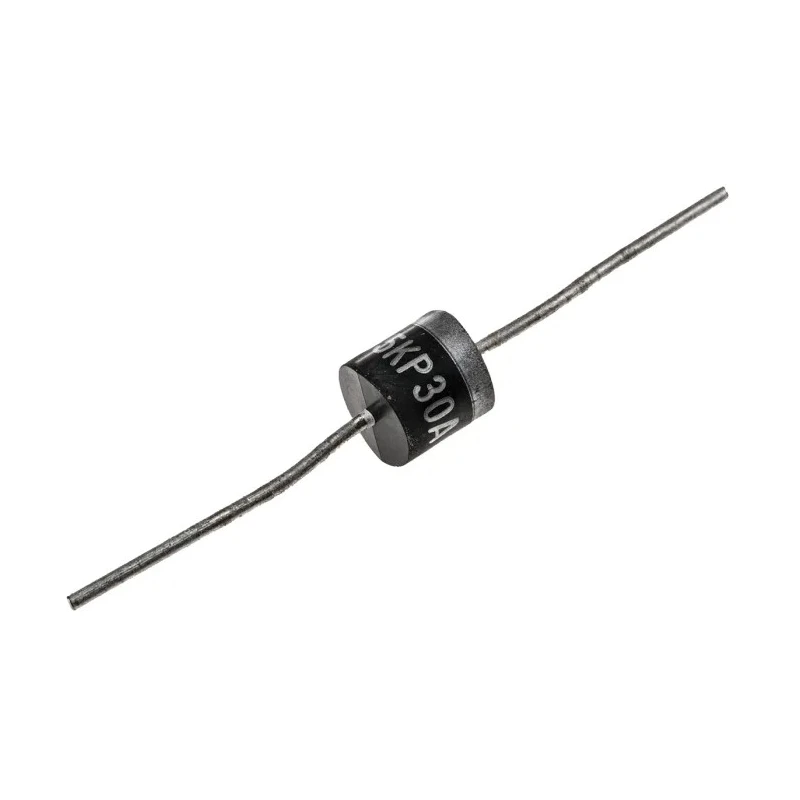

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW 2-Pin P600 5KP30A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP30A-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 103A |
| Maximum Reverse Leakage Current | 2μA |
| TVS unidirectional diode,5KP30A 103ABrand | Vishay |
| Vishay 5KP30A, Uni-Directional TVS Diode, 5000W, 2-Pin P600Brand | Vishay |
Key Features
- Operates with a minimum breakdown voltage of 33.3 V for effective overvoltage protection.
- Uni-directional diode configuration with a single element enhancing circuit reliability.
- Through-hole mount type with P600 package ensures ease of integration.
- Supports peak pulse power dissipation of 1.5 kW and peak pulse current of 103 A.
- Clamping voltage of 48.4 V provides excellent surge protection performance.
- Wide operating temperature range from -55°C to 175°C suitable for diverse environments.
- Automotive AEC-Q101 qualified, ensuring compliance for automotive applications.
- Low maximum reverse leakage current of 2 μA minimizes power loss.
Product Description
Vishay 5KP30A-E3/54 is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for transient voltage suppression and overvoltage protection in electronic circuits. It features a through-hole mount P600 package with a glass passivated junction providing excellent clamping capability and very fast response time.
With a peak pulse power dissipation of 1.5 kW and a maximum peak pulse current of 103 A, this TVS diode efficiently protects sensitive electronic components from voltage spikes and surges. Its clamping voltage of 48.4 V and minimum breakdown voltage of 33.3 V ensure reliable surge suppression.
The device operates across a wide temperature range from -55°C to 175°C, making it suitable for industrial, automotive, and commercial electronics applications. It features low reverse leakage current (2 μA) to reduce power dissipation during normal operation. Additionally, the diode is qualified to automotive AEC-Q101 standards, certifying its reliability in automotive systems.
The physical size is compact, with 9.1 mm height, length, width, and diameter, making it convenient for PCB assemblies. The diode is uni-directional with a single element per chip and is designed for through-hole mounting, simplifying installation.
Typical applications include power supplies, telecommunications equipment, consumer electronics, automotive systems, and industrial controls where transient voltage suppression is critical for protecting circuit integrity and longevity.
Minimum breakdown voltage of 33.3 V for effective surge protection. Uni-directional 1-element diode configuration. Peak pulse power dissipation of 1.5 kW ensures robust protection. Clamping voltage of 48.4 V provides fast transient voltage clamping.
Wide operating temperature range from -55°C to 175°C. Low reverse leakage current of 2 μA reduces power loss. Automotive grade AEC-Q101 qualification for harsh environments. Compact P600 through-hole mount package. ESD protection for enhanced device durability.
For further technical documents and design support, please refer to available Vishay resources. This product is ideal for users requiring dependable transient voltage suppression across diverse industrial, automotive, and electronic application environments.
Explore more TVS Diodes and protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is 1.5 kW, which provides robust protection against voltage spikes.
The minimum breakdown voltage for this model is 33.3 V, ensuring effective overvoltage protection.
The clamping voltage of this diode is 48.4 V, which helps in providing excellent surge protection performance.
The maximum reverse leakage current for this unit is 2 μA, which minimizes power loss during normal operation.
This TVS diode operates over a wide temperature range from -55°C to 175°C, making it suitable for various environments.
The diode uses a through-hole mount type, which facilitates easy integration into PCB assemblies.
This model features a single element configuration, enhancing circuit reliability in transient voltage suppression applications.
The package type of this diode is P600, which is designed for through-hole mounting.
This diode is qualified to the automotive AEC-Q101 standard, ensuring its reliability for automotive applications.
The maximum peak pulse current for this TVS diode is 103 A, allowing it to handle significant transient events.
The height of this diode is 9.1 mm, which is consistent with its compact design.
This model is suitable for applications including power supplies, telecommunications equipment, consumer electronics, and automotive systems where transient voltage suppression is critical.
