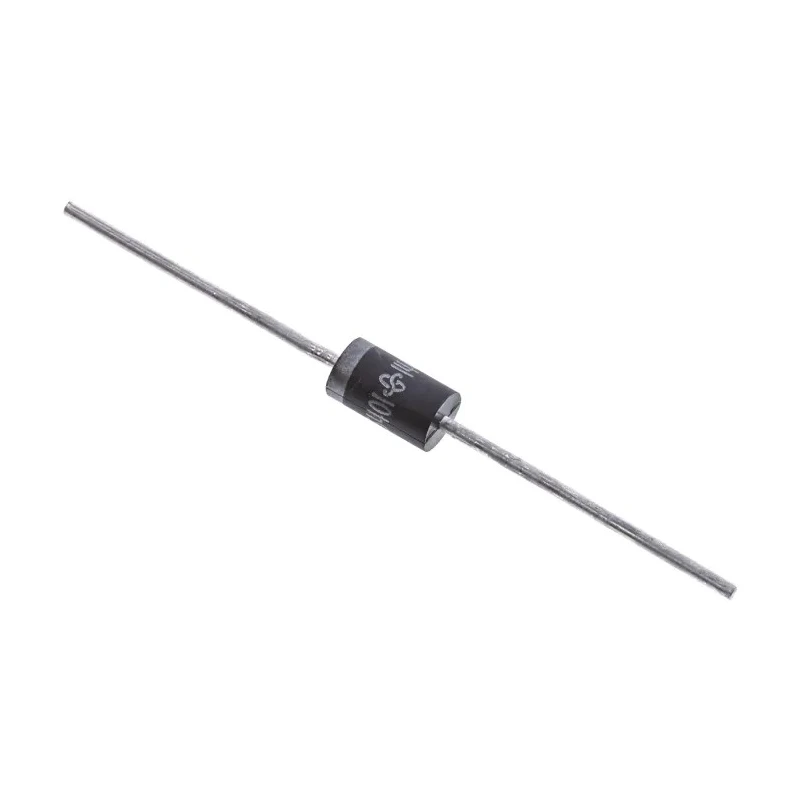

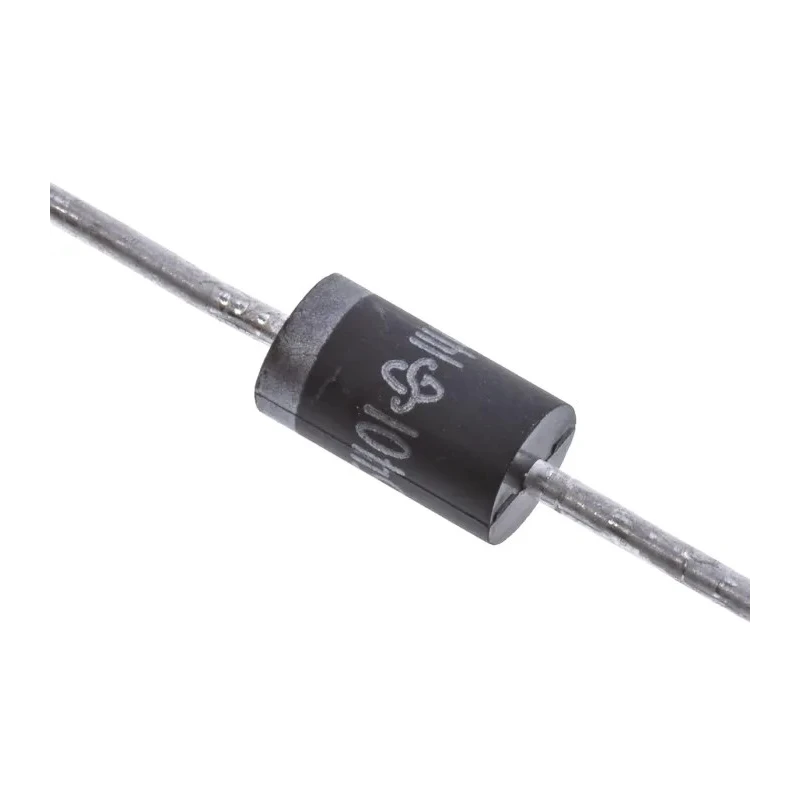

Vishay 100 V 3 A Soft Recovery Diode Two-Pin DO-201AD Package UF5401-E3/54

Vishay UF5401-E3/54 is a 100 V, 3 A soft recovery diode housed in a compact two-pin DO-201AD package, engineered for applications requiring efficient high frequency rectification and freewheeling. Its ultrafast reverse recovery time of 50 ns significantly reduces switching losses, enhancing overall circuit efficiency in power conversion systems.

This diode features a glass-passivated chip junction, providing improved long-term stability and performance consistency. The low forward voltage drop of 1 V ensures minimal conduction losses, making it suitable for power-sensitive designs.

The device supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 100 V. It can withstand forward surge currents up to 150 A non-repetitively, ensuring robustness against transient conditions. Operating temperature ranges from -55°C to 150°C extend its usability in demanding industrial and consumer electronic environments.

The DO-201AD molded case meets UL 94 V-0 flammability rating requirements, reinforcing safety when integrated into electronic assemblies. Matte tin-plated leads conform to solderability standards per J-STD-002 and JESD 22-B102, allowing reliable PCB mounting.

Typical applications include switching mode power supplies, inverters, telecommunications equipment, and other consumer and computer electronics requiring reliable, high-speed rectification.

The diode features a low forward voltage drop of 1 V for efficient conduction. It supports a maximum continuous forward current of 3 A. The peak reverse repetitive voltage is rated at 100 V ensuring robust blocking capability.

Ultrafast reverse recovery time of 50 ns minimizes switching losses in converter circuits. The diode construction is glass passivated for enhanced reliability and stability. Matte tin-plated leads enable excellent solderability meeting J-STD-002 standards.

The device operates reliably from -55°C up to 150°C supporting harsh environments. The DO-201AD case has UL 94 V-0 flammability rating ensuring safety compliance. Colour band marks cathode end facilitating correct polarity alignment.

Ideal for use in switching mode converters, inverters, and telecommunications applications. Explore the full range of Vishay semiconductor products on EnvMart to meet your industrial, electronic, and commercial needs with quality and reliability.
