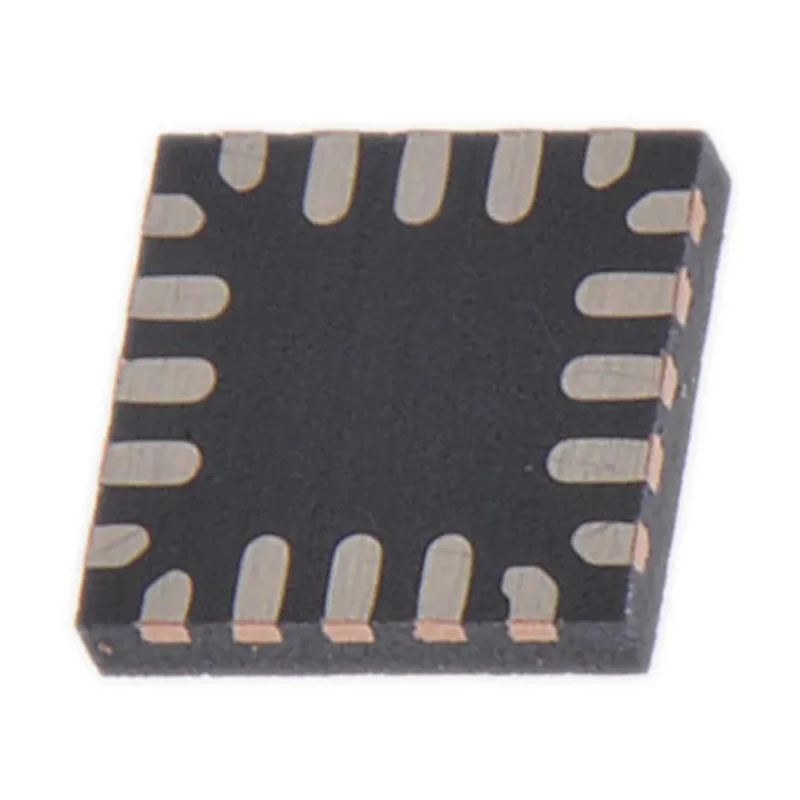

STMicroelectronics STM8L151F3U6TR 8-Bit STM8L Microcontroller 16 MHz 8kB FLASH 20-Pin UFQFPN STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 550μm |
| Length | 3mm |
| Model | STM8 |
| Width | 3mm |
| Mount Type | Surface |
| Series | STM8L |
| Maximum Operating Temperature | 85°C |
| Package Type | UFQFPN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | UART, SPI, I2P |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.65V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 15 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8kB |
| Number of Timers | 3 |
| Instruction Set Architecture | CISC |
| ADCs | 10 x 12 Bit |
| Program Memory Type | FLASH |
| STM8L101 | Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz |
| STM8L151/152 | Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz |
Key Features
- Utilizes an 8-bit STM8 core for efficient processing.
- Operates at a maximum clock frequency of 16 MHz.
- Includes 8kB of flash program memory and 1kB of RAM.
- Supports UART, SPI, and I2P interface types for versatile connectivity.
- Features 15 programmable I/Os and 3 timers for flexible control applications.
- Operates within a voltage range of 1.65V to 5.5V.
- Offers ultra-low power consumption with minimum power modes down to 0.35μA.
- Provides 10 channels of 12-bit ADCs and 2 analogue comparators.
Product Description
STMicroelectronics STM8L151F3U6TR is a high-performance 8-bit microcontroller based on the STM8L series core, optimized for ultra-low power consumption. It operates at a maximum frequency of 16 MHz and features 8kB flash memory with 1kB RAM, housed in a compact 20-pin UFQFPN surface mount package measuring 3mm by 3mm and a height of 550μm.
This microcontroller supports multiple interface protocols including UART, SPI, and I2P, enabling comprehensive communication capabilities. With 15 programmable I/O pins and 3 built-in timers, it is well-suited for embedded control applications across industrial, automotive, and consumer electronics sectors.
The device boasts ultra-low power modes with standby currents as low as 0.35μA, making it ideal for battery-powered and energy-sensitive applications. Additionally, it integrates 10 channels of 12-bit ADCs and 2 analogue comparators, enhancing analog signal processing and measurement accuracy.
Operating voltage ranges from 1.65V to 5.5V, and it supports operating temperatures from -40°C to 85°C, thus ensuring robust performance in harsh environments. The STM8 architecture employs a CISC instruction set designed for efficient code density and performance.
This microcontroller is suitable for use in industrial automation, instrumentation, and low power embedded systems where small size and power efficiency are critical. STMicroelectronics provides comprehensive technical support and documentation to facilitate seamless integration.
Utilizes an 8-bit STM8 core for efficient processing. Operates at a maximum clock frequency of 16 MHz. Includes 8kB of flash program memory and 1kB of RAM. Supports UART, SPI, and I2P interface types for versatile connectivity.
Features 15 programmable I/Os and 3 timers for flexible control applications. Operates within a voltage range of 1.65V to 5.5V. Offers ultra-low power consumption with minimum power modes down to 0.35μA. Provides 10 channels of 12-bit ADCs and 2 analogue comparators.
Designed for operation in temperatures from -40°C to 85°C. Compact UFQFPN package with 3mm x 3mm dimensions and 550μm height. Explore the range of STMicroelectronics Microcontrollers and microcontroller development tools on EnvMart for your next embedded system design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8L151F3U6TR microcontroller operates at a maximum clock frequency of 16 MHz.
It includes 8kB of flash program memory.
The operating voltage range for the STM8L151F3U6TR is from 1.65V to 5.5V.
This model supports UART, SPI, and I2P interface types for versatile connectivity.
It features 15 programmable I/O pins.
The STM8L151F3U6TR is housed in a compact 20-pin UFQFPN package measuring 3mm by 3mm and a height of 550μm.
The microcontroller offers ultra-low power consumption with minimum power modes down to 0.35μA.
It operates within a temperature range of -40°C to 85°C.
This microcontroller provides 10 channels of 12-bit ADCs.
It has a RAM size of 1kB.
The STM8L151F3U6TR integrates 3 timers for flexible control applications.
The device employs a CISC instruction set architecture designed for efficient code density and performance.
