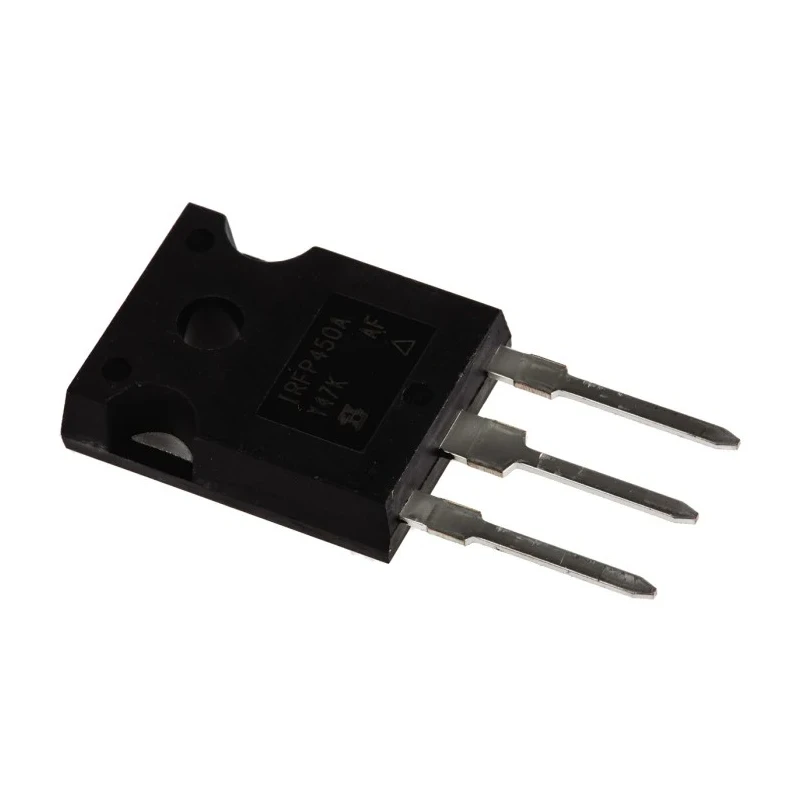

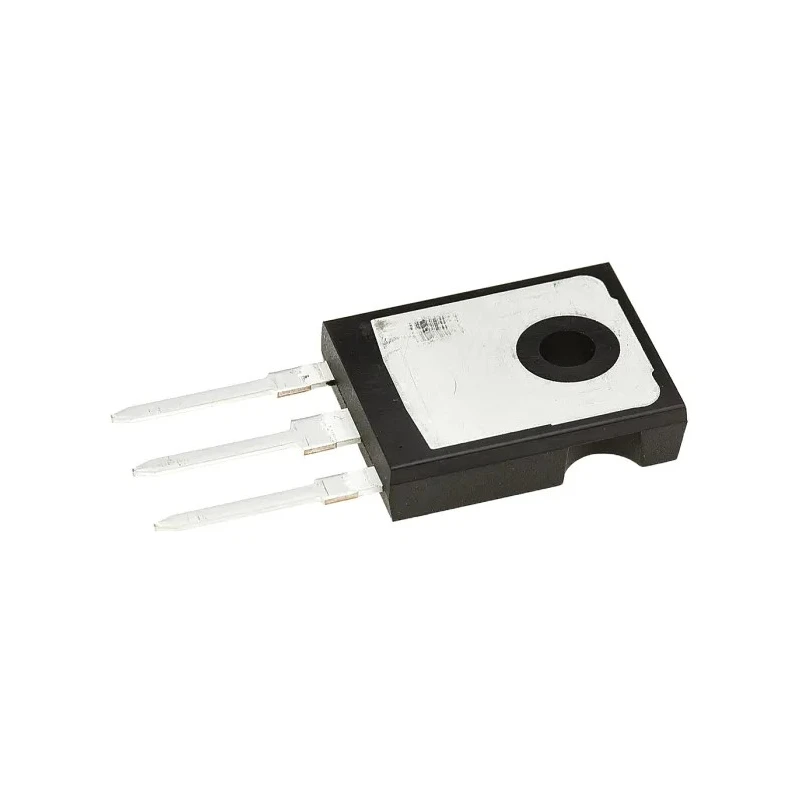

Vishay N-Channel MOSFET 14 A 500 V Enhancement Mode 3-Pin TO-247 IRFP450APBF

Vishay IRFP450APBF is a high-performance N-Channel MOSFET designed for industrial and commercial electronic applications. It offers a continuous drain current rating of 14 A and a maximum drain-source voltage of 500 V, making it suitable for various power switching and amplification tasks.

Constructed in a robust TO-247 package with through-hole mounting, this MOSFET ensures easy integration into printed circuit boards and power electronic assemblies. Its enhancement mode channel and low maximum drain-source resistance (400 mΩ) contribute to efficient energy management and reduced power losses.

The device supports a maximum power dissipation of 190 W, facilitating operation in demanding environments. Its operating temperature range from -55 °C to 150 °C further extends its usability in industrial automation, HVAC, motor control, and power supply circuits.

With a typical gate charge of 64 nC at standard gate voltage and a maximum gate-source voltage rating of ±30 V, the IRFP450APBF MOSFET provides fast switching capabilities while maintaining gate control integrity.

The precise physical dimensions - height 20.7 mm, length 15.87 mm, and width 5.31 mm - enable designers to accommodate the device within compact power modules. This product, manufactured in China, does not carry any special certification marks but is built for reliable, consistent performance in electronic power control setups.

This MOSFET features enhancement mode operation and a low maximum drain-source resistance of 400 mΩ. It supports a maximum power dissipation of 190 W, suitable for high power applications. The device operates reliably between -55°C and 150°C, ensuring durability in harsh environments.

The typical gate charge at Vgs is 64 nC, enabling efficient switching performance. Maximum gate-source voltage ranges from -30 V to +30 V permitting flexible gate drive conditions. The package dimensions measure approximately 20.7 mm in height, 15.87 mm in length, and 5.31 mm in width.

The forward voltage drop is 1.4 V, supporting efficient conduction when active. This component is designed for through-hole mounting with a three-pin configuration. Manufactured in China, it complies with standard electronic component quality requirements.

This IRFP450APBF MOSFET by Vishay is ideal for applications in industrial power control, switching regulators, motor drives, and power amplification circuits. Explore Vishay semiconductors and related power electronic components at EnvMart for reliable sourcing and technical support.
