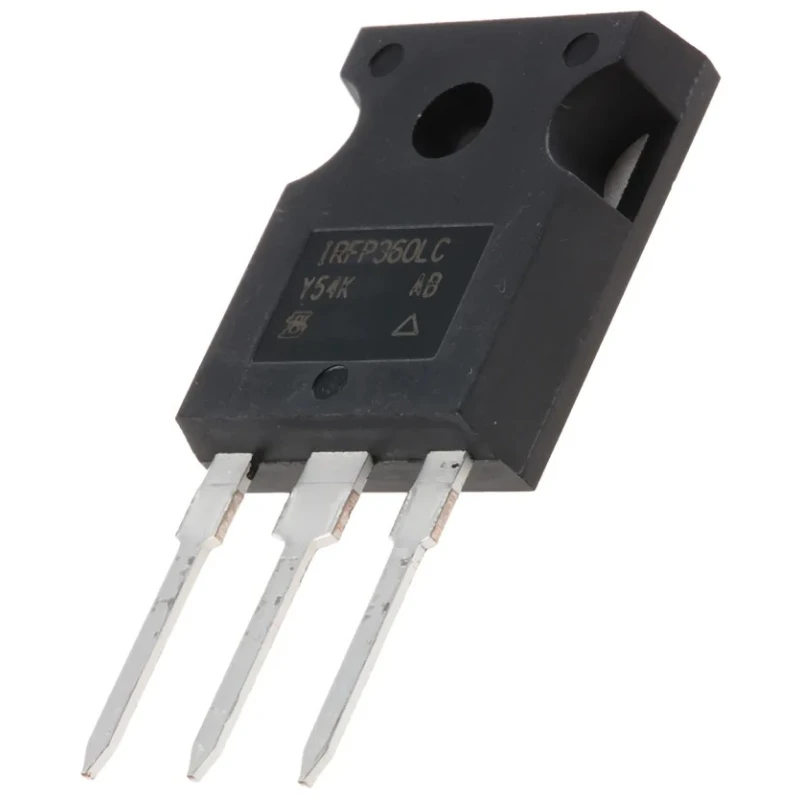

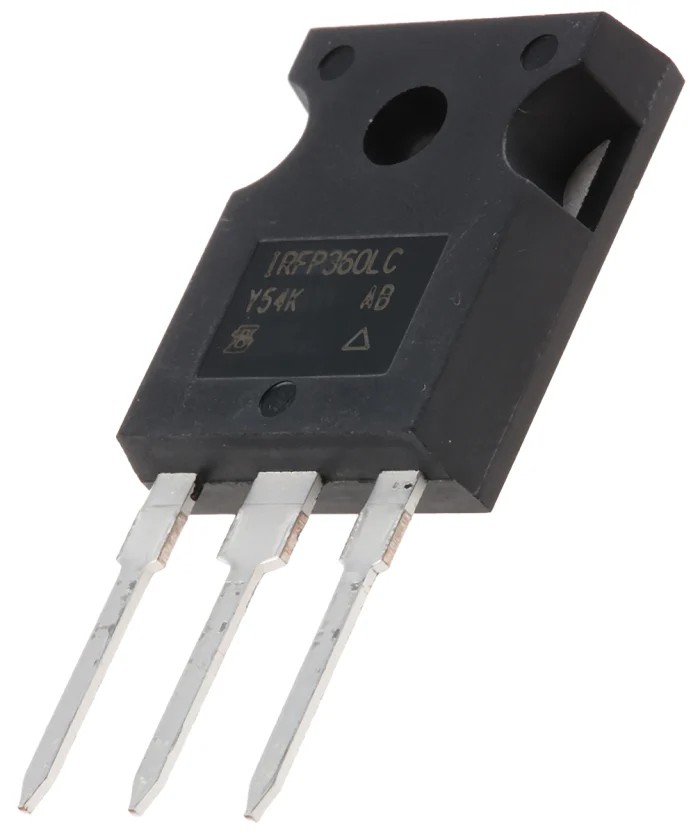

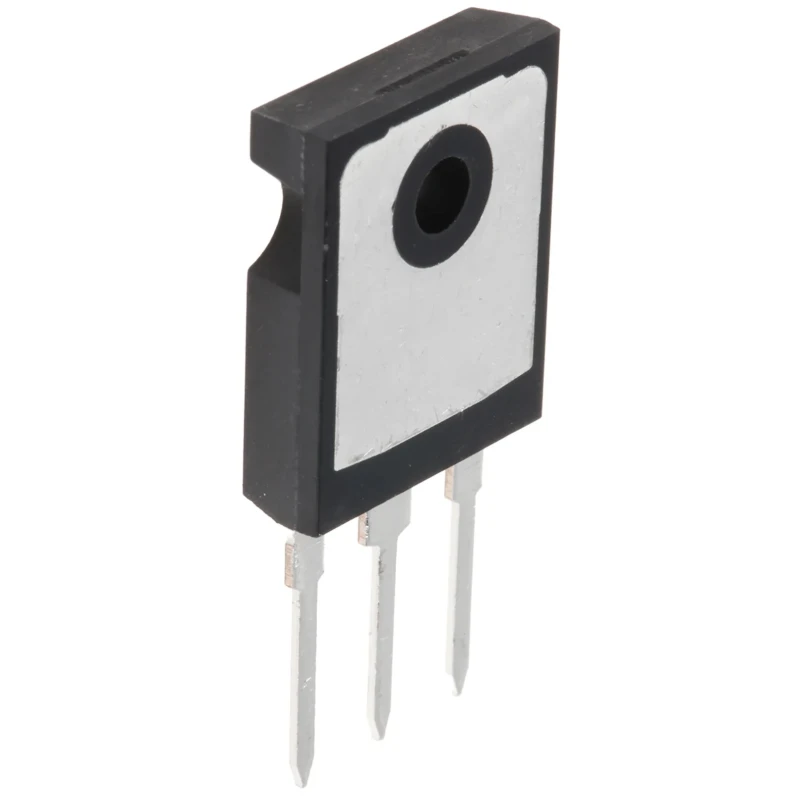

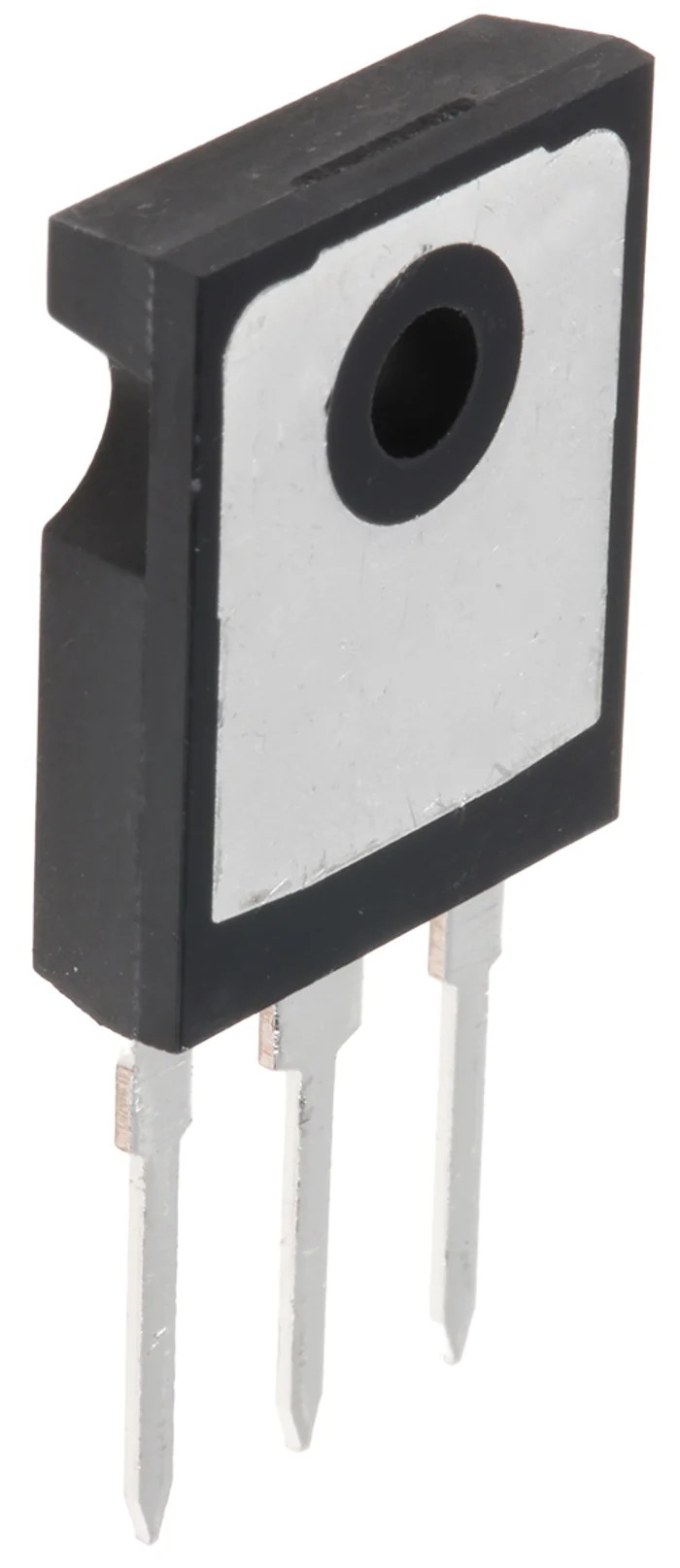

Vishay N-Channel MOSFET, 23 A, 400 V Enhancement Mode, 3-Pin TO-247 IRFP360LCPBF

The Vishay IRFP360LCPBF is an N-Channel Enhancement Mode MOSFET designed for power electronics applications that require a high continuous drain current of 23 A and a drain-source voltage rating of 400 V. Packaged in a robust 3-pin TO-247 form factor, it is optimized for through-hole mounting in industrial power circuits.

This MOSFET offers excellent power dissipation capability, rated at a maximum of 280 W, allowing reliable operation under demanding thermal conditions. The device operates efficiently within a temperature range of -55°C to 150°C, making it suitable for use in harsh industrial environments such as motor drives, power supplies, and inverter circuits.

With a typical gate charge of 110 nC at Vgs, the IRFP360LCPBF ensures efficient switching performance to minimize switching losses. It features a gate-source voltage rating of -30 to +30 V, providing tolerance for robust drive signals, and a low forward voltage of 1.8 V reduces conduction loss, contributing to higher efficiency in power management.

The compact dimensions - 20.7 mm height, 15.87 mm length, and 5.31 mm width - facilitate integration into space-constrained PCB layouts. This MOSFET is a reliable choice for industrial, manufacturing, automation, and electronic equipment requiring power switching components.

This MOSFET features a TO-247 package with 3 pins for through-hole mounting. Flow current rating of 23 A supports high current loads. 400 V drain-source voltage enables high voltage applications. High power dissipation capability of 280 W ensures durability.

Wide operating temperature range from -55°C to 150°C for industrial use. Typical gate charge of 110 nC at Vgs reduces switching losses. Maximum gate-source voltage of -30 to +30 V allows flexible drive voltages. Low forward voltage of 1.8 V improves conduction efficiency.

Compact physical size for effective PCB integration.

For electronics manufacturing, power supplies, industrial automation, and other high-power electronic designs, the Vishay IRFP360LCPBF MOSFET delivers reliable and efficient switching performance. Refer to EnvMart for more industrial-grade semiconductor components.
