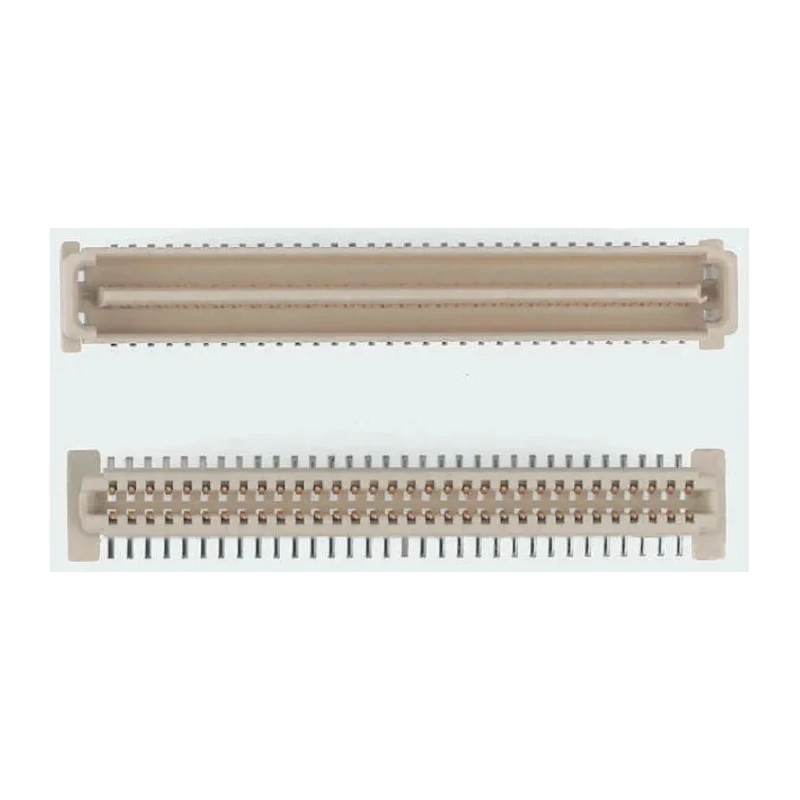

Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch, Solder Termination 71439-3164

Molex 71439-3164 PMC Mezzanine Series Straight Surface Edge Connector is a high-quality 64-contact, 2-row edge connector with 1 mm pitch, designed for precise board-to-board signal connectivity. It uses solder termination and a surface mount installation method, enabling vertical stacking for advanced compact electronic assemblies.

The connector features a durable thermoplastic housing made from high-temperature liquid crystalline polymer (LCP), allowing it to withstand reflow soldering processes reliably. The gold-plated bronze contacts provide excellent corrosion resistance and signal integrity with low insertion forces, enhancing the lifespan and performance of the connection.

Rated for up to 12A current and 100V voltage, this PMC Mezzanine Series connector meets demanding electrical requirements for LAN, WAN, telecommunication systems, PCs, and workstation devices. The operating temperature range from -55°C minimum to 85°C maximum enables its use in diverse environmental conditions and industrial applications.

The 64-contact design arranged in dual rows and the IEEE 1386 compliance enable seamless interfacing of PCI and S-bus mezzanine cards to VMEbus and Multibus host boards. Its shrouded leaf construction protects sensitive header contacts, minimizing the chance of damage during board insertion and removal.

This connector is ideal for high-density PCB interconnections in industrial electronics, telecommunications, data communication, computing hardware, and other professional electronic equipment. Mated heights range from 8 to 15 mm as per combination guides, facilitating adaptable stacking requirements.

This Edge Connector is suitable for vertical stacking SMT headers and sockets. The connector supports a current rating of 12A and a voltage rating of 100V. It includes a thermoplastic high-temperature LCP housing compatible with reflow solder processes.

Gold-plated bronze contacts ensure reliable connectivity and low insertion force. Designed for LAN, WAN, telecommunication, PC, and workstation applications. Operating temperature range is from -55°C to 85°C. Compatible with IEEE 1386 Mezzanine standards allowing PCI and S-bus mezzanine cards connection.

Features a shrouded leaf design to minimize damage to header contacts. Explore the extensive range of PCB connectors and sockets at EnvMart to find compatible components for your electronic manufacturing and board-to-board applications.
