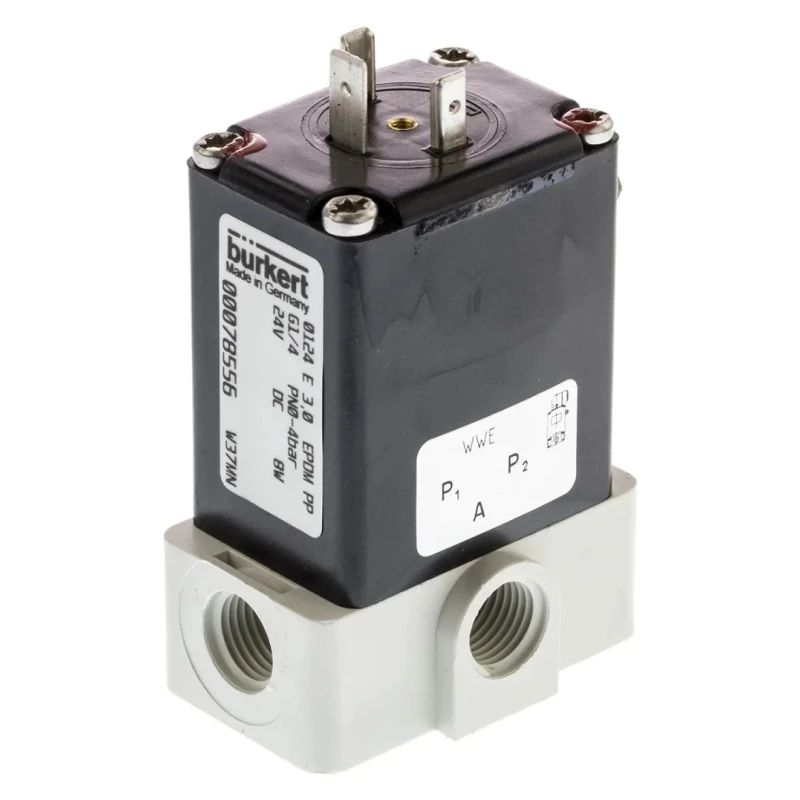

Burkert 3 Port NO/NC Polypropylene Solenoid Valve 24V DC G1/4 Threaded Ports 3mm Orifice 078556

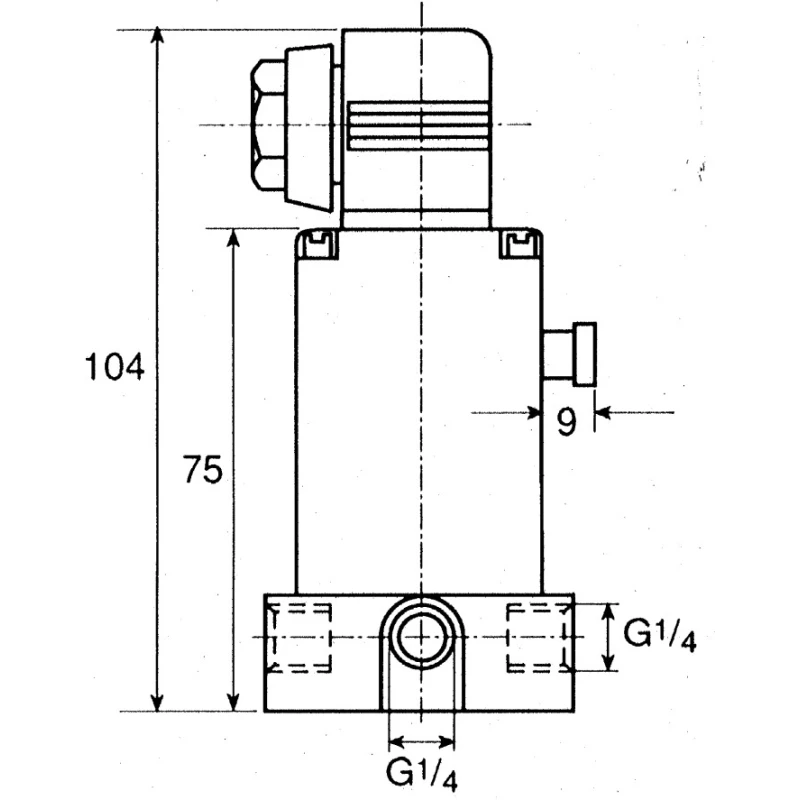

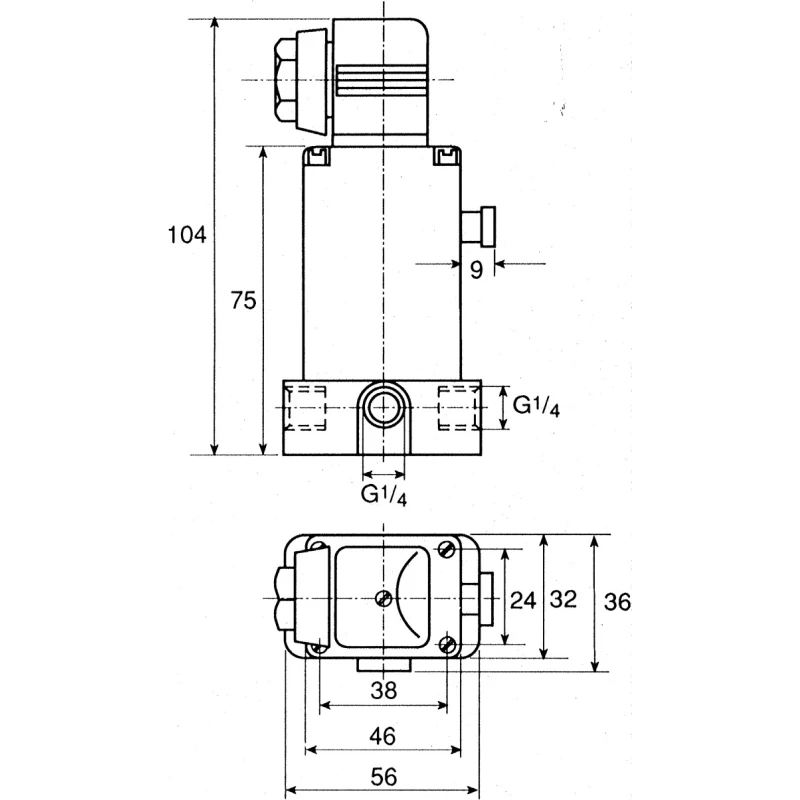

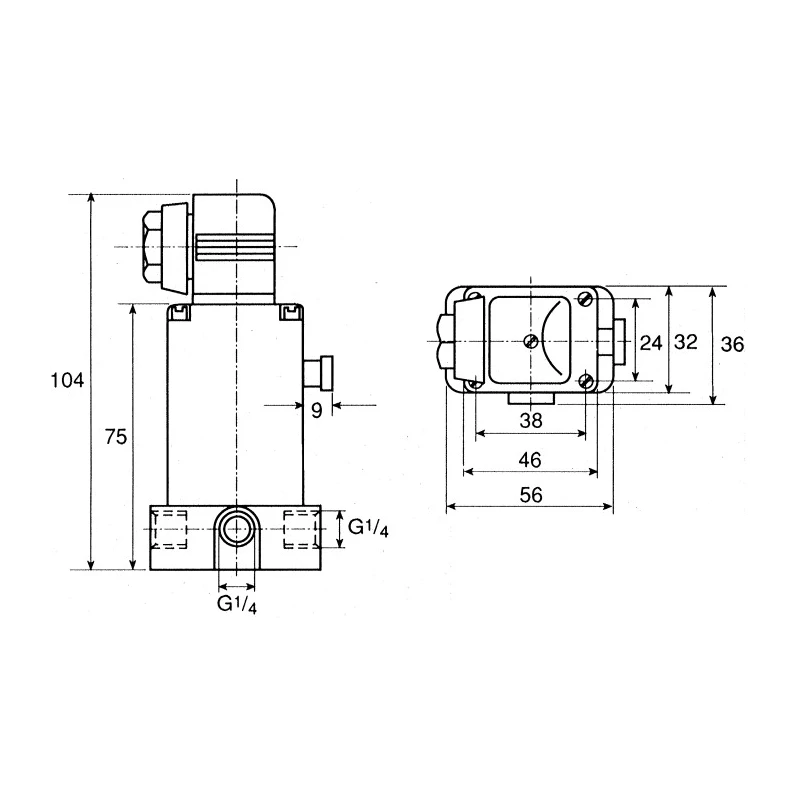

The Burkert 078556 solenoid valve from the 0330 series is a robust, direct-acting 3-port valve manufactured with a polypropylene body designed for aggressive media such as alkalis, acids to medium concentration, alkaline washing, and bleaching agents. This valve operates at 24V DC and features a G1/4 threaded inlet and outlet, both female connectors, suitable for industrial plumbing and pipeline applications.

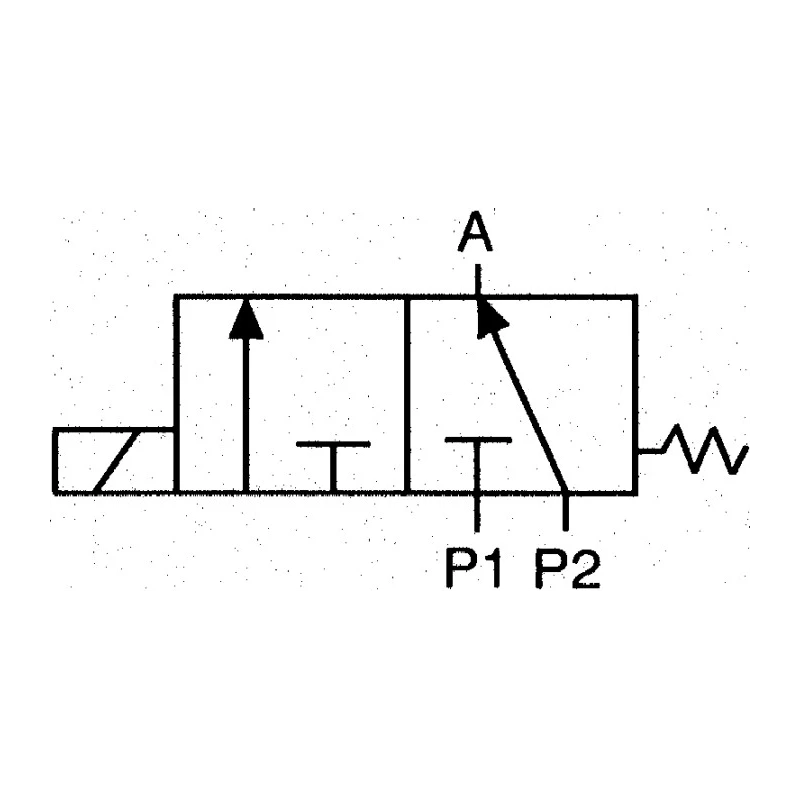

The valve uses a pivoted armature with a separating diaphragm and provides normally open/normally closed (NO/NC) valve positioning, making it highly versatile for controlling fluid flow in demanding industrial and chemical processing environments. With an orifice diameter of 3 mm and a flow factor (Kv) of 0.25 m³/h, the valve offers precise flow regulation capabilities.

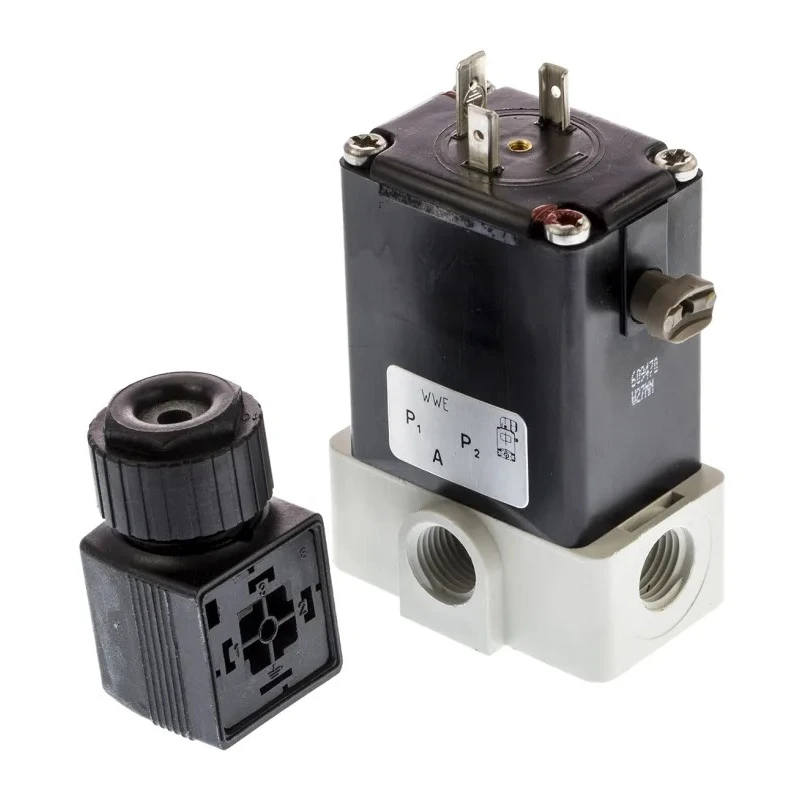

It features maximum operating pressure up to 4 bar and can operate within a temperature range of -40°C to 55°C. The valve's maximum opening and closing times are rapid at 20 milliseconds, suitable for processes requiring instantaneous actuation. The 3-pin DIN connector can be positioned in increments of 90° over a 360° range, facilitating flexible electrical connections.

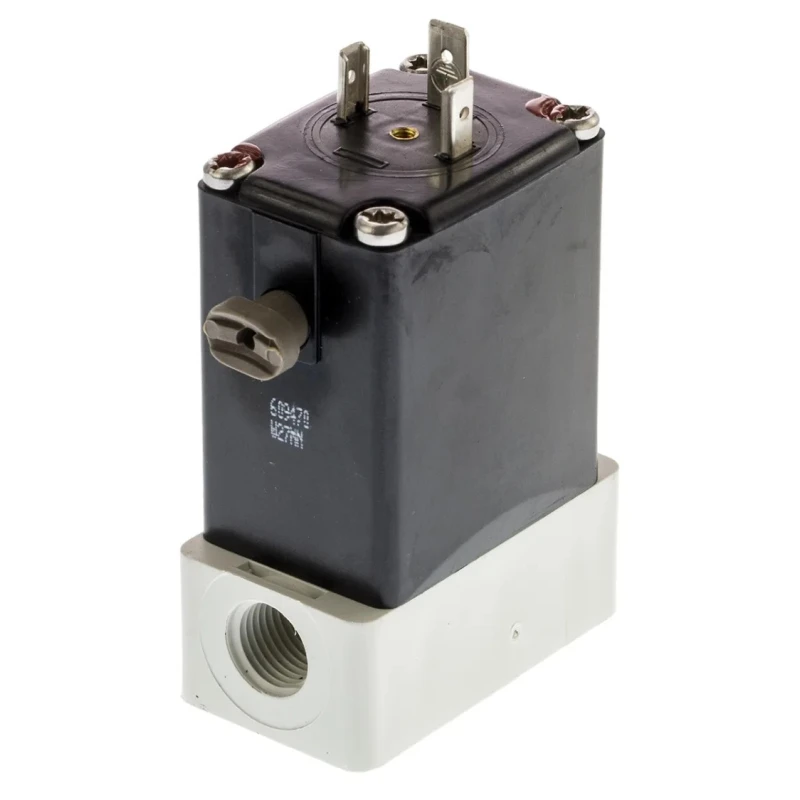

The coil system is vibration-proof with a block screwed design and manual override capability, enhancing reliability in harsh industrial environments. The valve also boasts zero head pressure capability and intermittent operation with a duty cycle of 40 percent over 30 minutes. The product is manufactured in Germany, meeting high-quality standards for industrial automation systems.

Constructed with polypropylene body compatibility for aggressive media applications. 3 port configuration with normally open/normally closed positions for varied flow control. 24V DC power supply ensures efficient solenoid actuation.

3 mm orifice diameter provides precise flow control with Kv of 0.25 m³/h. Maximum operating pressure rating of 4 bar. Operating temperature range from -40°C to 55°C. Fast response times with maximum opening and closing times of 20 ms.

360° adjustable 3-pin DIN connector for installation flexibility. Vibration-proof block screwed coil and manual override for durability.

This Burkert solenoid valve is ideal for industrial, chemical, laboratory, HVAC, and manufacturing applications where reliable fluid control of aggressive media is required. Its durable construction and precise electrical control provide confident operation in demanding environments. Explore more Burkert Solenoid Valve products and industrial valves on EnvMart to find tailored solutions for your automation systems.
