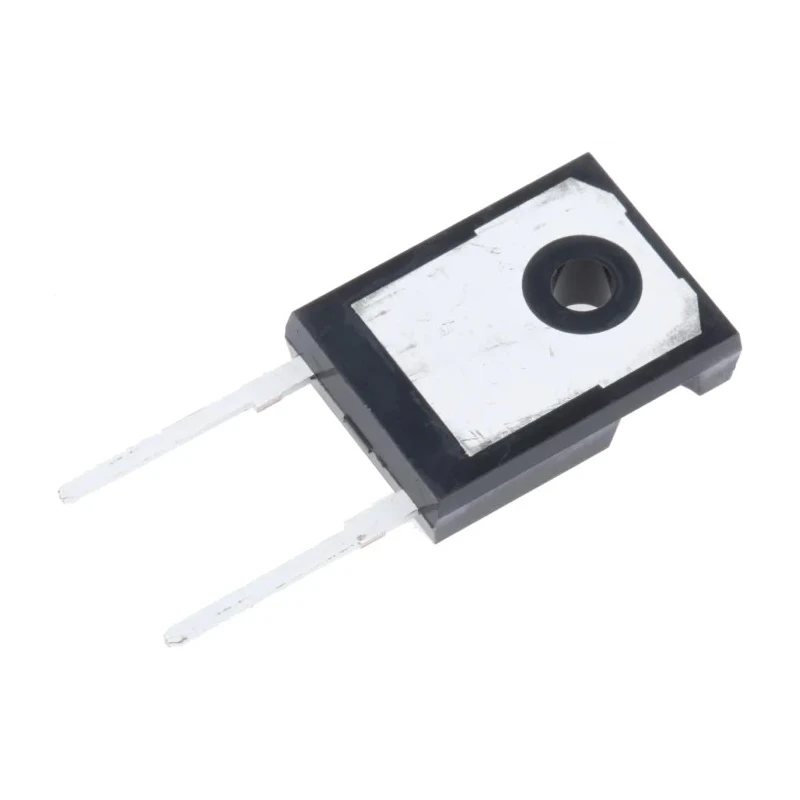

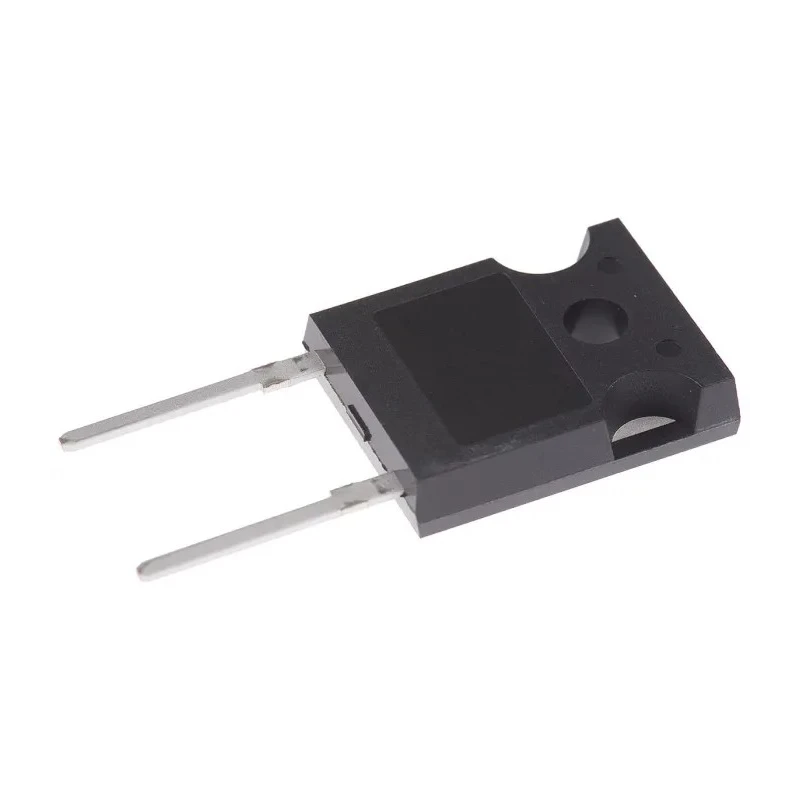

Vishay 1 kV 40 A Fast Recovery Switching Diode 2-Pin TO-247 Package VS-40EPF10-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-40EPF10-M3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-40EPF1.-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 475A |
| Maximum Forward Voltage Vf | 1.4V |
| Peak Reverse Recovery Time trr | 450ns |
| Vishay 1 kV 30 A Diode Switching 2-Pin TO-247Brand | Vishay |
Key Features
- Designed for high efficiency and versatile industrial applications.
- Maximum forward voltage of 1.4 V ensuring low conduction losses.
- Peak reverse repetitive voltage of 1 kV suitable for robust switching tasks.
- Fast recovery time of 450 ns enabling high-frequency operations.
- Operating temperature range from -40°C to 150°C for reliable performance.
- Single diode configuration with through-hole mount type for easy PCB integration.
- Peak non-repetitive forward surge current of 475 A for overload tolerance.
- Compliance with RoHS standards for environmental safety.
Product Description
Vishay VS-40EPF10-M3 is a high-performance, fast recovery switching diode engineered for industrial and electronic applications requiring efficient power conversion and protection. Featuring a maximum continuous forward current of 40 A and a peak reverse repetitive voltage of 1 kV, this diode is supplied in a rugged TO-247 through-hole package facilitating robust mounting and heat dissipation.
The diode exhibits a low maximum forward voltage of 1.4 V which minimizes conduction loss and heat generation during operation. Its fast recovery time of 450 ns enables use in high-frequency switching circuits, making it ideal for power supplies, motor controllers, and other power electronics devices.
Operating across a wide temperature range from -40°C to 150°C, the VS-40EPF10-M3 maintains reliable functionality in demanding environments. The diode can handle peak non-repetitive forward surge currents up to 475 A, providing resilience against transient overloads.
This single diode configuration is RoHS compliant, ensuring adherence to environmental protection standards. The component dimensions, including length of 15.87 mm, height and diameter of approximately 20.7 mm, make it suitable for compact electronic designs.
Typical industrial applications include power rectification, freewheeling diode circuits, and surface mount replacements in power electronics. Its through-hole mounting facilitates heat sink attachment and robust mechanical stability in laboratory, manufacturing, HVAC, automotive, and commercial power electronic assemblies.
Designed for high efficiency and versatile industrial applications. Maximum forward voltage of 1.4 V ensuring low conduction losses. Peak reverse repetitive voltage of 1 kV suitable for robust switching tasks. Fast recovery time of 450 ns enabling high-frequency operations.
Operating temperature range from -40°C to 150°C for reliable performance. Single diode configuration with through-hole mount type for easy PCB integration. Peak non-repetitive forward surge current of 475 A for overload tolerance.
Compliance with RoHS standards for environmental safety. Compact dimensions with length 15.87 mm and height 20.7 mm. Explore more Vishay semiconductor components and Schottky diodes on EnvMart for your electronic and industrial power solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-40EPF10-M3 is 40 A.
This model has a peak reverse repetitive voltage rating of 1 kV, making it suitable for robust switching tasks.
The fast recovery time of the VS-40EPF10-M3 is 450 ns, enabling high-frequency operations.
The operating temperature range for the Vishay VS-40EPF10-M3 is from -40°C to 150°C.
The maximum forward voltage drop is 1.4 V, which helps minimize conduction losses.
This diode is supplied in a TO-247 package, which facilitates robust mounting and heat dissipation.
The peak non-repetitive forward surge current rating is 475 A, providing resilience against transient overloads.
The Vishay VS-40EPF10-M3 has a pin count of 2.
It utilizes a through-hole mount type for easy PCB integration.
Yes, this diode is RoHS compliant, ensuring adherence to environmental safety standards.
The dimensions are 15.87 mm in length, 20.7 mm in height, and 5.31 mm in width.
Typical applications include power rectification, freewheeling diode circuits, and surface mount replacements in power electronics.
