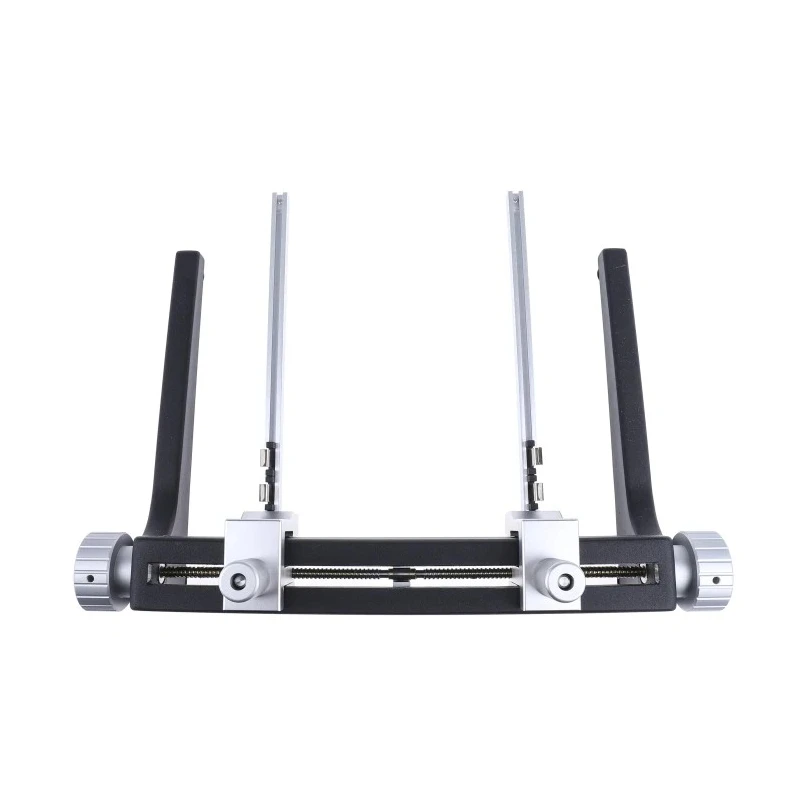

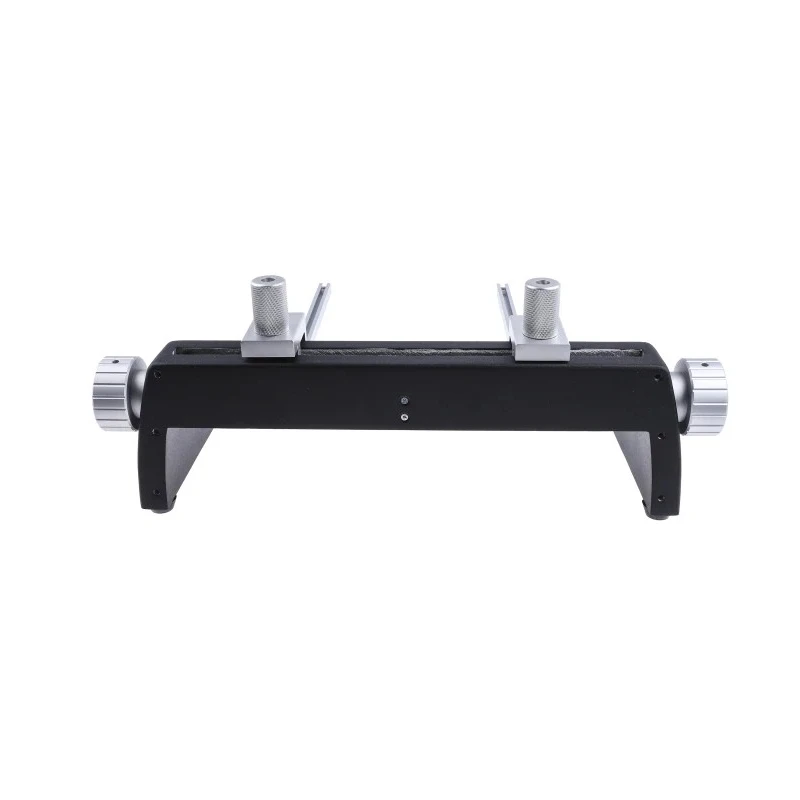

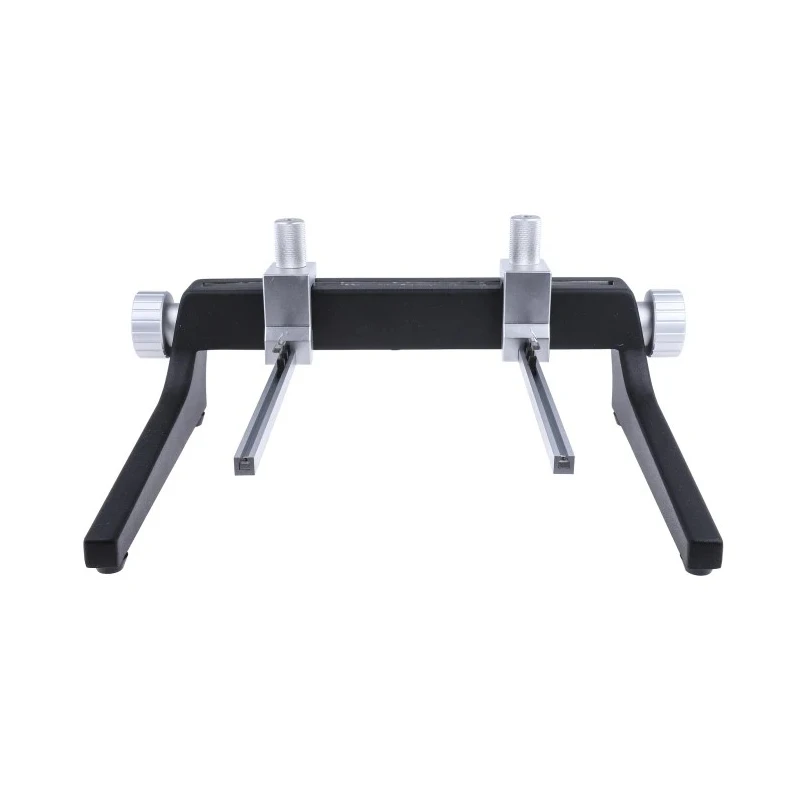

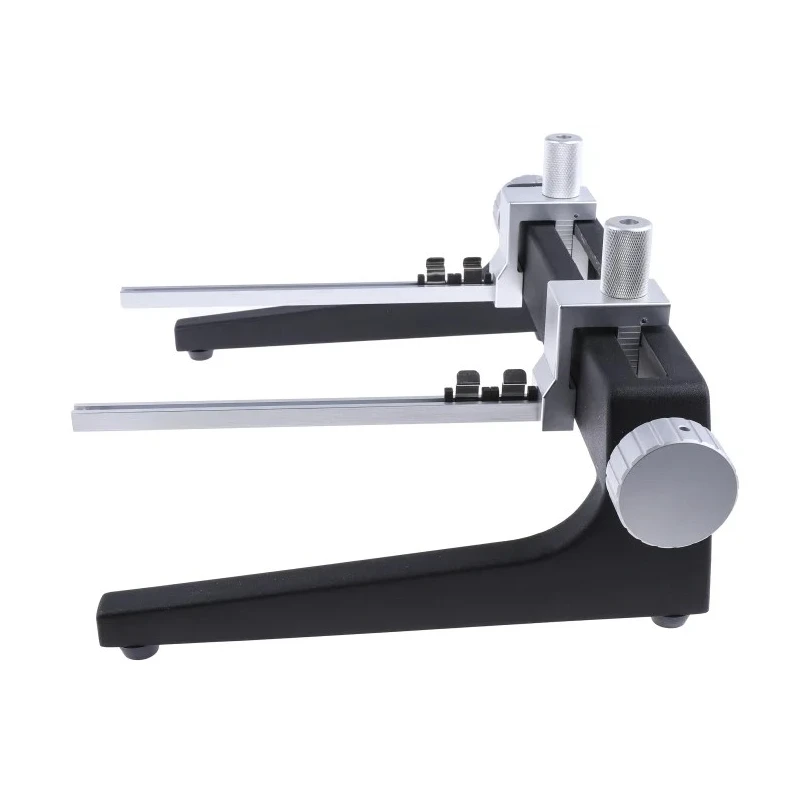

Metcal Soldering Accessory PCB Work Holder for Use with PCT-100 Focused Convection Pre-heater BH-100

Metcal BH-100 is a soldering accessory PCB work holder specifically engineered for use with the PCT-100 focused convection pre-heater. This combination provides enhanced thermal capacity essential for demanding applications such as lead-free soldering, multi-layered circuit boards, and assemblies with large ground planes. By directly targeting the underside of the printed circuit board, the BH-100 facilitates a significant thermal boost that improves soldering and hot air rework processes, resulting in reduced process times and increased productivity.

The design emphasizes a quick temperature ramp-up while maintaining a controlled cool-down phase to minimize thermal shock risks to sensitive PCBs and components. Featuring an input voltage of 230V and a heater rating of 450W, the unit delivers reliable and consistent heat output. The airflow of 10.2 CFM regulates heat distribution uniformly across the PCB surface, with variable temperature control adjustable up to 300°C to suit various thermal processing needs.

Compact and lightweight, measuring 205 mm in length, 155 mm in width, 65 mm in height and weighing 1.6 kg, the BH-100 is easy to integrate into laboratory, manufacturing, and repair environments. Its ESD safe construction ensures protection for electrostatic-sensitive components. This holder is RoHS-compliant and manufactured in China, maintaining high quality and environmental standards.

Compatible with PCT-100 focused convection pre-heater. Precise thermal targeting for improved soldering efficiency. Quick ramp-up and controlled cool-down minimizes board damage. 450W heater rating provides effective heat for complex assemblies.

Airflow of 10.2 CFM ensures even thermal distribution. Variable temperature control up to 300°C adapts to varied processes. Compact size and ESD safe design for operator and component safety. Manufactured in China meeting RoHS compliance.

This soldering accessory is ideal for industrial electronics manufacturing, laboratory rework stations, and precision repair operations where controlled heat application is critical. Explore more Soldering Accessories and specialized tools to optimize your electronics assembly and maintenance workflows at EnvMart.
