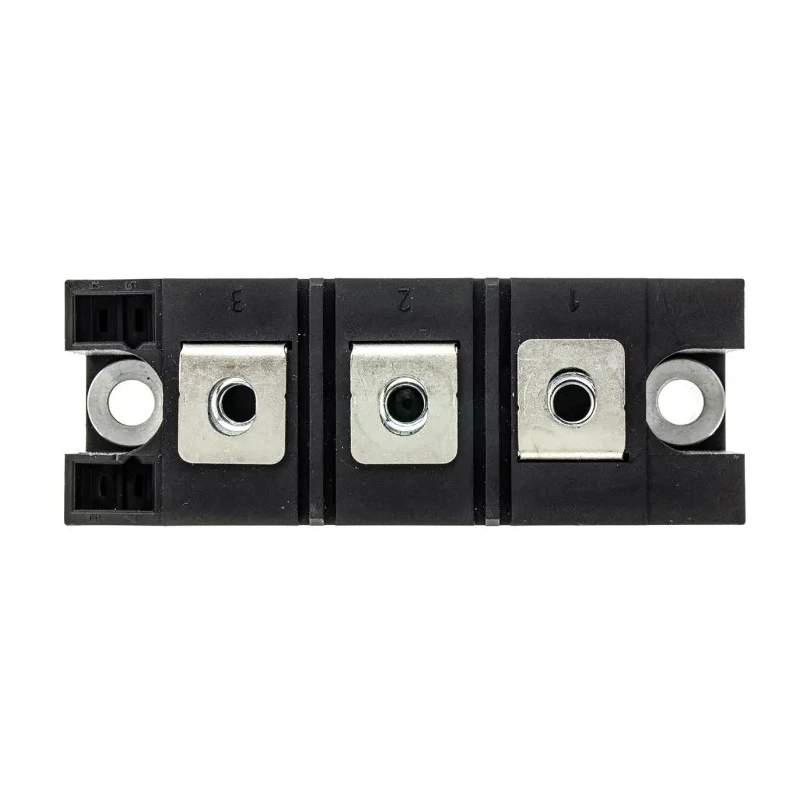

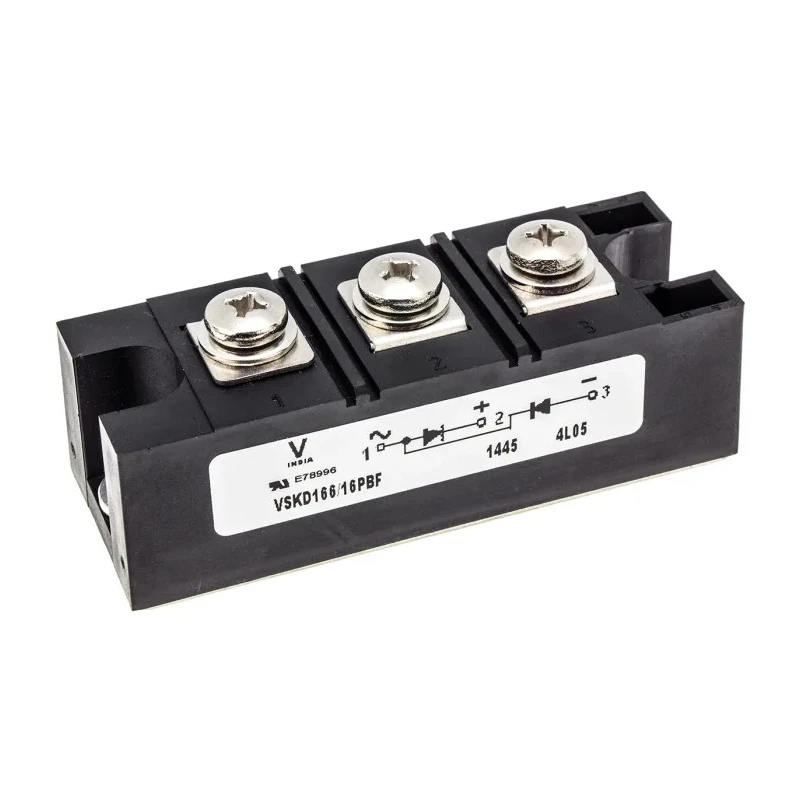

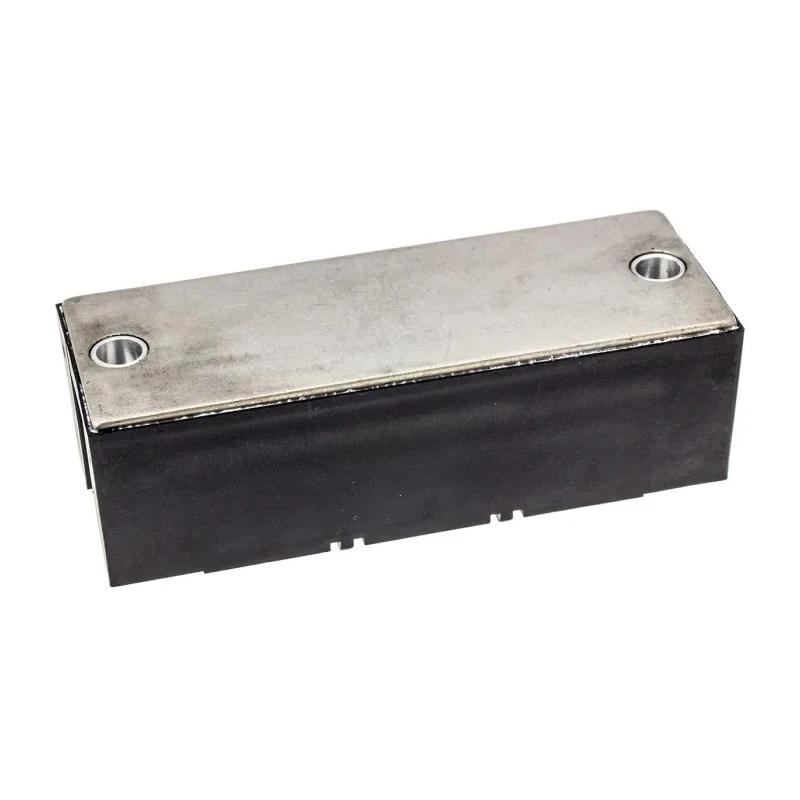

Vishay 1600 V 165 A Standard Recovery Diode 3-Pin INT-A-PAK VS-VSKD166/16PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-VSKD166/16PBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 165A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5kA |
| Maximum Forward Voltage Vf | 1.43V |
Key Features
- Panel mount with industry-standard INT-A-PAK package type.
- Recovery rectifier diode with 3-pin configuration suitable for power electronics.
- Maximum forward voltage drop of 1.43 V ensures efficient conduction.
- Operates within -40°C to 150°C temperature range for versatile industrial conditions.
- Features peak non-repetitive forward surge current capacity of 5 kA for transient handling.
- Compact dimensions measuring 94 mm length, 35 mm width, and 30 mm height.
- Pin count of 3 supports easy integration on power control panels.
- Peak reverse current is low at 10 mA ensuring minimal leakage and heat generation.
Product Description
Vishay VS-VSKD166/16PBF is a high-performance standard recovery diode engineered to deliver reliable power rectification with a peak reverse voltage rating of 1600 V and a maximum continuous forward current of 165 A. This 3-pin diode comes in the INT-A-PAK package type, suitable for panel mounting in various industrial power electronic applications.
Designed to handle demanding conditions, it supports operation across a temperature range of -40°C up to 150°C, ensuring robust performance in industrial, manufacturing, and electrical power systems. Its maximum forward voltage of 1.43 V contributes to efficiency in conduction and reduces power losses during switching.
The diode also boasts a peak non-repetitive forward surge current of 5 kA, providing excellent transient handling capacity for surge events in power circuits. Its low peak reverse current of 10 mA ensures minimal leakage current, enhancing operational reliability.
With compact physical dimensions (94 mm length, 35 mm width, and 30 mm height) and standard 3-pin configuration, it can be easily mounted on panels, making it versatile for use in laboratory, industrial power rectification, and power conversion applications.
Panel mount type with INT-A-PAK package. Recovery rectifier design for high efficiency. Wide operating temperature range from -40°C to 150°C. High surge current capability for transient tolerance. Compact size and standard pin configuration for ease of installation.
Reliable switching behavior with low forward voltage drop. Low leakage current enhancing device lifetime.
This Vishay diode is ideal for use in industrial power electronics, renewable energy power converters, motor drives, and other applications requiring robust and efficient diode rectification. It supports manufacturing, electrical distribution, and laboratory testing environments where high current and voltage rectifiers are critical components.
Explore the full range of Vishay semiconductor diodes on EnvMart for efficient, durable, and high-quality electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 165 A.
This model has a peak reverse voltage rating of 1600 V.
It operates within a temperature range of -40°C to 150°C.
The maximum forward voltage drop is 1.43 V.
This diode comes in an INT-A-PAK package type suitable for panel mounting.
The diode has a peak non-repetitive forward surge current capacity of 5 kA.
It features a standard 3-pin configuration.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
The peak reverse current is low at 10 mA.
It is suitable for industrial power electronics, renewable energy power converters, and motor drives.
The diode configuration type is series.
The country of origin for this diode is India.
