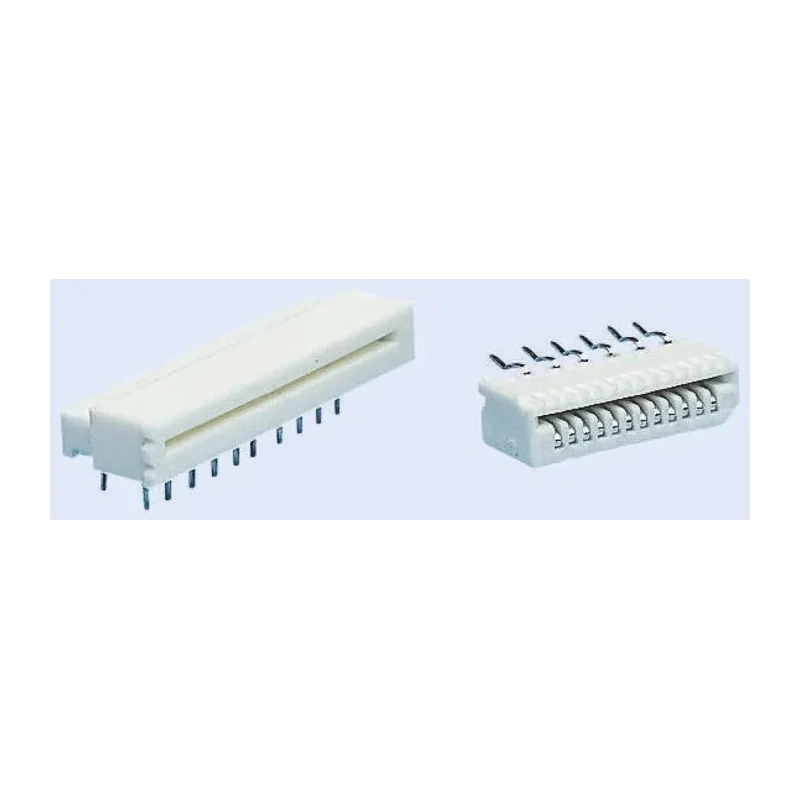

Molex 1.25 mm Pitch 8 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2084
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a zero insertion force (ZIF) slide type actuator for easy and secure FPC connection.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for reliability.
- Housing made of durable polybutylene terephthalate suitable for tight packaging applications.
- Rated for 1 amp current and 200 volts maximum operating voltage.
- Operating temperature ranges from -20°C to 80°C ensuring stable performance in varied environments.
- Equipped with locking mechanism and staggered solder tails for enhanced connection integrity.
- Ideal for use in electronic automotive applications and compact PCB designs.
- Right angle orientation optimizes PCB real estate and facilitates assembly.
Product Description
Molex 39-53-2084 is a high-quality 1.25 mm pitch, 8 way right angle female FPC connector designed for through-hole mounting and solder termination. This connector belongs to the 5597 series, featuring zero insertion force (ZIF) technology that minimizes wear and tear during repeated cycles.
The connector utilizes phosphor bronze contacts with tin bismuth over nickel plating, providing excellent conductivity and corrosion resistance. The housing is made from polybutylene terephthalate, offering robust mechanical strength while maintaining a compact form factor, perfect for tight packaging spaces.
Rated for a maximum current of 1 amp and voltage of 200 volts, this FPC connector operates reliably within a temperature range of -20°C to 80°C. It includes a locking mechanism and staggered solder tails that improve assembly stability and electrical connection integrity. The right angle orientation helps conserve PCB space and streamline manufacturing.
This connector is particularly suited for electronic automotive and industrial applications where secure, space-saving connector solutions are required. Its slide-type actuator ensures easy insertion and removal of FPC cables without damage.
Zero insertion force (ZIF) slide actuator for minimal connector wear. Phosphor bronze contacts with tin bismuth over nickel plating. Durable polybutylene terephthalate housing for mechanical strength. Rated 1 amp current and 200 volts maximum operating voltage.
Operating temperature from -20°C to 80°C for diverse environments. Locking mechanism and staggered solder tails for connection security. Right angle orientation for optimized PCB layout and space efficiency. Ideal for electronic automotive and compact PCB applications.
Explore more FPC Connectors and PCB connector solutions on EnvMart for industrial and commercial electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this connector is 200 volts.
This model is rated for a maximum current of 1 amp.
It utilizes through-hole mounting for installation.
The pitch size of this connector is 1.25 mm.
The contacts are made of phosphor bronze with tin bismuth over nickel plating, and the housing is constructed from polybutylene terephthalate.
The operating temperature range is from -20°C to 80°C.
Yes, it includes a locking mechanism to enhance connection integrity.
This connector has 8 contacts.
The connector has a right angle orientation, which optimizes PCB real estate.
It features a zero insertion force (ZIF) slide type actuator for easy and secure FPC connection.
It is particularly suited for electronic automotive applications and compact PCB designs.
This connector belongs to the 5597 series.
