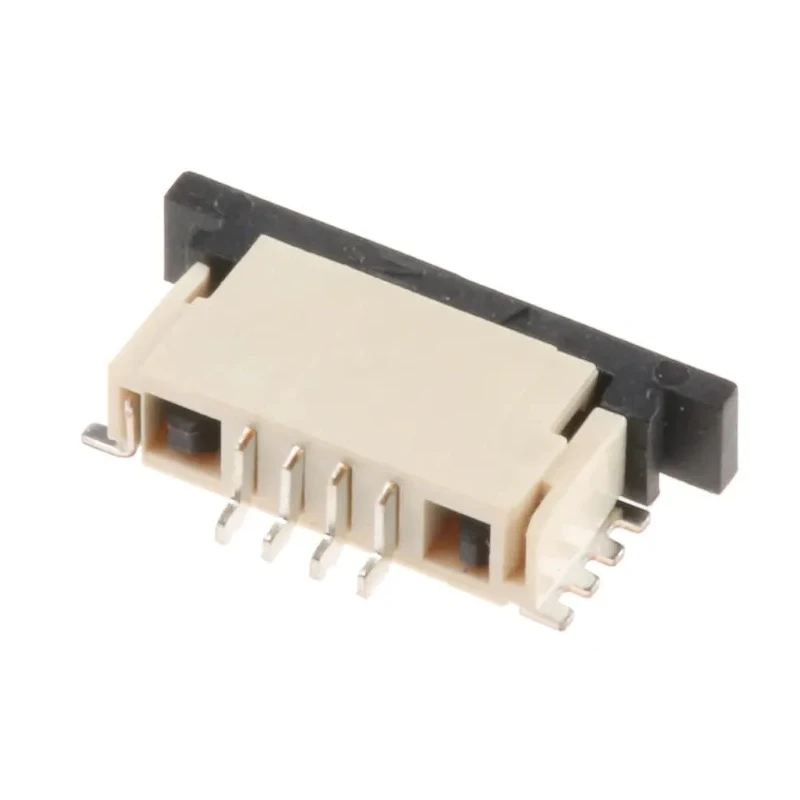

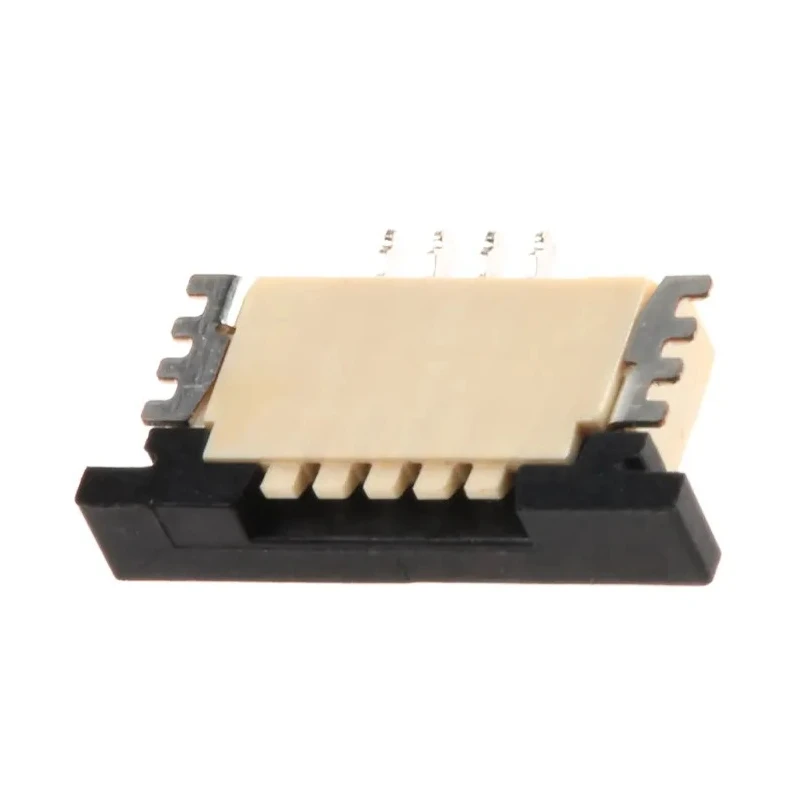

TE Connectivity FPC 1 mm Pitch 4 Way Right Angle Female FPC Connector, Solder 84952-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84952-4 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Compact 1 mm pitch design suitable for precise PCB connections.
- Right angle female connector with bottom contact position for versatile installation.
- Phosphor bronze contact material with tin over nickel plating for reliable conductivity.
- Supports current rating of 1 amp and voltage up to 200V AC.
- Zero Insertion Force (ZIF) mechanism with slide lock actuator for secure cable insertion.
- Liquid crystal polymer housing offers durability and temperature resilience from -40°C to 85°C.
- Solder tabs provide added retention on PCB to prevent disconnections.
- Single row, 4-contact configuration suitable for FPC/FFC cables in electronics.
Product Description
TE Connectivity 84952-4 FPC Connector is a 1 mm pitch, 4 way female connector designed for reliable electrical connections in compact spaces with right angle orientation. It features surface mount solder termination and a bottom contact position ensuring strong mechanical and electrical contact on printed circuit boards.
The contacts are made of phosphor bronze, plated with tin over nickel to enhance electrical conductivity and corrosion resistance. Its housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal stability for operation between -40°C and 85°C.
This connector includes a Zero Insertion Force (ZIF) slide lock actuator which allows for easy cable insertion without damaging the flex PCB cable, increasing mating cycle durability and retention especially in high vibration environments. Solder tabs enhance retention on the PCB, preventing accidental disconnections.
The 4 contact, single row configuration with 1A current rating and 200V AC voltage rating makes it suitable for various electronics including hand held scanners, set-top boxes, PCs, business, industrial, and medical equipment. These connectors are suitable where space is limited and reliable signal routing is necessary.
Compact 1 mm pitch female FPC connector with right angle orientation. Surface mount solder termination with bottom contact position. Phosphor bronze contacts with tin over nickel plating. Zero Insertion Force (ZIF) slide lock actuator for secure, damage-free cable insertion.
Liquid crystal polymer housing offers high mechanical strength and temperature resistance. Solder tabs provide additional PCB retention. Rated for 1 amp current and 200V AC voltage. Ideal for industrial, medical, and consumer electronic applications.
This product is offered new and ready for immediate integration into electronic device assembly processes. Explore more connectors in the FPC Connector category at EnvMart for diverse connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector is 1 mm, making it suitable for compact PCB connections.
It supports a current rating of 1 amp and a voltage rating of up to 200V AC.
The contacts are made of phosphor bronze and are plated with tin over nickel to enhance conductivity and corrosion resistance.
This connector operates within a temperature range of -40°C to 85°C.
The ZIF mechanism allows for easy cable insertion without damaging the flex PCB cable, utilizing a slide lock actuator for secure connection.
It uses surface mount solder termination, which provides strong mechanical and electrical contact on printed circuit boards.
This model features a single row configuration with 4 contacts.
The connector is designed with a right angle orientation, allowing for versatile installation in compact spaces.
The housing is made from liquid crystal polymer, providing high mechanical strength and temperature resilience.
It is suitable for various electronics applications including handheld scanners, set-top boxes, PCs, and medical equipment.
Solder tabs provide additional retention on the PCB to prevent accidental disconnections during operation.
The country of origin for this connector is India.
