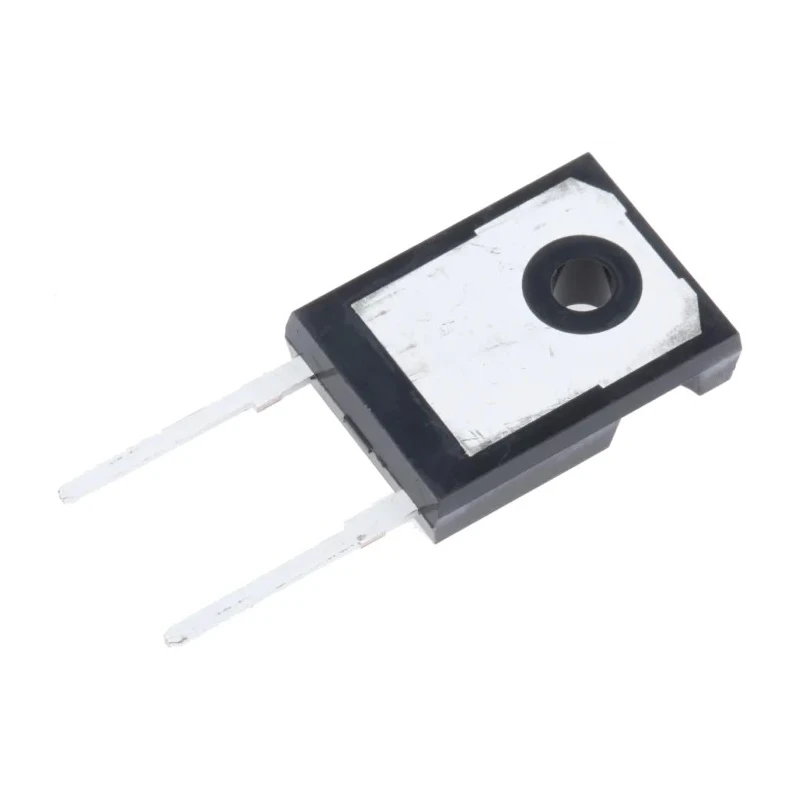

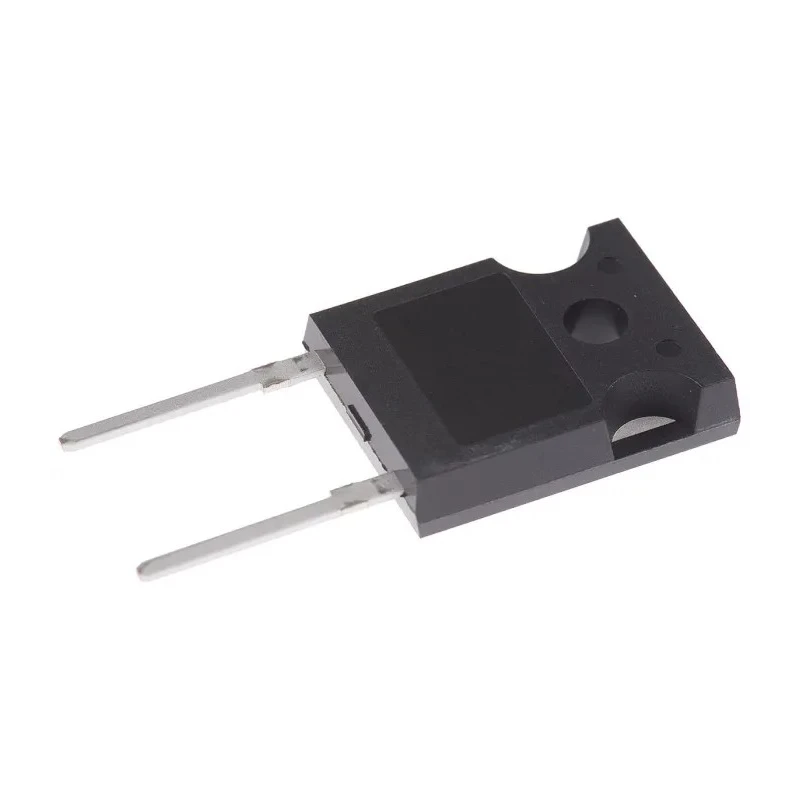

Vishay 400 V 60 A Switching Diode 2-Pin TO-247AC VS-60EPU04-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-60EPU04-N3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VS-60EPU04-N3 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 60ns |
| Vishay 400V 60A, Silicon Junction Diode, 2-Pin TO-247AC 60EPU04Brand | Vishay |
Key Features
- Maximum continuous forward current rated at 60 A for high load capacity.
- Peak reverse repetitive voltage of 400 V for robust voltage performance.
- Compact TO-247AC package with through-hole mount design.
- Ultrafast recovery time of 60 ns enabling high-frequency switching.
- Operating temperature range from -55°C to 175°C for versatile industrial use.
- Low forward voltage drop of 1.25 V improving efficiency and reducing power loss.
- Peak non-repetitive forward surge current of 600 A for transient handling.
- 2-pin configuration suitable for power electronics and rectification circuits.
Product Description
Vishay VS-60EPU04-N3 Switching Diode 2-Pin TO-247AC is engineered for reliable operation in demanding electronic environments where high current and voltage handling is required. This diode features a maximum continuous forward current of 60 A and a peak reverse voltage of 400 V, making it suitable for industrial, power supply, and electronic circuit protection applications.
The device is housed in a TO-247AC through-hole metal package, providing excellent thermal dissipation and ruggedness. With a peak reverse recovery time of 60 ns and a maximum forward voltage drop of 1.25 V, it is optimized for ultrafast switching to increase efficiency and reduce heat generation.
The diode operates within a wide temperature range from -55°C to 175°C, enabling robust performance in harsh conditions. A peak non-repetitive forward surge current rating of 600 A allows the diode to withstand transient spikes without damage.
Designed with a 2-pin configuration, this Vishay diode is ideal for integration into switching power supplies, power rectifiers, and other semiconductor applications requiring high surge and continuous current capacity. The product is manufactured according to RoHS standards, ensuring compliance with environmental and safety regulations.
Maximum continuous forward current of 60 A ensures high load handling. Peak reverse voltage rating of 400 V provides voltage stability. Compact TO-247AC package supports efficient mounting and cooling. Ultrafast recovery time improves device switching speed.
Wide operating temperature range for industrial and commercial environments. Low forward voltage reduces power loss in circuits. High surge current capability enables transient tolerance. 2-pin construction simplifies installation in power circuits.
RoHS compliant for environmental safety and regulatory adherence. Applicable for power rectifiers, switching supplies, and electronic control units. Explore more Vishay semiconductor products and switching diodes at EnvMart for industrial and laboratory applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 60 A, allowing for high load capacity in various applications.
The peak reverse repetitive voltage is rated at 400 V, providing robust voltage performance for electronic circuits.
It is housed in a TO-247AC package with a through-hole mount design, facilitating efficient installation and thermal dissipation.
The peak reverse recovery time is 60 ns, which enables high-frequency switching capabilities.
The operating temperature range is from -55°C to 175°C, making it suitable for diverse industrial environments.
The maximum forward voltage drop is 1.25 V, which helps improve efficiency and reduce power loss in circuits.
The peak non-repetitive forward surge current is rated at 600 A, allowing it to handle transient spikes effectively.
This diode features a 2-pin configuration, suitable for integration into various power electronics applications.
The dimensions are 15.9 mm in length, 5.3 mm in width, and 20.7 mm in height, with a diameter of 20.7 mm.
Yes, the diode is manufactured according to RoHS standards, ensuring compliance with environmental and safety regulations.
This model is classified as a switching rectifier, designed for efficient operation in power supply applications.
It is suitable for use in power rectifiers, switching power supplies, and electronic control units, among other semiconductor applications.
