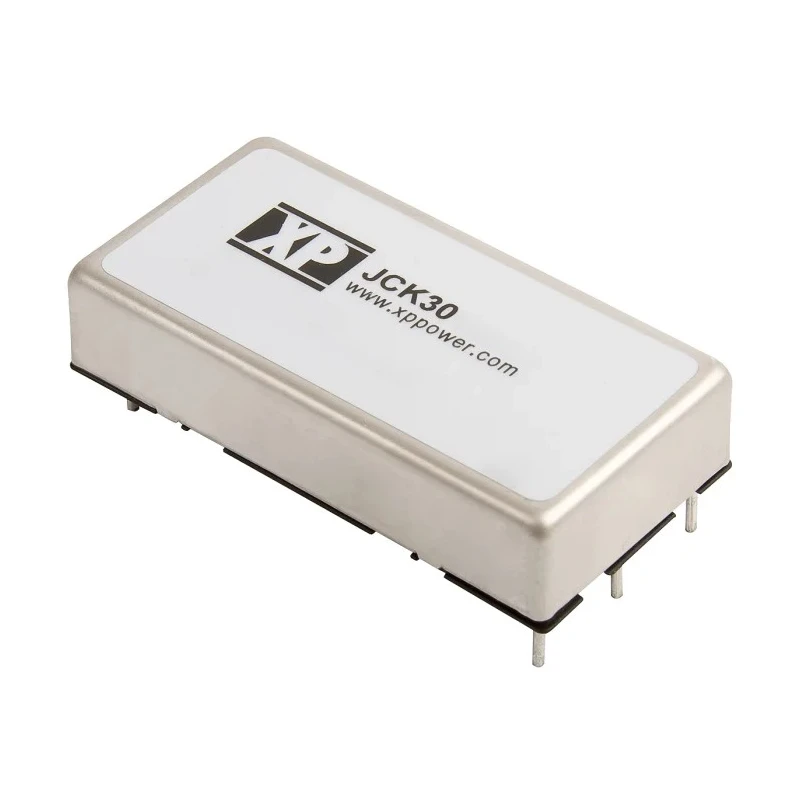

XP Power Isolated 30W DC-DC Converter 12V DC Output 2.5A 18-36V Input Through Hole JCK3024S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 12V dc/ 2 |
| Brand | XP Power |
| Efficiency | 92% |
| Length | 50.8mm |
| Model | JCK3024S12 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 430000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 2.5A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High efficiency up to 92% ensures minimal power loss during operation.
- Wide operating temperature range from -40°C to 100°C allows use in harsh environments.
- 1600 VDC isolation provides excellent electrical safety and noise immunity.
- Compact dimensions of 50.8mm length, 25.4mm width, and 10.16mm depth enable easy board mounting.
- Single output design suited for reliable power supply applications.
- Remote on/off functionality facilitates precise control in electronic systems.
- Long MTBF of 430,000 hours guarantees product reliability and durability.
- Manufactured in Taiwan, Province Of China ensuring quality production standards.
Product Description
XP Power JCK3024S12 is a high-quality 30W isolated DC-DC converter featuring a 12V DC output voltage and 2.5A output current. Designed for electronics, power supply, and industrial applications, it operates efficiently with a maximum input voltage of 36V DC and a minimum input voltage of 18V. The unit employs a through hole DIP package suitable for board mounting, measuring 50.8mm in length, 25.4mm width, and 10.16mm depth. It supports an input voltage ratio of 2:1, providing flexibility in powering systems requiring voltage conversion.
This converter ensures robust electrical isolation at 1600 VDC, protecting circuits and enhancing noise immunity. Its efficiency rating of 92% minimizes heat generation and energy wastage, crucial for compact and sensitive electronic designs. The device has a wide operating temperature range from -40°C to 100°C, making it suitable for industrial, laboratory, manufacturing, and commercial environments.
The JCK30 series includes remote on/off functionality for convenient system integration and control. With a mean time between failures (MTBF) of 430,000 hours, this DC-DC converter offers reliable and durable operation for extended periods. Manufactured in Taiwan, Province Of China, the product complies with rigorous quality standards.
High efficiency of 92% reduces energy loss and thermal output. Wide temperature range from -40°C to 100°C supports demanding environments. 1600 VDC electrical isolation provides safety and noise reduction. Compact through hole DIP package for easy PCB mounting.
Single output channel with 12V, 2.5A rating. 2:1 input voltage ratio compatible with various sources. Remote on/off control enhances operational flexibility. 430,000-hour MTBF ensures long-term reliability. Ideal for industrial, laboratory, HVAC, and manufacturing applications.
This JCK3024S12 DC-DC converter is an excellent choice for power management in electronic systems requiring isolated voltage conversion with stable performance and high durability. Its compact size and efficient operation make it suitable for embedding in power supplies, instrumentation, and industrial control units. Explore EnvMart's extensive range of DC/DC Converters for compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 30W.
This unit operates with a minimum input voltage of 18V and a maximum input voltage of 36V.
It has an efficiency rating of 92%, which minimizes power loss during operation.
The dimensions of this model are 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
It can operate within a wide temperature range of -40°C to 100°C.
This converter features a single output channel.
It employs a through hole DIP package suitable for board mounting.
The isolation voltage is 1600 VDC, providing excellent electrical safety and noise immunity.
The MTBF for this unit is 430,000 hours, indicating reliable operation over time.
Yes, it includes remote on/off functionality for precise control in electronic systems.
It supports an input voltage ratio of 2:1, allowing flexibility in powering systems.
This model is manufactured in Taiwan, Province Of China, ensuring quality production standards.
