Vishay VS-130MT160KPBF Bridge Rectifier Module 1600 V 1.18 kA 6-Pin Panel Mount INT-A-PAK

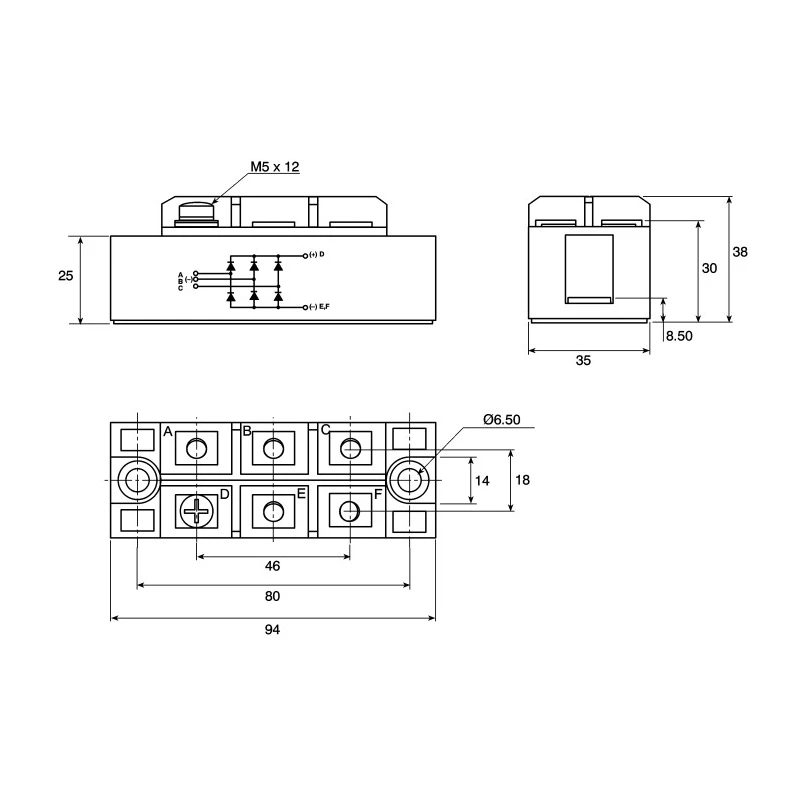

Vishay VS-130MT160KPBF Bridge Rectifier Module is a high-performance 3-phase single configuration rectifier designed for converting alternating current (AC) input into direct current (DC) output with full-wave rectification. It is housed in the INT-A-PAK industrial standard package, offering a compact form factor with dimensions of 94 mm length, 35 mm width, and 30 mm height, making it suitable for panel mounting.

This module supports a high peak reverse repetitive voltage rating of 1600 V and can handle forward currents up to 160 amperes, delivering a peak non-repetitive forward surge current of 1.18 kA, making it ideal for demanding industrial, manufacturing, and power conversion applications. It operates reliably in a wide temperature range from -40°C to 150°C.

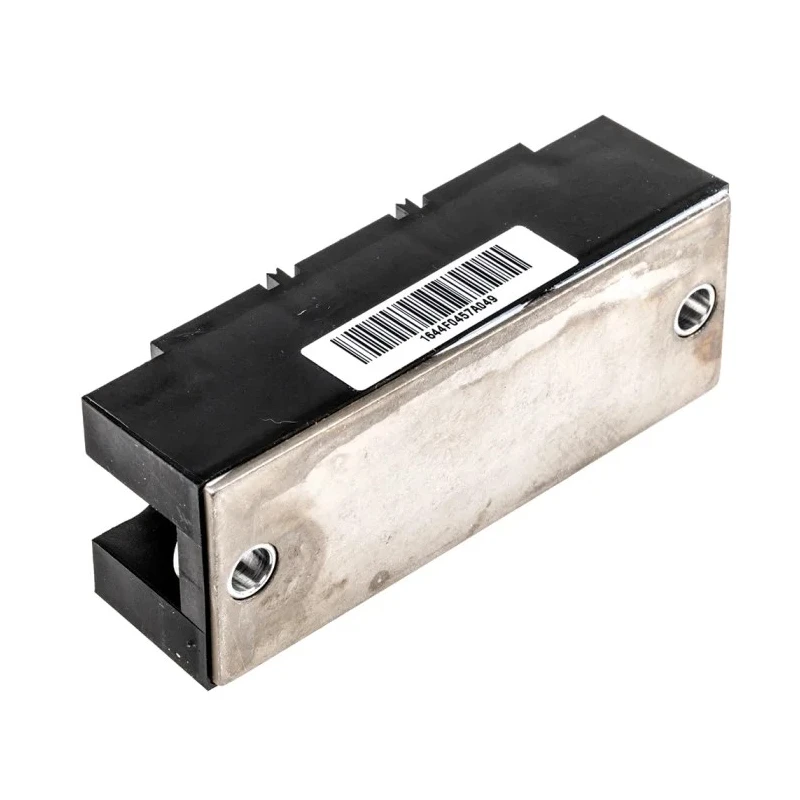

The bridge rectifier features a low peak forward voltage of 1.63 V and minimal peak reverse current leakage of 10 mA, contributing to efficient power conversion and reduced energy losses. The package provides high thermal conductivity and an electrically insulated case, ensuring excellent thermal performance to maintain device longevity and system stability.

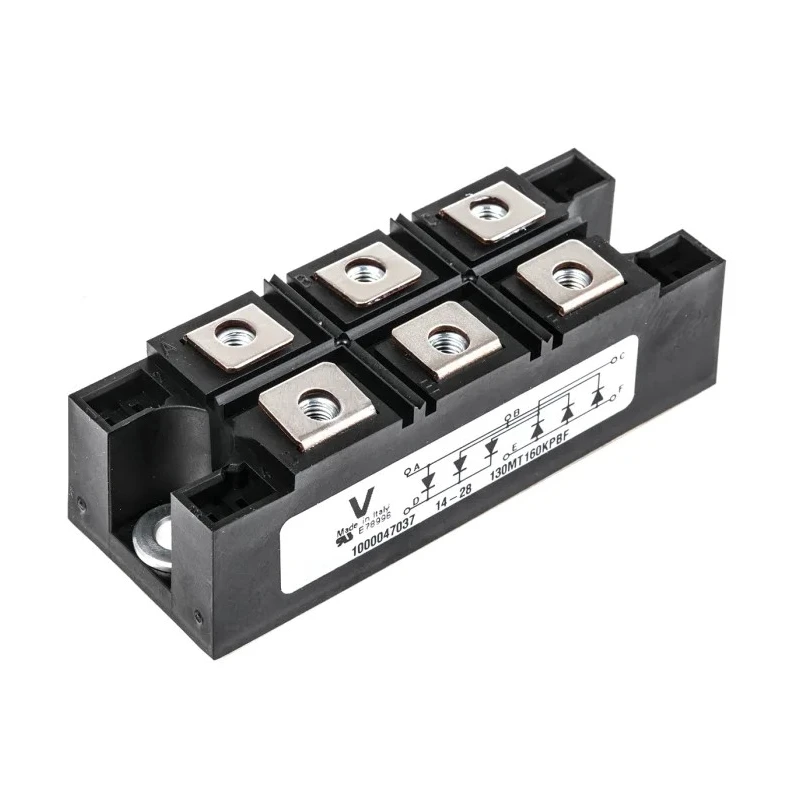

Designed for three-phase applications, this bridge rectifier module includes 6 screw terminal pins allowing secure electrical connection and ease of installation. It also offers an isolating voltage rating of 4000 Vrms for enhanced electrical safety and reliability.

Ideal for use in industrial electronics, power supplies, HVAC systems, water treatment plants, and manufacturing equipment, the Vishay VS-130MT160KPBF bridge rectifier module provides robust and efficient AC to DC conversion performance.

Supports forward current of 160 amperes for robust performance. Operates within temperatures from -40°C to 150°C. Compact dimensions measuring 94 mm length, 35 mm width, and 30 mm height. Three-phase bridge rectifier design with screw terminal connections.

Features excellent power to volume ratio with high thermal conductivity and an electrically insulated case. Isolating voltage of 4000 Vrms enhances electrical safety. Peak forward voltage of 1.63 V ensures efficient rectification.

Low peak reverse current of 10 mA minimizes leakage. INT-A-PAK industry standard package ensures reliability. Suitable for industrial and electronic applications requiring full-wave rectification.
