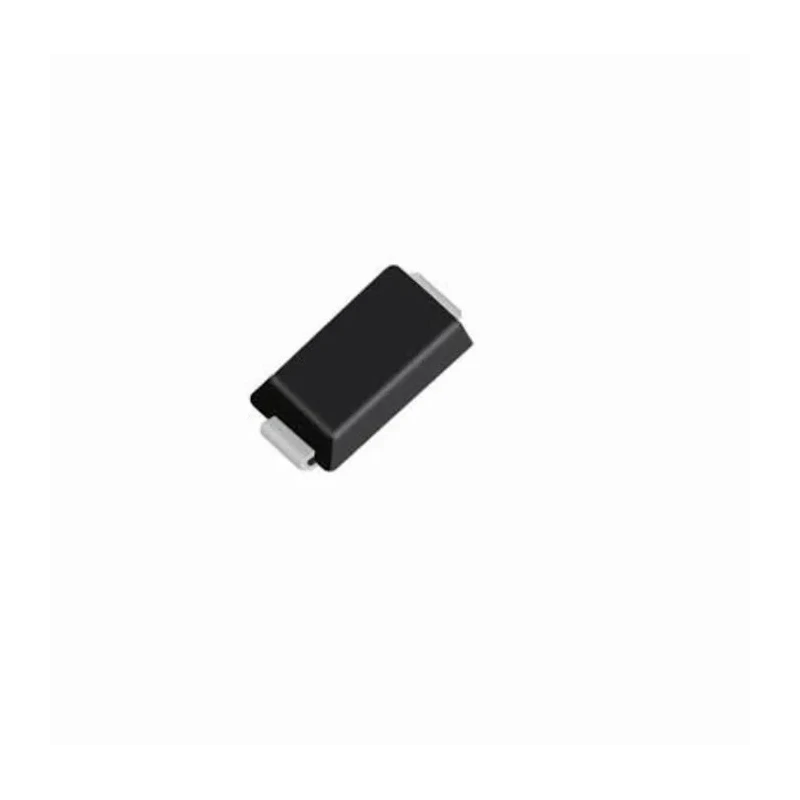

DiodesZetex 1 kV 1 A Soft Recovery Diode Surface Mount DO-219AA FS1MED-7

DiodesZetex FS1MED-7 is a surface mount soft recovery diode designed for reliable AC to DC rectification in electronic circuits. It features a maximum continuous forward current of 1 A and peak reverse repetitive voltage up to 1 kV, making it suitable for high voltage and current applications.

The soft recovery rectifier type of this diode helps reduce switching losses and electromagnetic interference, improving efficiency in power electronics. It is housed in a compact DO-219AA package measuring 3.9 mm in length, 2 mm in width, and 1.2 mm in height, which supports high-density PCB assemblies.

This diode is ideal for use as a snubber diode in quick charger adapters, as well as discrete bridge rectifiers in LED lighting circuits. Its low leakage current and glass passivated die enhance device stability and longevity. Operating temperature range spans from -50°C minimum to 105°C maximum, supporting harsh environments typical in automotive and industrial applications.

The FS1MED-7 meets stringent automotive standards AEC-Q100, AEC-Q200, and AEC-Q101 ensuring quality and reliability in automotive electronics. Soft recovery rectifier reduces power loss in fast switching applications. Compact DO-219AA surface mount package for space-saving circuit design.

Rated for 1 A continuous forward current and 1.1 V forward voltage drop. Supports peak reverse voltage of 1 kV with low leakage current. Wide operating temperature from -50°C to 105°C for versatile use. Glass passivated die construction enhances reliability.

Commonly used as snubber diode in charger adapters and LED bridges. Qualified to automotive standards AEC-Q100, AEC-Q200, and AEC-Q101. This diode is a practical choice for industrial, automotive, consumer electronics, and power supply designs requiring efficient and robust rectification components.
