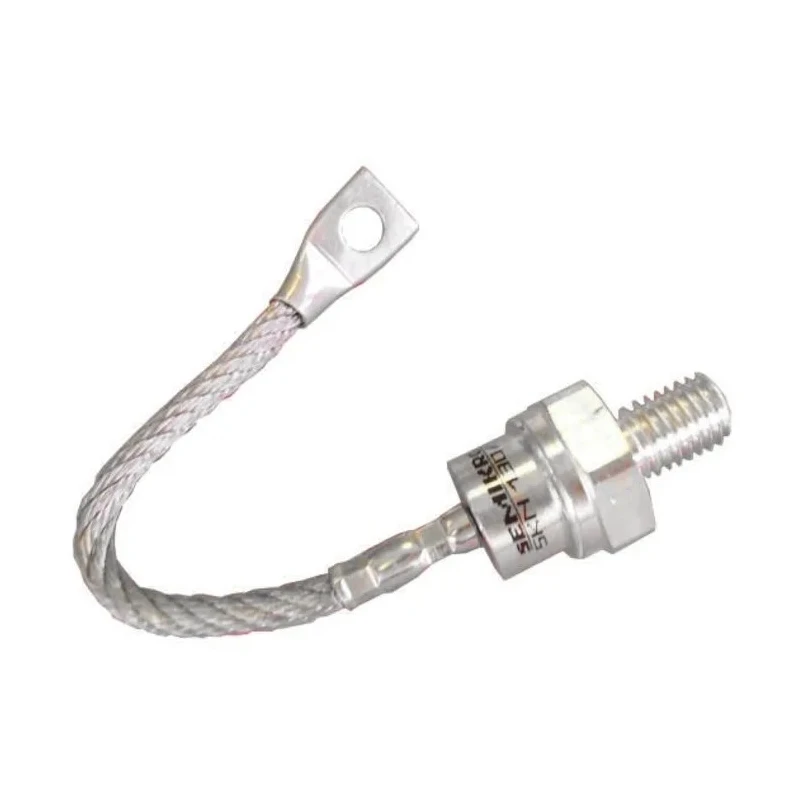

Semikron Danfoss Stud Mount Rectifier Diode 2-Pin E-12 1200 V 70 A SKN 70/12

Semikron Danfoss SKN 70/12 is a high-current stud mount rectifier diode designed for reliable power conversion in industrial and electronic semiconductor applications. It features a stud anode diode configuration housed in a robust E-12 package type, ensuring excellent thermal coupling with heatsinks for enhanced durability and performance under high operating currents. The diode supports a maximum continuous forward current of 70 A and a peak reverse repetitive voltage rating of 1200 V, making it suitable for demanding environments.

With a maximum forward voltage drop of 1.5 V and peak non-repetitive forward surge current of 1.2 kA, this diode offers excellent surge protection and efficient conduction in rectification circuits. Its operation spans a wide temperature range from -40°C to 180°C, allowing use in harsh industrial and electronic conditions. The diode's 2-pin stud mounting design optimizes installation and heat dissipation.

The hermetically sealed case enhances reliability by protecting internal components from environmental factors, securing long-term operation even in challenging settings. Its compact form factor includes a length of 146 mm and width of 12 mm. Manufactured in Brazil, the SKN 70/12 exemplifies quality and high performance for applications such as power supplies, rectifiers, converters, and other semiconductor equipment requiring robust rectifier diodes.

This diode features a robust stud anode configuration for reliable high current applications. It is designed for stud mounting with an E-12 package type to optimize thermal coupling with a heatsink. Maximum forward voltage drop is 1.5 V, with peak non-repetitive forward surge current of 1.2 kA.

Operating temperature ranges from -40°C minimum to 180°C maximum, suitable for demanding industrial environments. The diode has 2 pins and compact dimensions with 146 mm length and 12 mm width. It offers peak reverse repetitive voltage of 1200 V and a low peak reverse current of 10 mA.

Hermetically sealed case construction ensures long-term reliability under high currents and temperatures. Manufactured in Brazil, this component is ideal for power rectification in industrial and electronic semiconductor applications.
