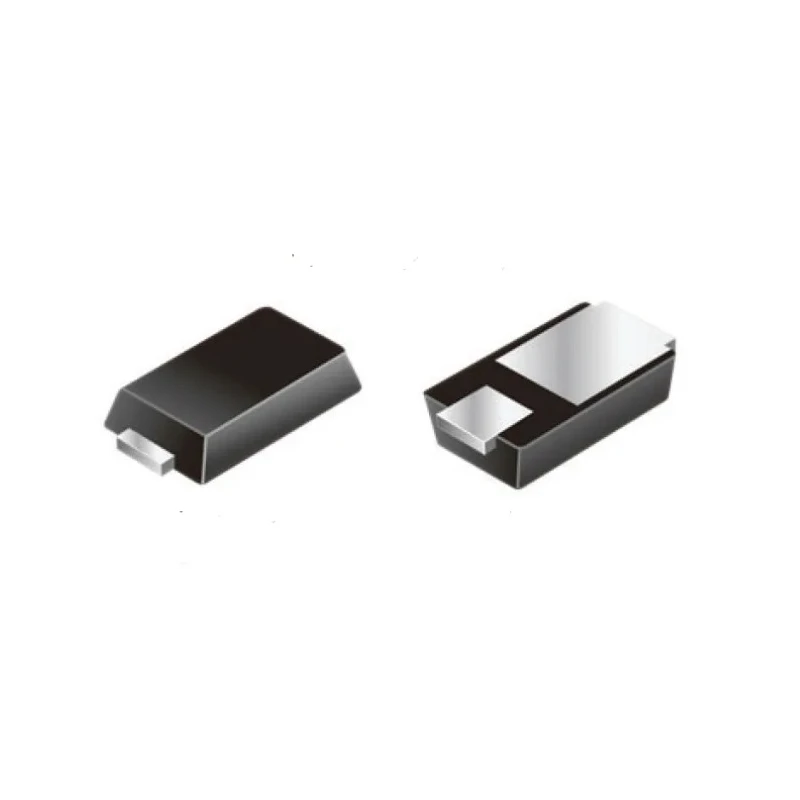

Vishay 100 V 1 A General Purpose Rectifier & Schottky Diode Surface Mount MicroSMP VS-1EQH01HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-1EQH01HM3/H |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.72V |
Key Features
- The diode features a maximum forward voltage drop of 0.72 V to reduce power losses.
- It supports peak non-repetitive forward surge current up to 30 A for high transient durability.
- Operating temperature range is from -55°C to 175°C ensuring reliability in harsh environments.
- RoHS compliant and AEC-Q101 qualified, suitable for automotive and industrial applications.
- Designed for high-frequency switching, freewheeling, DC/DC converters, power factor correction, and snubber circuits.
- Offers very low profile with typical height of 0.65 mm, ideal for automated PCB assembly.
- Low leakage current improves efficiency in power management systems.
- Meets MSL level 1 per J-STD-020 standard, rated for 260°C peak lead-free soldering temperature.
Product Description
Vishay VS-1EQH01HM3/H is a surface mount general purpose rectifier and Schottky diode featuring a MicroSMP package type. It supports a maximum continuous forward current of 1 A and peak reverse repetitive voltage rating of 100 V, making it suitable for a wide range of power electronics applications.
This diode exhibits a low forward voltage drop of 0.72 V, helping to minimize conduction losses and reduce power dissipation. It can handle peak non-repetitive forward surge currents up to 30 A, ensuring resilience against transient conditions often found in industrial and automotive environments.
Operating over a broad temperature range from -55°C to 175°C, it meets stringent reliability demands. The VS-1EQH01HM3/H diode complies with the RoHS directive and is AEC-Q101 qualified, highlighting its suitability for automotive electronic applications.
Its ultra-low profile design, with a typical height of just 0.65 mm, enables easy use in automated SMT assembly lines and space-constrained boards. The diode is commonly used in high frequency switching circuits, freewheeling, DC/DC converter stages, power factor correction (PFC) circuits, and snubber networks.
Additional advantages include very low leakage current and meeting Moisture Sensitivity Level 1 requirements per J-STD-020, allowing for lead-free soldering up to 260°C peak temperature.
The diode's MicroSMP package optimizes PCB real estate usage. General purpose rectifier and Schottky diode for versatile electronic design. Reliable operation in automotive and industrial sectors. Low forward voltage drop minimizes power loss.
Supports surge currents up to 30 A. Wide temperature range from -55 to 175 °C. RoHS compliant and AEC-Q101 automotive standard qualified. Low profile and suitable for automated PCB manufacturing.
This product is part of Vishay's comprehensive portfolio of Schottky Diodes and Rectifiers, suitable for applications in industrial power management, automotive electronics, telecommunications, and general electronic devices. Explore EnvMart categories for more Vishay semiconductor components and related electronic parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating of this model is 100 V.
It can handle a maximum continuous forward current of 1 A.
The typical forward voltage drop is 0.72 V, which helps reduce power losses.
This diode supports a peak non-repetitive forward surge current of up to 30 A.
The operating temperature range is from -55°C to 175°C, ensuring reliability in harsh environments.
Yes, it is RoHS compliant and AEC-Q101 qualified, making it suitable for automotive applications.
It uses a MicroSMP package type, which is designed for surface mount applications.
This model is commonly used in high-frequency switching, freewheeling, DC/DC converters, power factor correction, and snubber circuits.
It meets Moisture Sensitivity Level 1 requirements per J-STD-020, allowing for lead-free soldering up to 260°C peak temperature.
The typical height of this model is 0.65 mm, making it suitable for space-constrained designs.
The diode configuration is single, which is standard for general purpose applications.
The country of origin for this diode is India.
