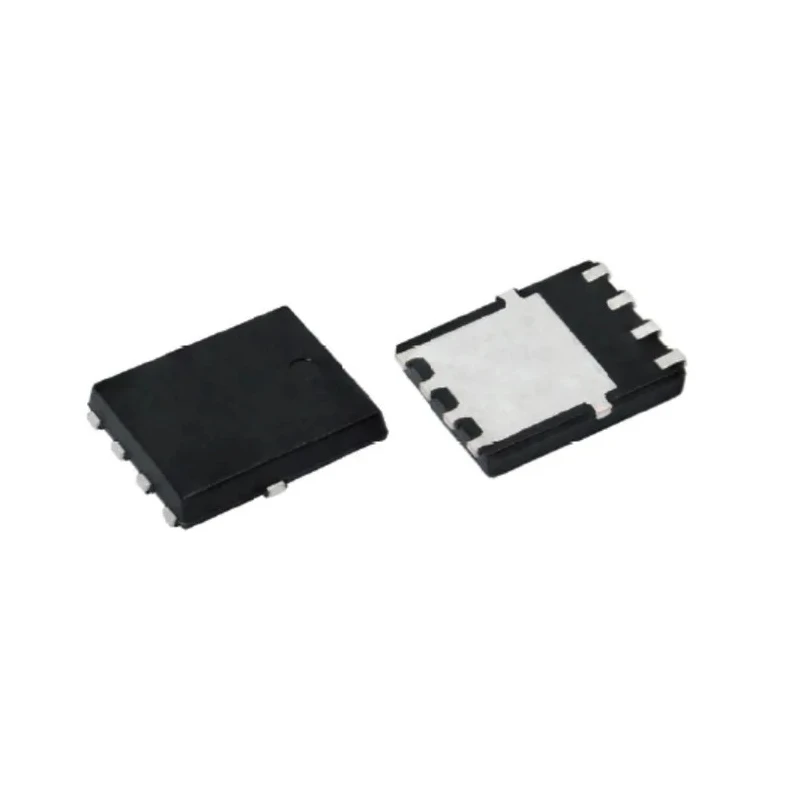

Vishay 45 V 20 A Surface Mount Schottky Diode 8-Pin FPAK V20KL45-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.09mm |
| Length | 6.35mm |
| Model | V20KL45-M3/H |
| Width | 5.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | FPAK |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 75mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- The diode uses Trench MOS Barrier Schottky technology for ultra-low forward voltage of 0.28 V at 5 A.
- Maximum continuous forward current is 20 A for sustained operation.
- Peak reverse repetitive voltage is 45 V, ensuring robust blocking capability.
- Designed for operation from -40°C up to 150°C ambient temperature range.
- Package dimensions are 6.35 mm length, 5.3 mm width, and 1.09 mm height.
- Meets automotive standard AEC-Q101 and is RoHS compliant.
- Peak non-repetitive forward surge current is 220 A for transient protection.
- The 8-pin FPAK surface mount package enables compact, high density PCB design.
Product Description
Vishay V20KL45-M3/H is a high current density surface mount Schottky diode utilizing Trench MOS Barrier Schottky technology, featuring an ultra-low forward voltage drop of 0.28 V at 5 A. It supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 45 V, making it ideal for efficient power rectification.
This diode is housed in an 8-pin FPAK package with compact dimensions of 6.35 mm length, 5.3 mm width, and 1.09 mm height, allowing for high density circuit board design and effective thermal management.
Operating temperature ranges from -40°C to 150°C, and it possesses a peak non-repetitive forward surge current rating of 220 A. The device meets RoHS environmental standards and automotive standard AEC-Q101, ensuring reliability and compliance for automotive and industrial applications.
Applications include use in low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits where low losses and high efficiency are critical.
The diode utilizes Trench MOS Schottky technology for superior efficiency. Ensures low forward voltage drop and minimal power loss during operation. Designed for demanding industrial and automotive power conversion systems.
Compact surface mount FPAK package supports modern PCB assembly techniques. Reliable operation under strict automotive qualification standards. Wide operating temperature range suitable for harsh environments. Peak surge current capability for transient protection.
Compliance with RoHS directives for environmental safety.
For engineers and designers seeking efficient Schottky diodes for power electronics, the Vishay V20KL45-M3/H offers high performance and reliability. Explore related semiconductor products and components on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 20 A.
The peak reverse repetitive voltage for this diode is 45 V.
This diode operates within a temperature range of -40°C to 150°C.
The package dimensions are 6.35 mm in length, 5.3 mm in width, and 1.09 mm in height.
The peak non-repetitive forward surge current rating is 220 A.
The forward voltage drop at 5 A is 0.28 V.
Yes, it meets the automotive standard AEC-Q101.
This model supports surface mounting.
The diode configuration is a single Schottky diode.
The maximum forward voltage for this diode is 0.6 V.
It is RoHS compliant, ensuring it meets environmental safety standards.
This diode is suitable for applications such as low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits.
