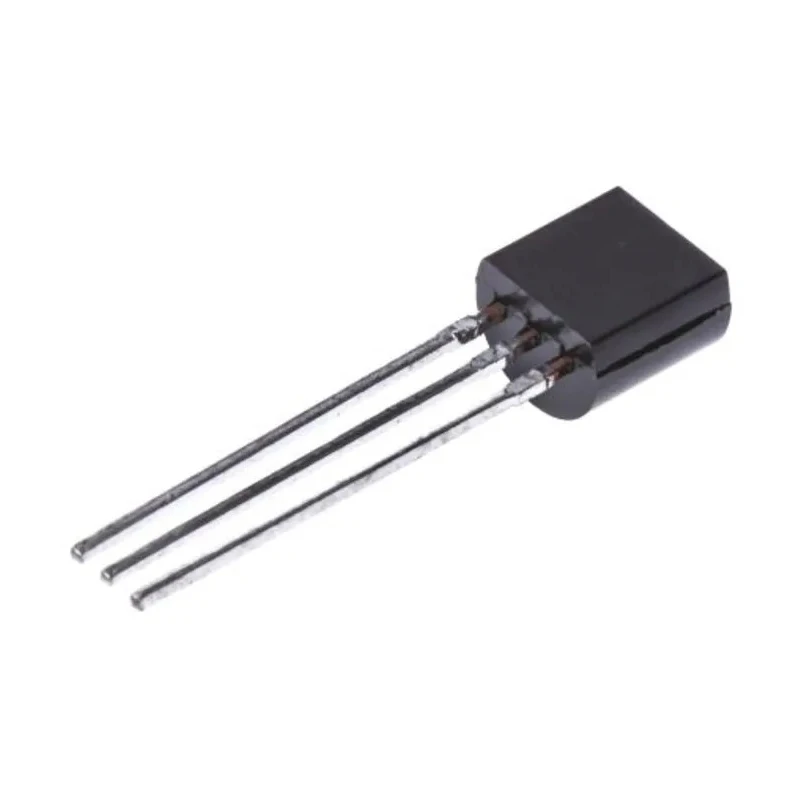

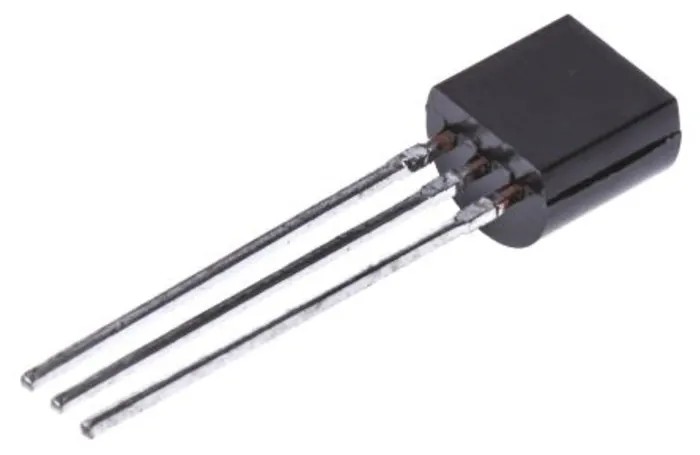

onsemi MOSFET Type N Channel 0.5 A 60 V 3-Pin TO-92 Package BS170

onsemi BS170 MOSFET Type N Channel 0.5 A 60 V 3-Pin TO-92 Package is a small signal transistor widely used in electronic circuits requiring low voltage switching and amplification. It supports a maximum continuous drain current of 500 mA and a drain-source voltage rating of 60 V, making it suitable for many general purpose applications with moderate power requirements.

The TO-92 package ensures easy mounting on standard through-hole PCBs with three pins allowing straightforward integration. This MOSFET provides reliable performance over a broad temperature range from -55°C to 150°C, which is ideal for industrial, laboratory, and automotive prototype usage where temperature variations occur.

Featuring a maximum power dissipation of 350 mW and a low maximum drain-source resistance of 5 Ω, it offers efficient switching and minimal losses in low power circuits. Its single-element chip design aids in clean signal control and discrete semiconductor uses.

This device is well suited for diverse electronics applications including signal switching, amplification, and power management within embedded and experimental setups. Its compact dimensions of 4.32 mm length, 5.2 mm height, and 3.18 mm width make it compatible with dense PCB layouts.

Small signal transistor with 0.5 A drain current capacity. 3-pin TO-92 through-hole package for easy mounting. Low drain-source resistance enhances efficiency. Stable operation over wide temperature range (-55°C to 150°C).

Compact size fits versatile PCB applications. Suitable for general electronics, automotive prototyping, and laboratory use. Explore our Semiconductor category for more on MOSFETs and discrete electronic components at EnvMart.
