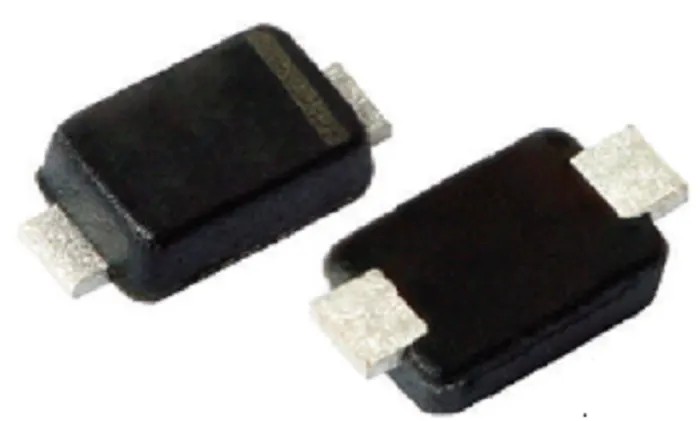

Vishay 1, 6.27 V Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ6V2B-HG3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1, 6.27 V Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ6V2B-HG3_A/H

Name: Vishay 1, 6.27 V Zener Diode Single 500 mW Surface Mount DO-219AC (MicroSMF) PLZ6V2B-HG3_A/H
Brand: Vishay
SKU: 110937
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.6mm
Length	2.5mm
Model	PLZ6V2B-HG3_A/H
Mount Type	Surface
Series	PLZ
Maximum Operating Temperature	150°C
Package Type	DO-219AC (MicroSMF)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	6.27V
Zener Type	General Purpose
Maximum Zener Impedance	10Ω

Key Features

This diode features a low leakage current for improved efficiency.
It is housed in a compact DO-219AC (MicroSMF) package, suitable for space-constrained applications.
The Zener diode provides excellent stability over its operating temperature range from -55°C to 150°C.
Test current is set at 20 mA, ensuring performance reliability under nominal operating conditions.
Compliance with IEC 61760-1, IEC 61000-4-2 standards and RoHS certified.
Automotive grade quality certified to AEC-Q101 standard.
Designed for general purpose Zener applications in electronics and power supply regulation.
MicroSMF package allows for wave and reflow soldering with high soldering temperature tolerance of 260°C.

Product Description

Vishay PLZ6V2B-HG3_A/H is a general purpose single Zener diode with nominal Zener voltage of 6.27 V. It is optimized for surface mount technology using the low profile DO-219AC (MicroSMF) package, providing a compact footprint with 2 pins.

This diode supports a maximum power dissipation of 500 mW, ensuring stable voltage regulation in electronic circuits. Operating over a wide temperature range from -55°C to 150°C, it is engineered for industrial and automotive applications requiring reliable voltage reference and voltage clamp functions.

The PLZ series offers low reverse leakage current and a maximum Zener impedance of 10 Ω, giving superior stability and low power loss. The diode test current is 20 mA, optimized for accuracy and functional robustness.

Manufactured following IEC standards and RoHS compliant, it is also certified to AEC-Q101, making it suitable for automotive environments. The MicroSMF package supports wave and reflow soldering processes with terminal soldering temperature up to 260°C for 10 seconds, enabling efficient manufacturing and assembly.

Low leakage current for efficient power management. Compact DO-219AC (MicroSMF) surface mount package. Wide operating temperature range from -55°C to 150°C. Compliance with IEC 61760-1 and IEC 61000-4-2 standards. Automotive AEC-Q101 certified quality.

High temperature soldering capability at terminals. Suitable for electronics, automotive, and power supply applications.

This Vishay Zener diode is a reliable component for electronic and semiconductor assembly, ideal for use in voltage stabilization, regulation circuits, and protection devices in industrial, laboratory, HVAC, and automotive sectors.
