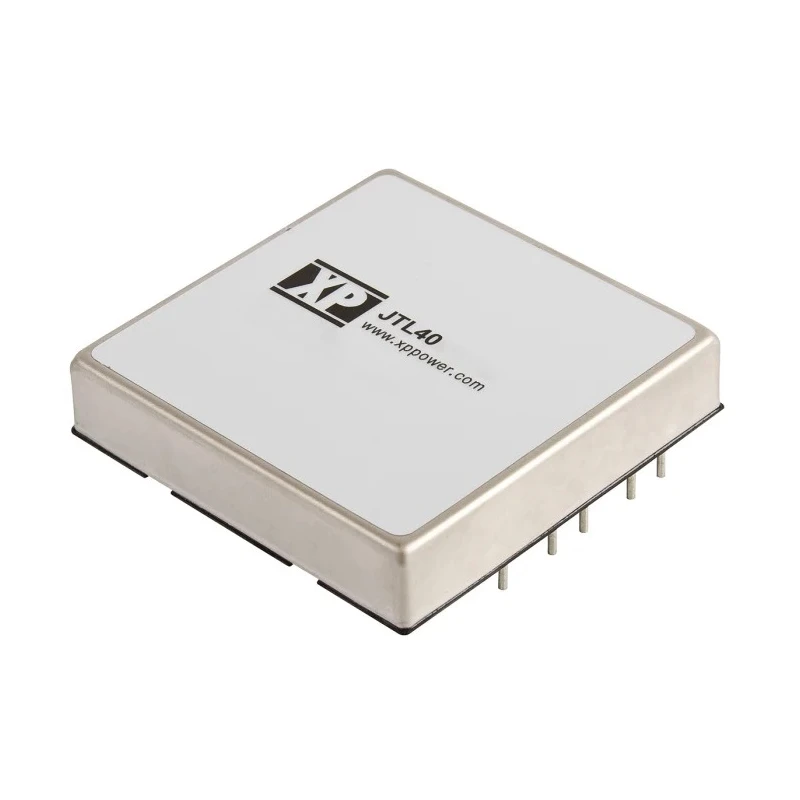

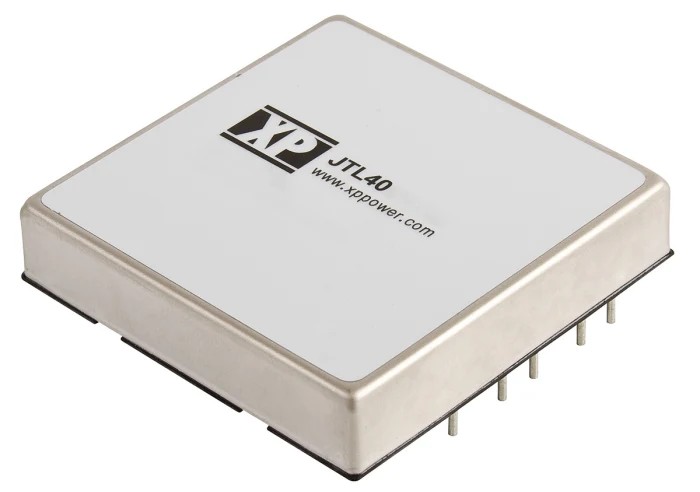

XP Power DC/DC Converter, 12 V DC Output, 3.35 A, 36 V DC Input, 40 W, Through Hole Package JTL4024S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTL DC/DC Converter, 12V dc/ 3 |
| Brand | XP Power |
| Efficiency | 90% |
| Length | 50.8mm |
| Model | JTL4024S12 |
| Depth | 10.2mm |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | JTL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 150000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 3.35A |
| Output Voltage Adjustment Range | 9/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Wide input voltage range from 9 V to 36 V DC for versatile applications.
- High isolation voltage of 1.6 kV DC ensuring safety and noise reduction.
- Compact dimensions of 50.8 mm length, 50.8 mm width, and 10.2 mm depth.
- Operating temperature range from -40 °C to 85 °C for reliable performance in harsh environments.
- High efficiency of up to 90% minimizing energy loss.
- Single output configuration with remote on/off functionality.
- Designed for board mounting using through hole technology.
- MTBF of 150,000 hours for exceptional reliability.
Product Description
XP Power JTL4024S12 is a highly reliable 40 W isolated DC/DC converter designed for industrial and electronic applications requiring a stable 12 V DC output with up to 3.35 A current. It supports a wide input voltage range from 9 V to 36 V DC, making it suitable for systems with varied power sources.
Featuring an industry standard DIP package with through hole technology, it ensures easy PCB mounting. The device provides a high isolation voltage of 1.6 kV DC which protects sensitive circuitry from high voltage spikes and reduces electromagnetic interference.
The converter operates efficiently up to 90%, minimizing energy loss and heat generation, and is capable of functioning reliably in extreme temperatures from -40 °C to +85 °C. Its high MTBF rating of 150,000 hours reflects its robust build quality and longevity for continuous industrial use.
Additionally, the JTL4024S12 offers remote on/off settings, allowing flexible control in complex systems. Its compact dimensions of 50.8 mm by 50.8 mm by 10.2 mm contribute to saving space on circuit boards.
Wide input voltage 9 V to 36 V DC supports diverse power conditions. High isolation voltage of 1.6 kV DC for safety and interference mitigation. High efficiency up to 90% lowers power consumption. Operating temperature range from -40 °C to 85 °C for harsh environment resilience.
Through hole DIP package with 8 pins for standard PCB mounting. Single output delivering 12 V DC at 3.35 A. MTBF of 150,000 hours ensures dependable long-term operation. Compact size and remote on/off enable flexible installation and operation.
This DC/DC converter is ideal for industrial electronics, power supplies, telecommunications, instrumentation, and control systems that require efficient voltage conversion with isolation. XP Power is recognized for high-quality power components, and the JTL series is engineered to meet demanding operational environments.
Explore more XP Power DC/DC Converters and related power supply components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 12 V DC with a maximum output current of 3.35 A.
It supports a wide input voltage range from 9 V to 36 V DC, allowing it to accommodate various power sources.
The converter operates with an efficiency of up to 90%, minimizing energy loss during operation.
This unit has compact dimensions of 50.8 mm in length, 50.8 mm in width, and 10.2 mm in depth.
It features a high isolation voltage of 1.6 kV DC, which helps protect sensitive circuitry from high voltage spikes.
The converter can operate reliably in temperatures ranging from -40 °C to +85 °C, making it suitable for harsh environments.
This model is designed for board mounting using through hole technology, ensuring easy installation on PCBs.
It has a Mean Time Between Failures (MTBF) rating of 150,000 hours, indicating its reliability for long-term operation.
Yes, this model includes remote on/off functionality, allowing for flexible control in complex systems.
The JTL4024S12 is packaged in an industry-standard DIP (Dual In-line Package) format with 8 pins.
It is ideal for industrial electronics, power supplies, telecommunications, instrumentation, and control systems requiring efficient voltage conversion.
The maximum input voltage for the JTL4024S12 is 36 V DC, ensuring compatibility with various power sources.
