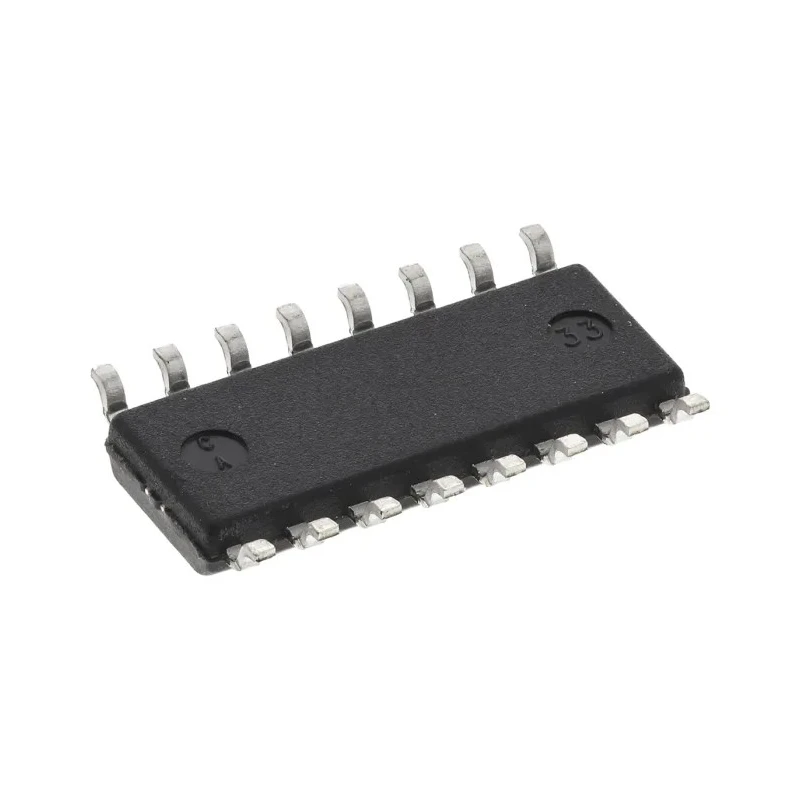

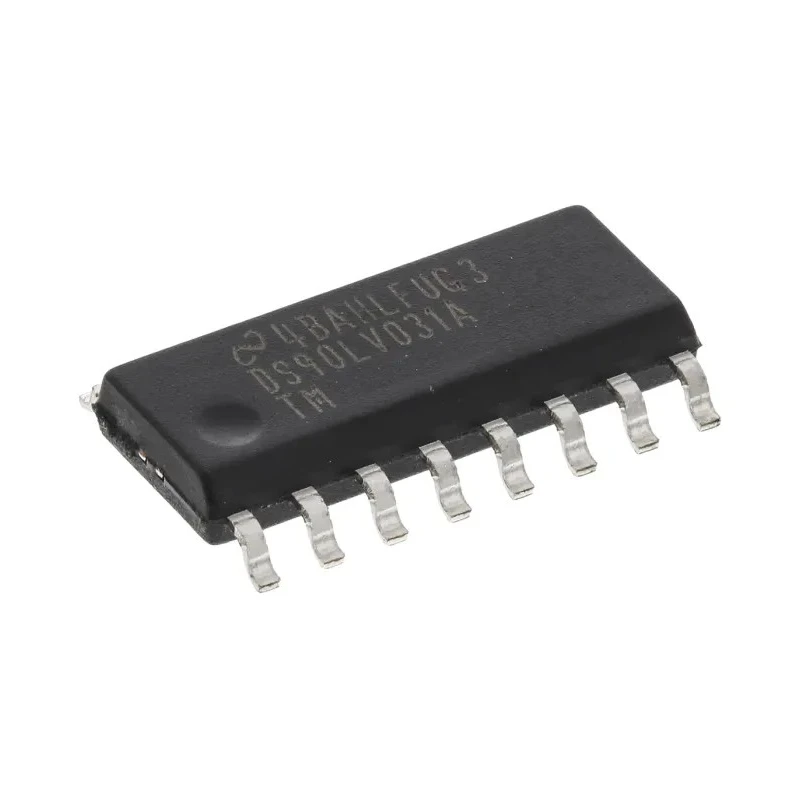

Texas Instruments Transmitter IC 4 TTL CMOS LVDS 16-Pin SOIC DS90LV031ATM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 9.91mm |
| Model | DS90LV031ATM/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90LV031 |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 400Mbps |
Key Features
- Compatible with TTL and CMOS input types ensuring versatile connectivity.
- Includes 4 drivers and 4 receivers per chip for differential line communication.
- Surface mount type with a standard SOIC 16-pin package for PCB integration.
- Operates on a supply voltage range from 3 V to 3.6 V for stable power management.
- Operational temperature range from -40°C to 85°C suitable for harsh environments.
- Provides Electrostatic Discharge (ESD) protection enhancing device reliability.
- Physical dimensions include 9.91 mm length and 1.45 mm height for compact circuit design.
- Designed without automotive certification; suitable for general industrial and electronic applications.
Product Description
Texas Instruments DS90LV031ATM/NOPB is a high-performance LVDS (Low Voltage Differential Signaling) transmitter IC designed to handle 4 TTL and CMOS input signals with differential LVDS outputs. This 16-pin SOIC package device operates efficiently at a transmission data rate of 400 Mbps, ideal for applications requiring high-speed data communication with low electromagnetic interference.
The device integrates 4 drivers and 4 receivers within a single chip, facilitating differential line transmissions over twisted-pair copper cables. It supports a power supply voltage between 3 V and 3.6 V, making it compatible with standard logic level supplies in various electronic circuits.
Operating temperature range from -40°C to 85°C and built-in ESD protection enhance its reliability for industrial, laboratory, and commercial electronics. Its surface mount SOIC package with dimensions of approximately 9.91 mm in length and 1.45 mm in height allows compact PCB layout designs, making it suitable for embedded system manufacturers and communication hardware developers.
Applications include use in interfaces such as Firewire, SATA, and SCSI Ide for data transmission where reduced power consumption and noise immunity are critical. The LVDS technology provides high-speed signaling for electronic components in industrial machines and instruments.
Compatible with TTL and CMOS logic input types for flexible wiring. Includes 4 differential line drivers and 4 receivers per chip for versatile interface design. Designed for 400 Mbps data rate transmissions ensuring fast communication.
Surface mount mount type with standard 16-pin SOIC package facilitates PCB assembly. Wide operating temperature range -40°C to 85°C supports industrial environments. ESD protection incorporated to protect against electrostatic discharge damage.
Compact physical size aids in high-density electronics design and fabrication.
This transmitter IC is new and made with quality standards by Texas Instruments. It is ideal for use in electronics components, power & connectors, semiconductor applications and interface ICs involving LVDS signaling. For professional users seeking reliable, high-speed data transmission ICs, this product offers a robust solution. Browse more LVDS Interface IC options and Texas Instruments products at EnvMart for enhanced purchasing experience.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DS90LV031ATM/NOPB supports a maximum data transmission rate of 400 Mbps, making it suitable for high-speed data communication applications.
It operates on a supply voltage range from 3 V to 3.6 V, ensuring compatibility with standard logic level supplies.
This model is compatible with TTL and CMOS input types, allowing versatile connectivity in various electronic circuits.
The operational temperature range for the DS90LV031ATM/NOPB is from -40°C to 85°C, making it suitable for harsh industrial environments.
It includes 4 drivers and 4 receivers per chip, facilitating differential line communication.
The dimensions of this surface mount IC are approximately 9.91 mm in length and 1.45 mm in height, allowing for compact PCB designs.
It comes in a standard SOIC (Small Outline Integrated Circuit) package, which is suitable for surface mounting on PCBs.
Yes, it incorporates Electrostatic Discharge (ESD) protection to enhance device reliability.
It is suitable for use in interfaces such as Firewire, SATA, and SCSI IDE, where reduced power consumption and noise immunity are critical.
The DS90LV031ATM/NOPB has a pin count of 16, facilitating its integration into various electronic systems.
This model is part of the DS90LV031 series, which is designed for low voltage differential signaling applications.
No, this transmitter IC is not designed with automotive certification and is intended for general industrial and electronic applications.
