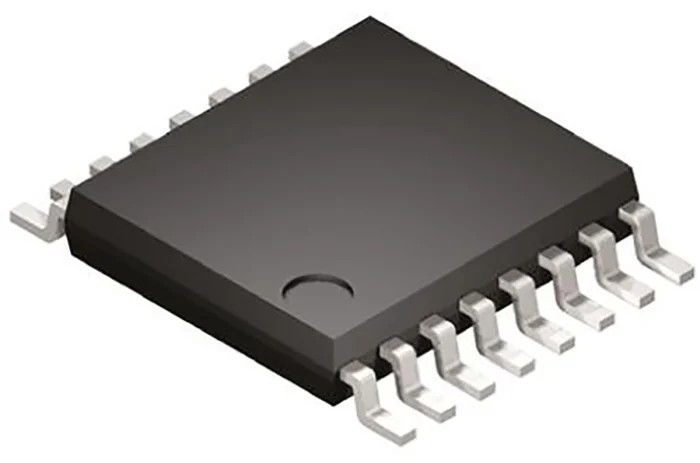

Texas Instruments Transmitter IC 4 TTL, CMOS LVDS 400 Mbps, Surface Mount, 16-Pin TSSOP DS90LV031ATMTC/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 5mm |
| Model | DS90LV031ATMTC/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90LV031A |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 400Mbps |
Key Features
- Features 4 drivers and 4 receivers per chip for balanced transmission.
- Input type compatible with TTL and CMOS logic levels.
- Surface mount package with 16-pin TSSOP form factor for compact design integration.
- Operates within a voltage range from 3 V to 3.6 V with ESD protection included.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Chip length of 5 mm and height of 900 μm to fit modern PCB layouts.
- Designed for high-speed differential LVDS signaling to reduce noise and power consumption.
- Applicable in industrial, communication, and data transmission systems.
Product Description
Texas Instruments DS90LV031ATMTC/NOPB is a transmitter IC designed for high-speed data communication using low-voltage differential signaling (LVDS). This device integrates 4 drivers and 4 receivers, facilitating balanced, high-speed differential line transmission suitable for professional industrial and commercial electronics.
The IC supports TTL and CMOS input logic, ensuring broad compatibility across various systems. Packaged in a compact 16-pin TSSOP surface mount, it offers ease of integration in dense PCB layouts. Operating voltages range from a minimum of 3 V to a maximum of 3.6 V, with built-in ESD protection to enhance device reliability and longevity.
Engineered to function efficiently in harsh conditions, it supports operating temperatures between -40°C to 85°C. Its physical dimensions include a length of 5 mm and height of 900 μm, appropriate for modern compact electronics designs.
The differential line drivers and receivers enable low-voltage differential signaling communication, which minimizes noise interference and power consumption at data transmission speeds up to 400 Mbps. This makes it ideal for applications such as Firewire, SATA, and SCSI interfaces among others, commonly used in industrial, laboratory, and telecommunications settings.
Features 4 TTL and CMOS compatible drivers with LVDS outputs. Surface mount 16-pin TSSOP package ensured for space-saving. Operates from 3 V up to 3.6 V supply voltage for flexible power options. Wide temperature range from -40°C to 85°C for industrial suitability.
ESD protection included for enhanced device durability. Transmission data rate capped at 400 Mbps for high-speed interfacing. Compact dimension of 5 mm length and 900 μm height. RoHS compliant for environmental standards adherence.
Fits applications in diverse sectors including industrial and communication. Supports high-speed, low-noise differential signaling communications. It fulfills the needs of high-speed differential signaling with robustness suitable for various industrial and commercial interface IC applications.
Explore our broad selection of semiconductor components and interface ICs for your industrial and electronic projects here at EnvMart.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this transmitter IC is 400 Mbps, enabling high-speed communication suitable for various applications.
This model operates within a voltage range from 3 V to 3.6 V, providing flexibility for different power supply configurations.
The IC features 4 drivers and 4 receivers per chip, allowing for balanced transmission and effective data communication.
It is compatible with TTL and CMOS input logic levels, ensuring broad applicability across various electronic systems.
The dimensions of this model are a length of 5 mm and a height of 900 μm, making it suitable for compact PCB layouts.
This unit is packaged in a 16-pin TSSOP surface mount format, which facilitates easy integration into dense electronic designs.
The operating temperature range is from -40°C to 85°C, making it suitable for use in diverse environmental conditions.
Yes, it includes built-in ESD protection to enhance device reliability and longevity during operation.
This transmitter IC is applicable in industrial, communication, and data transmission systems, including interfaces like Firewire, SATA, and SCSI.
The output type of this model is LVDS (Low-Voltage Differential Signaling), which minimizes noise and power consumption during data transmission.
This IC integrates 4 elements per chip, comprising both drivers and receivers for efficient data communication.
Yes, the DS90LV031ATMTC/NOPB is RoHS compliant, adhering to environmental standards for electronic components.
