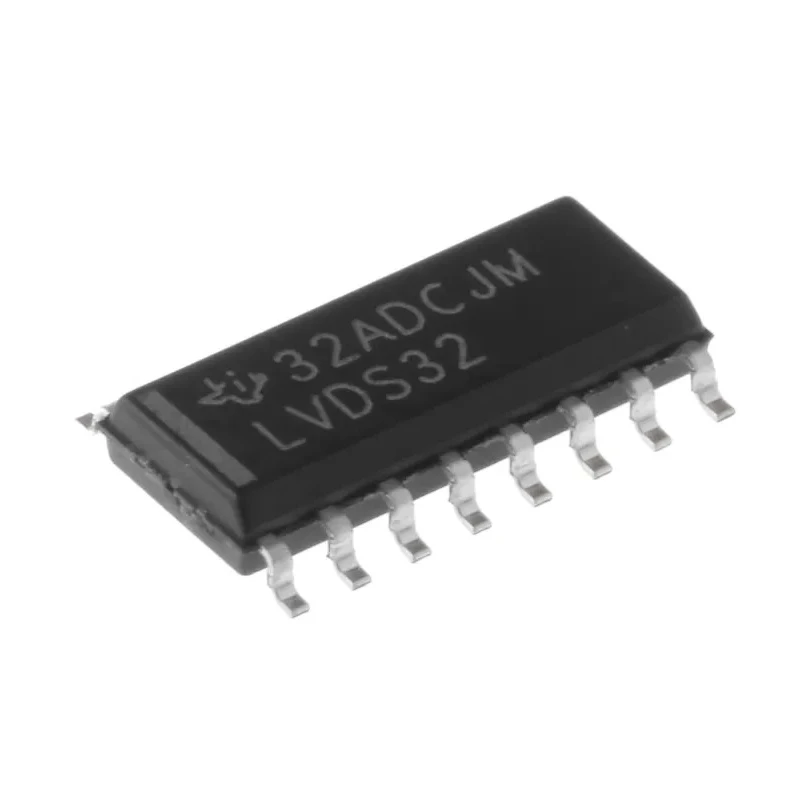

Texas Instruments Receiver IC 4 LVDS LVTTL, 16-Pin SOIC SN65LVDS32D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 9.9mm |
| Model | SN65LVDS32D |
| Mount Type | Surface |
| Output type | LVTTL |
| Series | SN65LVDS32 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Receiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 100Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Integrates 4 LVDS drivers and 4 LVDS receivers in a single package.
- Supports transmission data rate up to 100 Mbps for reliable high-speed communication.
- Utilizes a 16-pin SOIC surface mount package suitable for compact PCB assembly.
- Operates over a wide supply voltage range of 3 V to 3.6 V for low power consumption.
- Features differential input high/low threshold voltages of ±100 mV for precise signal detection.
- Designed with extended temperature range from -40°C to 85°C for industrial reliability.
- Complies with RoHS standards ensuring environmental safety.
- Includes ESD protection to safeguard against electrostatic discharge damage.
Product Description
Texas Instruments SN65LVDS32D is a receiver integrated circuit featuring 4 LVDS drivers and 4 LVDS receivers housed in a compact 16-pin SOIC surface mount package. It supports a transmission data rate up to 100 Mbps using low voltage differential signaling (LVDS) technology, compliant with the TIA/EIA-644 standard. Operating at a supply voltage range of 3 V to 3.6 V, this IC enables low power consumption while maintaining high signal integrity across twisted-pair copper cables. Its differential input voltage thresholds of ±100 mV facilitate accurate data reception.
The device is designed for industrial applications requiring robust performance, functioning reliably within a temperature range of -40°C to 85°C. Enhanced with ESD protection features, it ensures durable operation in demanding environments. The 16-pin SOIC package allows easy surface mounting on modern circuit boards, supporting compact design constraints. RoHS compliance reflects its adherence to environmental and safety regulations.
Typical applications include Flat Panel Display (FPD) interfaces, FlatLink and FPDP-Link serializer/deserializer designs, and other high-speed digital data communication systems requiring LVDS to LVTTL conversion. This IC supports 24-bit data links operating at frequencies up to 85 MHz, making it suitable for demanding video and data transmission tasks.
Integrates both LVDS drivers and receivers for versatile signal handling. Surface mount SOIC package simplifies PCB design and assembly. Wide operating temperature range ensures suitability for industrial usage. Low power consumption with 3.3 V supply voltage operation.
Compliant with industry-standard LVDS signaling protocols. Built-in electrostatic protection enhances device reliability. Optimized for high-speed data transmissions up to 100 Mbps. Compact form factor with height 1.58 mm and length 9.9 mm.
Contains 16 pins allowing multiple signal and power connections.
Explore more high-quality semiconductor products like the Texas Instruments SN65LVDS32D and other LVDS Interface Ics in the Semiconductors category at EnvMart for advanced industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LVDS32D supports a maximum transmission data rate of 100 Mbps, enabling reliable high-speed communication.
It operates over a supply voltage range of 3 V to 3.6 V, allowing for low power consumption during operation.
This model is designed to function reliably within an extended temperature range of -40°C to 85°C, making it suitable for industrial applications.
The SN65LVDS32D integrates 4 LVDS drivers and 4 LVDS receivers in a single package, facilitating versatile signal handling.
This model comes in a 16-pin SOIC surface mount package, which is suitable for compact PCB assembly.
It features differential input high and low threshold voltages of ±100 mV, which aids in precise signal detection.
Yes, it complies with RoHS standards, ensuring that it meets environmental safety regulations.
The output type of this model is LVTTL, which is compatible with various digital systems.
The dimensions of this IC are 1.58 mm in height and 9.9 mm in length, making it compact for various applications.
Typical applications include Flat Panel Display (FPD) interfaces, FlatLink and FPDP-Link serializer/deserializer designs, and other high-speed digital data communication systems.
It includes built-in ESD protection to safeguard against electrostatic discharge damage, enhancing its reliability in demanding environments.
This receiver IC features a total of 16 pins, allowing for multiple signal and power connections.
