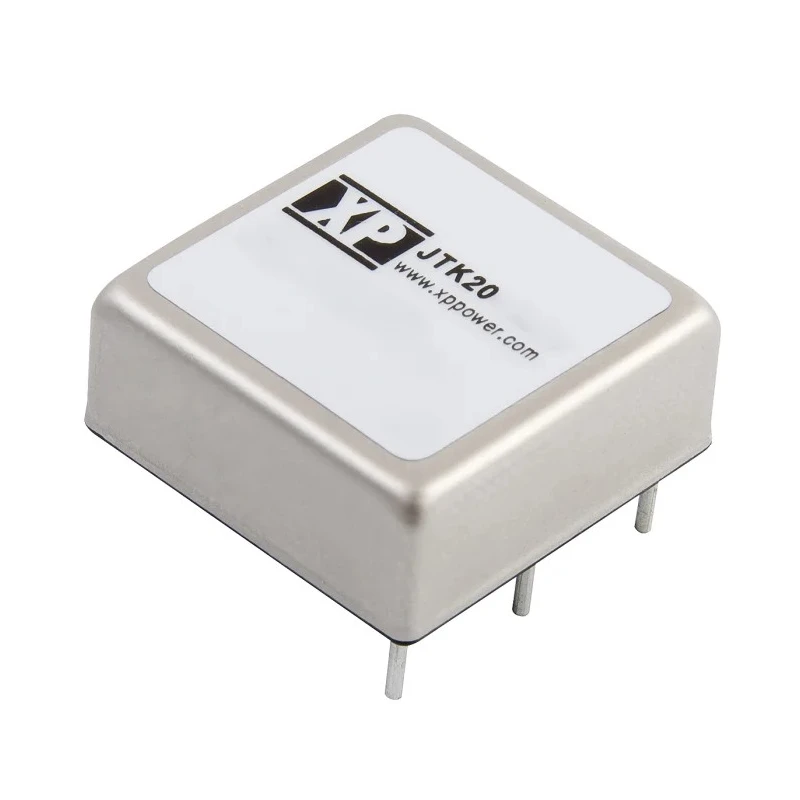

XP Power JTK DC/DC Converter 12V DC 600mA 36V DC Input 18V Input 20W Through Hole 85°C Max Temp -40°C Min JTK2024S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTK DC/DC Converter, 12V dc/ 600 mA, 36V |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 25.4mm |
| Model | JTK2024S12 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTK |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 4 | 1 input range |
Key Features
- Isolated DC/DC converter with 20W maximum output power.
- Operates with 18V - 36V DC input range and delivers up to 600mA output current.
- Industry standard SIP package with 7 pins for easy board mounting.
- High isolation voltage of 1.6kV DC ensures electrical safety.
- Wide operating temperature range from -40°C to 85°C.
- Efficiency rated at 85% for energy-saving performance.
- Single output design suitable for industrial and laboratory applications.
Product Description
The XP Power JTK2024S12 DC/DC Converter offers a reliable and efficient solution for board-level power conversion in industrial, laboratory, and commercial electronics. Providing a regulated 12V DC output at up to 600mA from input voltages between 18V and 36V DC, this module is built upon XP Power's JTK series known for robust performance and high reliability.
This converter achieves up to 20W output power, featuring high isolation at 1.6kV DC to safeguard sensitive components and promote system longevity. It is constructed in a 7-pin SIP package, simplifying through-hole installation for custom PCBs or retrofit designs. Its compact form factor (25.4mm x 25.4mm x 9.9mm) allows integration into tight spaces within electronic assemblies.
Efficiency is rated at 85%, minimizing energy losses and heat generation under load. The device is suited for a broad ambient temperature range of -40°C to 85°C, making it ideal for demanding environments such as manufacturing plants, field instrumentation, and laboratory analysis equipment. The MTBF is specified at 1,100,000 hours for reliable long-term operation.
Safety features include a wide 2:1 input ratio, high voltage isolation, and a single-output design ideal for stable power supply to critical circuitry. Its board-mount design targets high-density layouts and is compatible with industry standard practices.
Typical applications encompass industrial automation, laboratory instrumentation, communications hardware, precision controls, and embedded systems needing isolated, regulated DC power.
Explore more board-level DC-DC Converters and industrial power solutions from XP Power and related converters in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC and can deliver up to 600mA of output current.
The JTK2024S12 operates with an input voltage range of 18V to 36V DC.
The maximum output power of this unit is 20W.
It has an efficiency rating of 85%, which helps minimize energy losses during operation.
This model has dimensions of 25.4mm x 25.4mm x 9.9mm.
The isolation voltage of the JTK2024S12 is 1.6kV DC, ensuring electrical safety for sensitive components.
It operates effectively within a temperature range of -40°C to 85°C.
This unit features a through-hole mounting type, allowing for easy board installation.
The mean time between failures (MTBF) for this converter is specified at 1,100,000 hours.
This converter is suitable for industrial automation, laboratory instrumentation, communications hardware, and embedded systems requiring isolated DC power.
This model has a single output design.
The input ratio for this converter is 2:1, accommodating a wide input voltage range.
