Hirose DF17 Series Straight Surface PCB Header, 70 Contacts, 0.5 mm Pitch, 2 Row, Shrouded DF17

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF17 Series Straight Surface PCB Header, 70 Contacts, 0.5 mm Pitch, 2 Row, Shrouded DF17

Name: Hirose DF17 Series Straight Surface PCB Header, 70 Contacts, 0.5 mm Pitch, 2 Row, Shrouded DF17
Brand: Hirose
SKU: 144971
Price: 2.13 USD
Availability: InStock



Category PCB Header Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF17
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Copper
Series	DF17
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	70
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Compact 0.5 mm pitch ensures a high-density, space-saving PCB connection.
Seventy gold-plated phosphor copper contacts provide excellent conductivity and corrosion resistance.
Shrouded housing protects contacts and mating connections from damage.
Designed for surface mount with a straight orientation to facilitate PCB assembly.
Supports currents up to 300mA and voltages up to 50V for low power applications.
Robust polyamide housing withstands temperatures from -35°C to 85°C for diverse environments.
Mounting bosses enhance PCB stability and mechanical stress protection.
Shock proof structure suitable for portable and mobile equipment.

Product Description

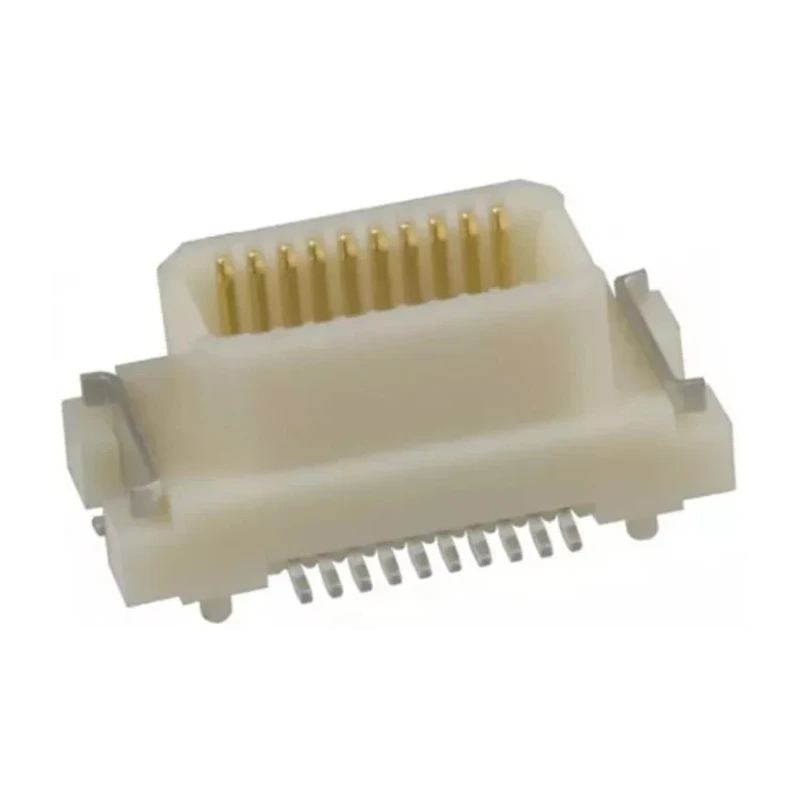

Hirose DF17 Series Straight Surface PCB Header DF17 is a precision-engineered board-to-board connector designed for compact electronic assembly requiring high contact density. Featuring 70 male contacts arranged in 2 rows with a pitch of 0.5 mm, this shrouded surface mount header assures robust and secure PCB connections.

The header incorporates gold-plated phosphor copper contacts housed within a durable polyamide body. The shrouded shell offers protection from mechanical damage, reducing the risk of connector breakage during handling or in high-vibration environments. The straight orientation facilitates easy soldering and integration into printed circuit boards.

This series is rated for currents up to 300 mA and a voltage rating of 50 V, making it ideal for low power electronic applications such as mobile phones, hand-held devices, and LCD equipment. Its operating temperature range from -35°C to 85°C ensures reliable performance under varied environmental conditions.

The design features robust metal fittings and mounting bosses for increased stability on the PCB and resistance to mechanical stresses. The shock proof construction ensures the connector maintains electrical continuity even after impacts, which is critical for portable electronics.

Compact 0.5 mm pitch for high-density connections. Gold-plated phosphor copper contacts for conductivity and corrosion protection. Shrouded housing and scoop-proof contact design enhance durability. Surface mount technology enables efficient PCB assembly.

Robust construction suitable for mobile and portable devices. Operating temperature range from -35°C to 85°C. Supports 300 mA current and 50 V voltage. Mounting bosses for enhanced PCB stability. Shock proof structure to withstand mechanical impacts.

This Hirose DF17 PCB Header is an excellent choice for engineers seeking reliable board-to-board connections in compact electronic equipment. It supports design needs in telecommunications, consumer electronics, and LCD display industries.
